Click to enlarge image 1_disegno-tecnico_CG-B_ok.jpg

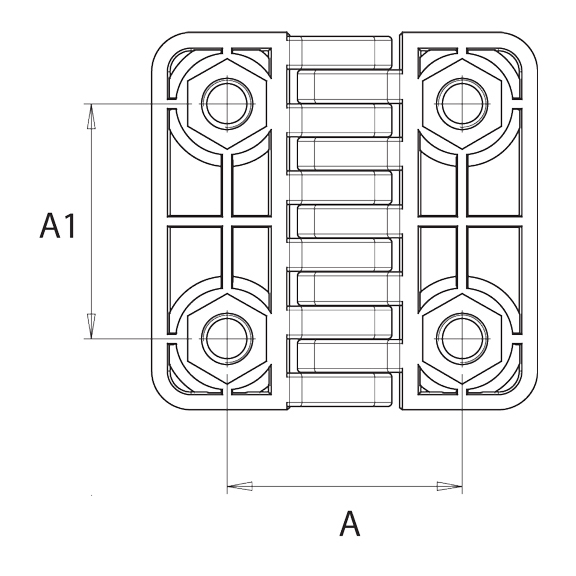

  • Click to enlarge image 1_disegno-tecnico_CG-B_ok.jpg

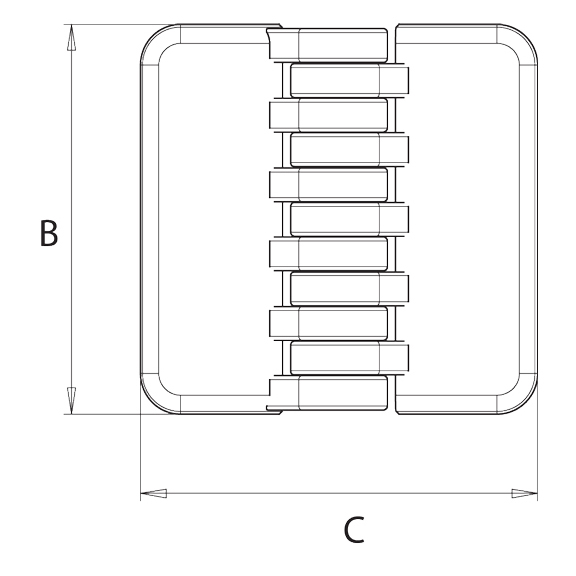

  • Click to enlarge image 2_disegno-tecnico_CG-B_ok.jpg

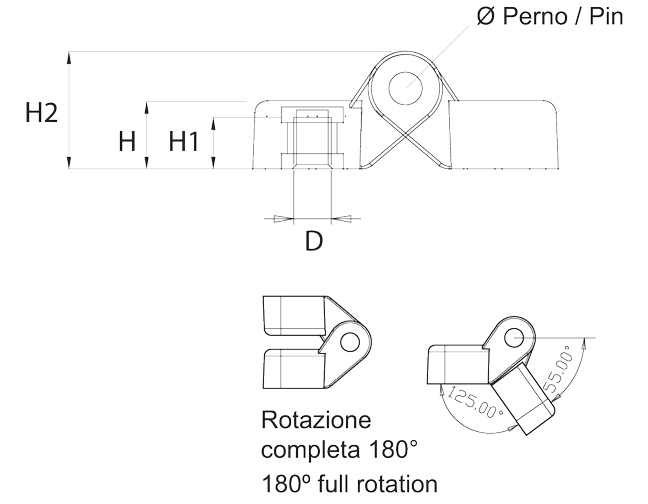

  • Click to enlarge image 3_disegno-tecnico_CG-B_ok.jpg

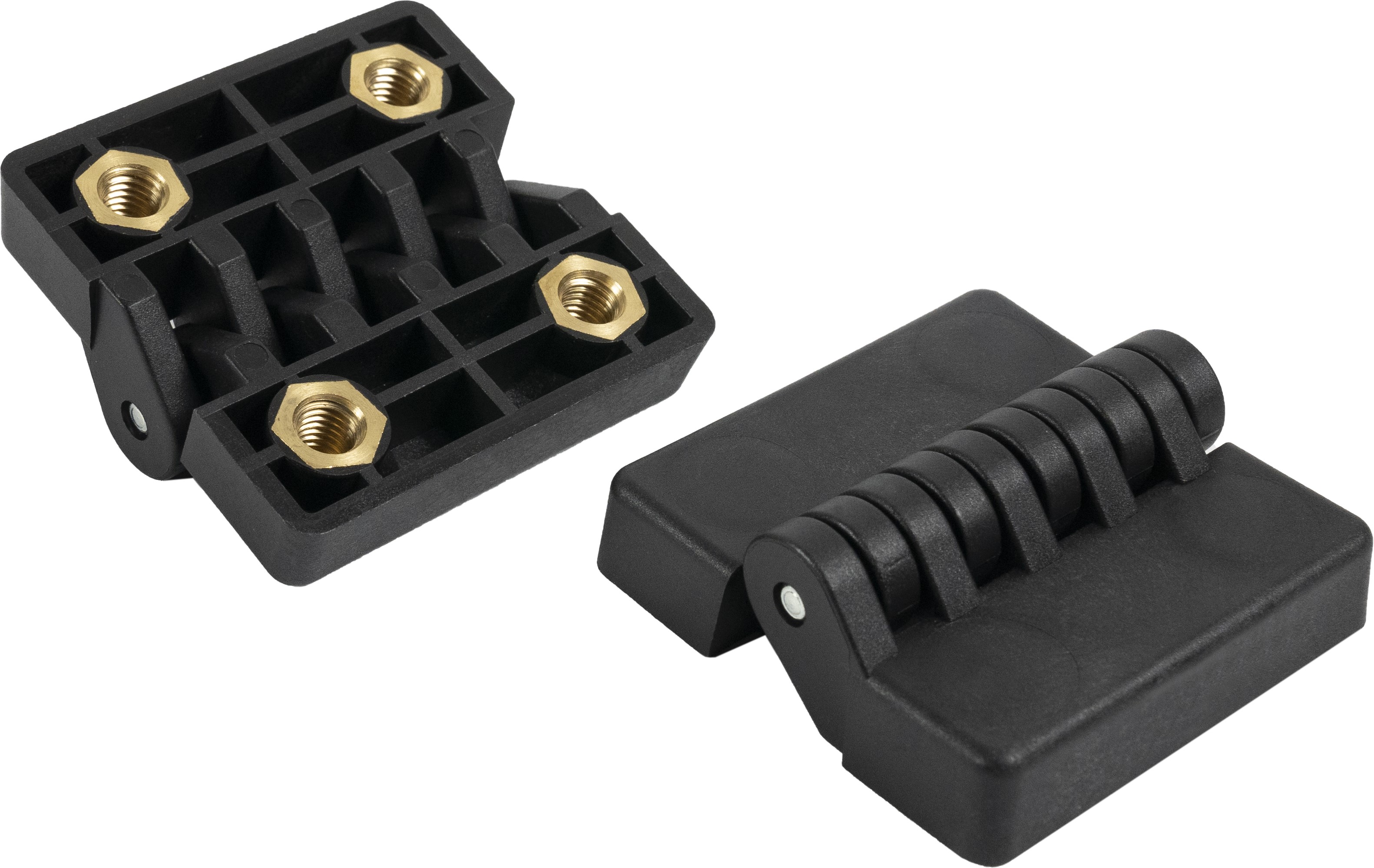

  • Click to enlarge image CGB pag.98.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/hinges-and-accessories/cg-b-nylon-hinge-with-threaded-brass-bushing.html#sigProId39edd602c1
Download Technical Sheet

Compo

Hinges and Accessories

CG/B
Nylon Hinge with Threaded Brass Bushing

Product specification

MATERIAL: Fiberglass reinforced black nylon



COD. A A1 B C D H1 H H2 Ø Pin Q.ty
A3CG40/B 25 25 39,5 38,5 04MA 4,5 9,5 14,5 3 24
A3CG48/B5 30 30 48 49 05MA 8,5 11 19 5 24
A3CG48/B6 30 30 48 49 06MA 8,5 11 19 5 24
A3CG65/B6 40 40 65 64 06MA 8,5 13,5 23 5 24
A3CG65/B8 40 40 65 64 08MA 10 13,5 23 5 24
A3CG98/B 62,5 59,5 96,5 97,5 10MA 13 20,5 35 8 8





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
