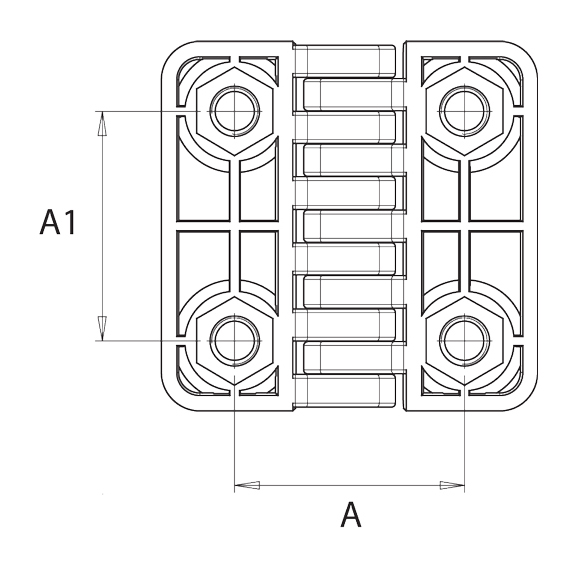

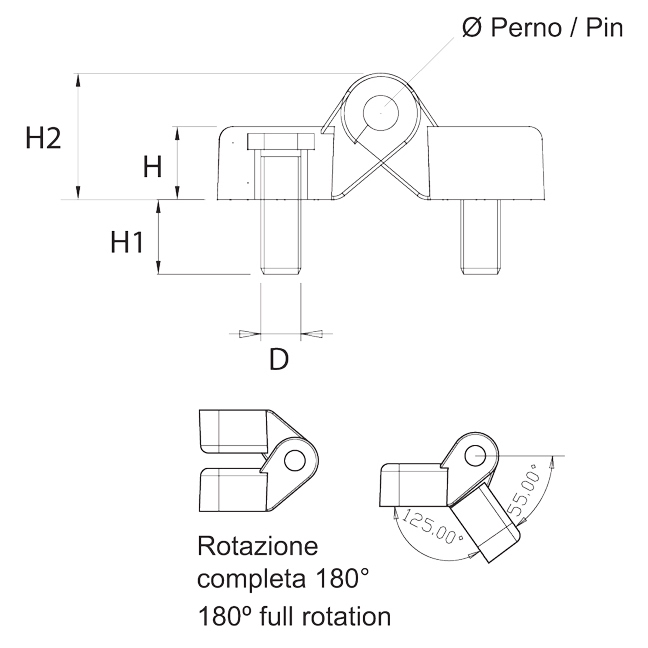

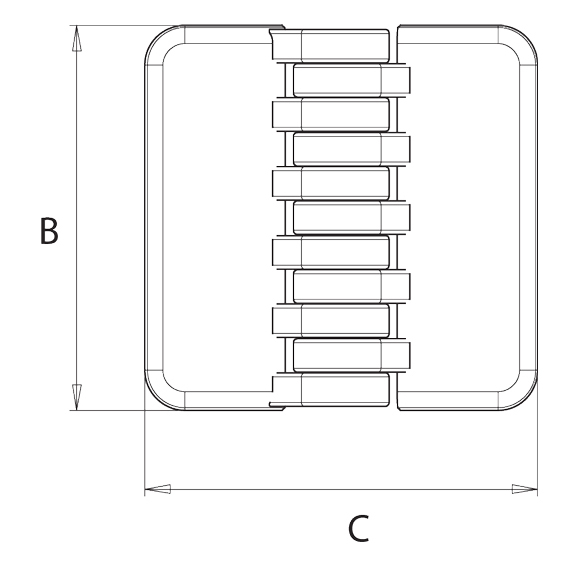

| COD. | A | A1 | B | C | D | H1 | H | H2 | Ø Pin | Q.ty |
| A3CG48/V | 30 | 30 | 48 | 49 | 05MA | 15 | 11 | 19 | 5 | 24 |
| A3CG65/V15 | 40 | 40 | 65 | 4 | 06MA | 15 | 13,5 | 23 | 5 | 24 |
| A3CG98/V | 62,5 | 59,5 | 96,5 | 97,5 | 10MA | 20 | 20,5 | 35 | 8 | 8 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/hinges-and-accessories/cg-v-nylon-hinge-with-screw.html#sigProId0a13c34e3f
https://getechsrl.com/en/products/compo/hinges-and-accessories/cg-v-nylon-hinge-with-screw.html#sigProId0a13c34e3f
Compo
Hinges and Accessories
CG/V

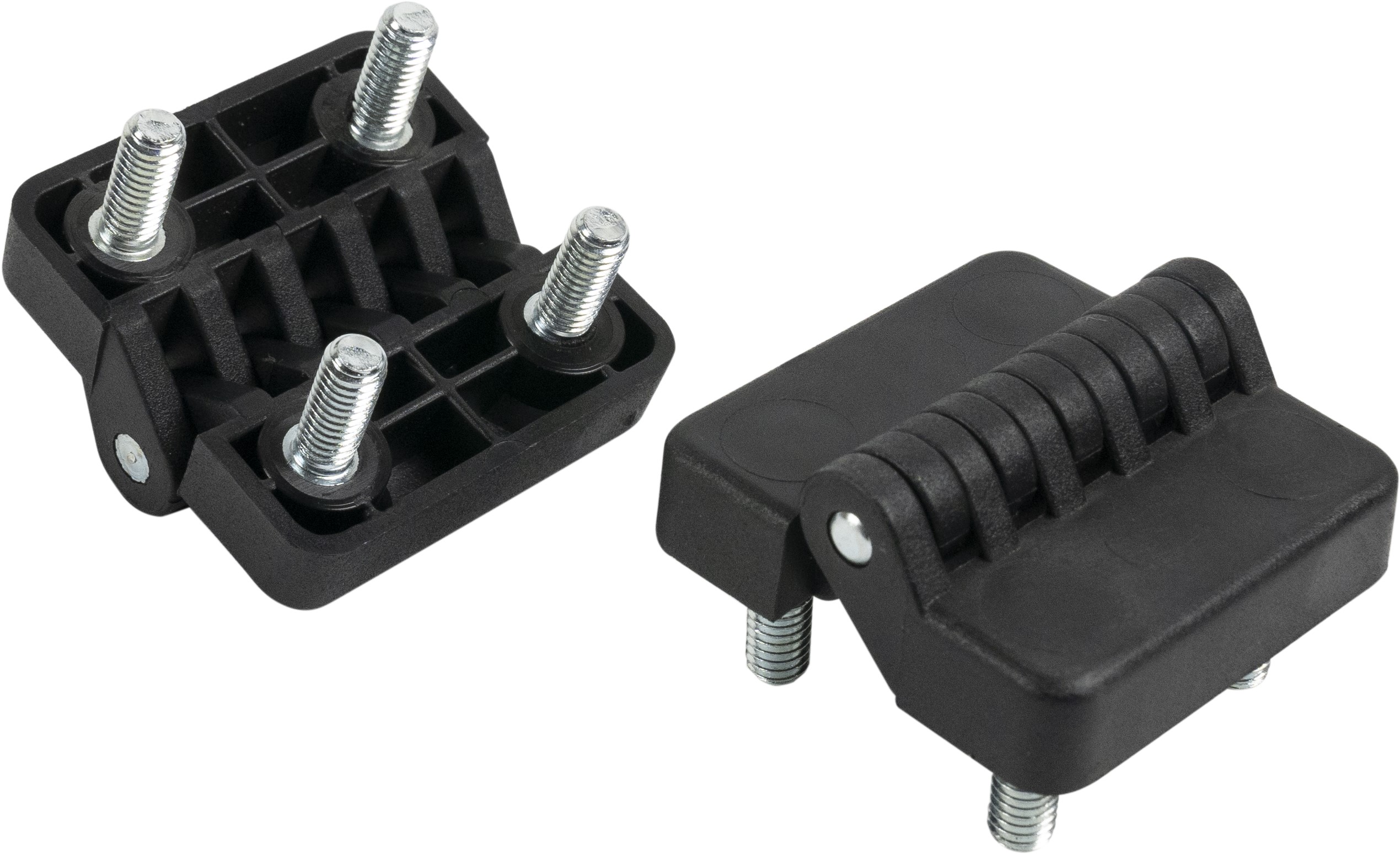

Nylon Hinge with Screw
Product specification
MATERIAL: Fiberglass reinforced black nylon
