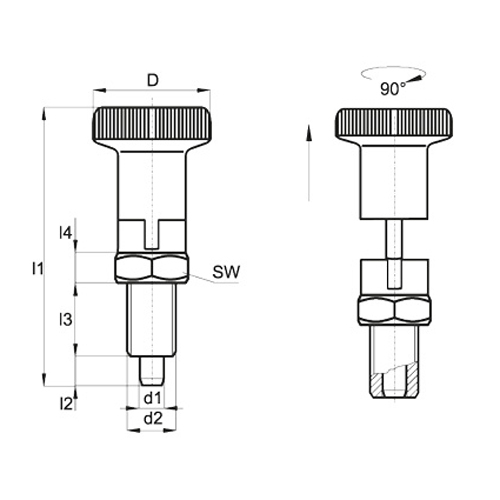

Click to enlarge image 1_disegno-tecnico_QS-QSX.jpg

  • Click to enlarge image 1_disegno-tecnico_QS-QSX.jpg

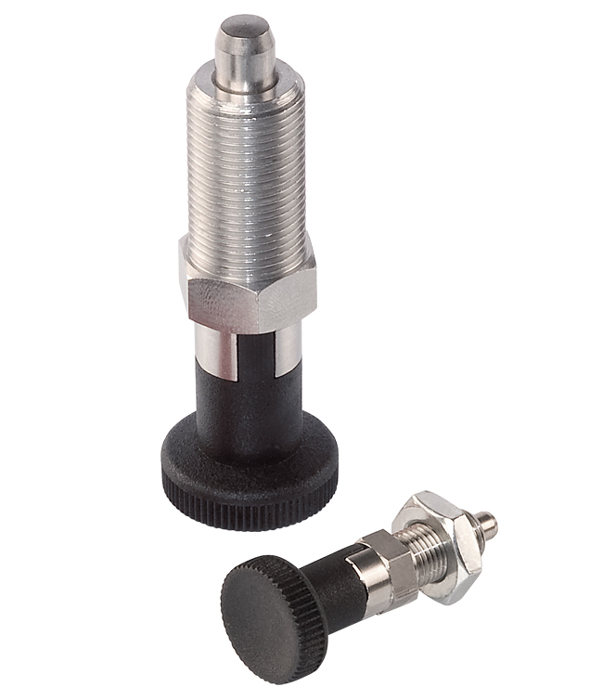

  • Click to enlarge image QS_QSX.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/hinges-and-accessories/qs-qsx-index-bolt-with-stop-fine-pitch-thread-steel-or-stainless-steel.html#sigProIdbca86c7f92
Download Technical Sheet

Compo

Hinges and Accessories

QS - QSX
Index Bolt with Stop, Fine-Pitch Thread, Steel or Stainless Steel

Product Specification

MAIN PART MATERIAL: Knob in black polyamide
METAL AND/OR FASTENING PART MATERIAL: Indexing Bolt with Hexagonal head in stainless steel or gunmetal finish
NOTE: Screws thread also available with thread lock supplied separately on request, see article DQ - DQX

COD. D d1 d2 l1 l2 l3 l4 SW Spring force start N  Spring force end N  Thread  Q.ty
B1QS2105 21 5 M10x1 45 6 17 5 12 6 15 Steel 20
B1QS2506 25 6 M12X1,5 54,5 6 20 6 14 8 21 Steel 20
B1QS3108 31 8 M16X1,5 69 8 26 8 19 9 26 Steel 20
B1QS3110 31 10 M20X1,5 80 10 33 10 22 17 40 Steel 20
B1QSX2105 21 5 M10X1 45 6 17 5 12 6 15 Stainless Steel  20
B1QSX2506 25 6 M12X1,5 54,5 6 20 6 14 8 21 Stainless Steel  20
B1QSX3108 31 8 M16X1,5 69 8 26 8 19 9 26 Stainless Steel  20
B1QSX3110 31 10 M20X1,5 80 10 33 10 22 17 40 Stainless Steel  20
