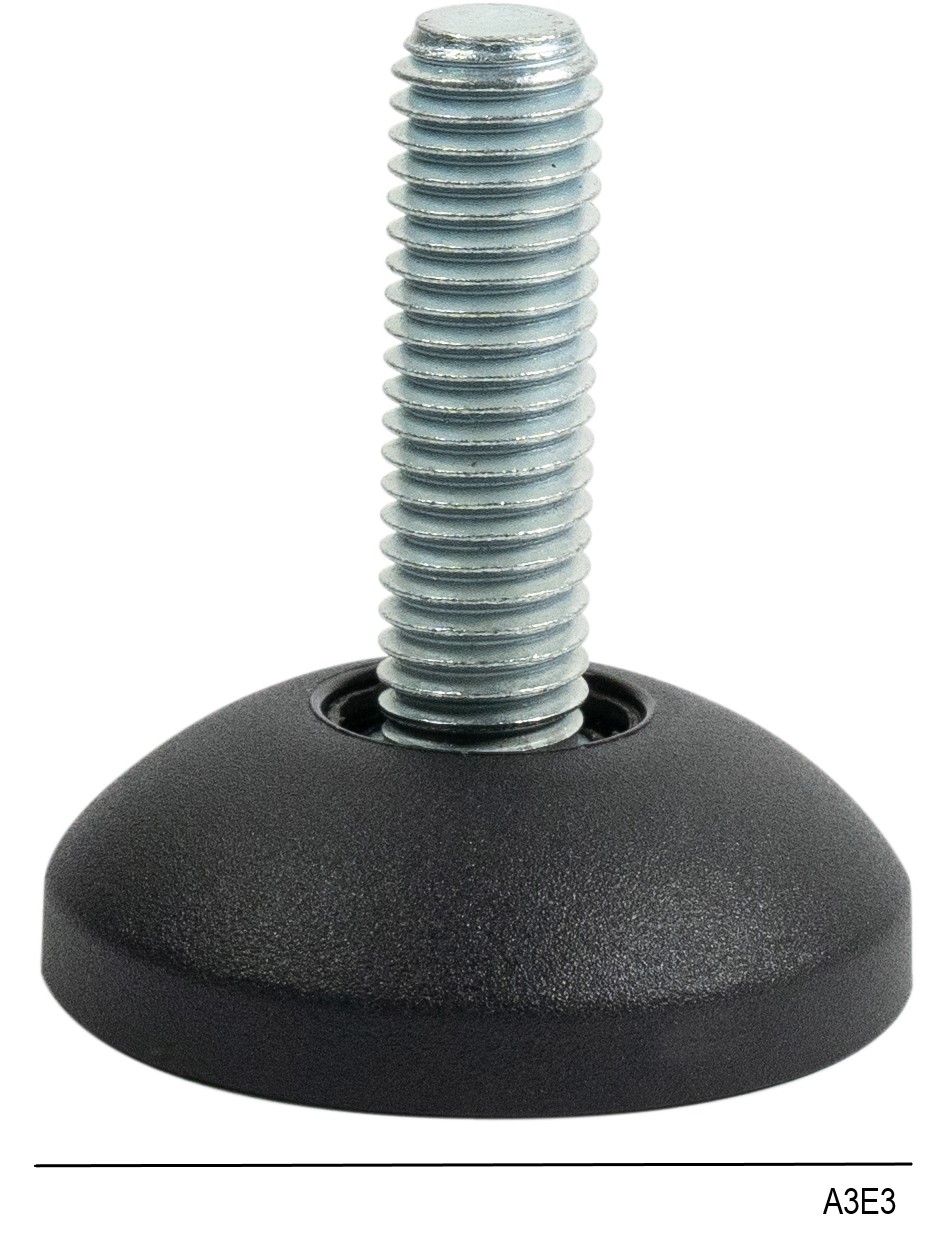

  • Click to enlarge image 1_A3E3.jpg

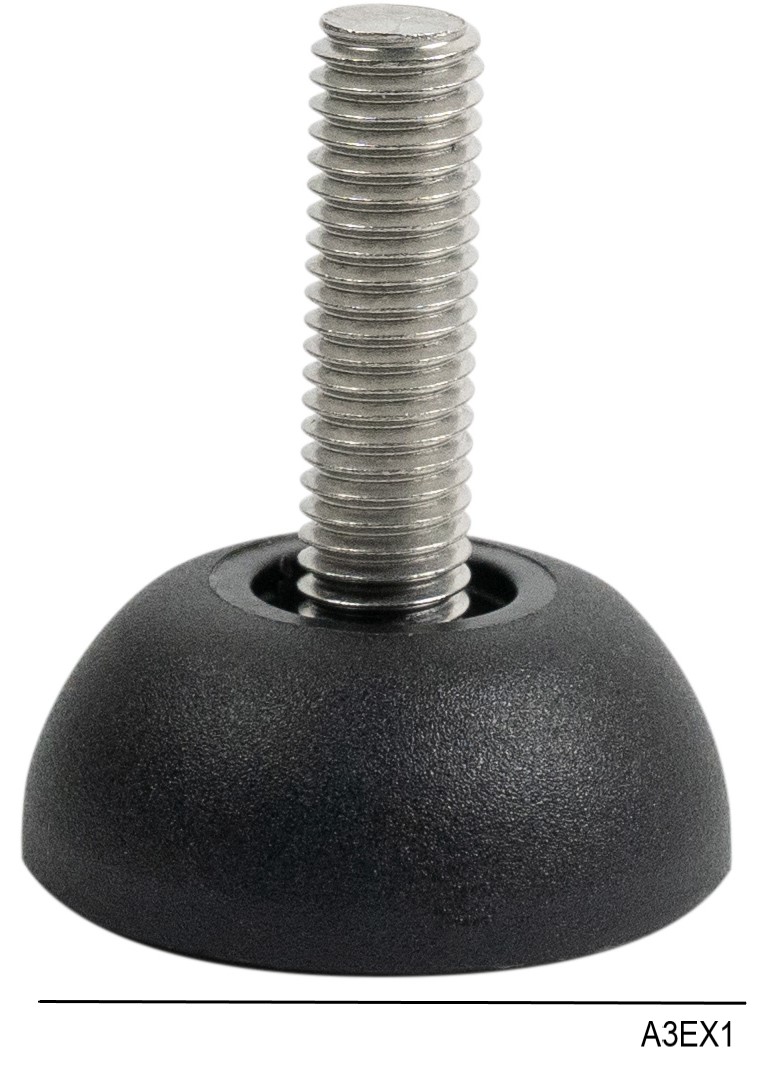

  • Click to enlarge image 2_A3EX1.jpg

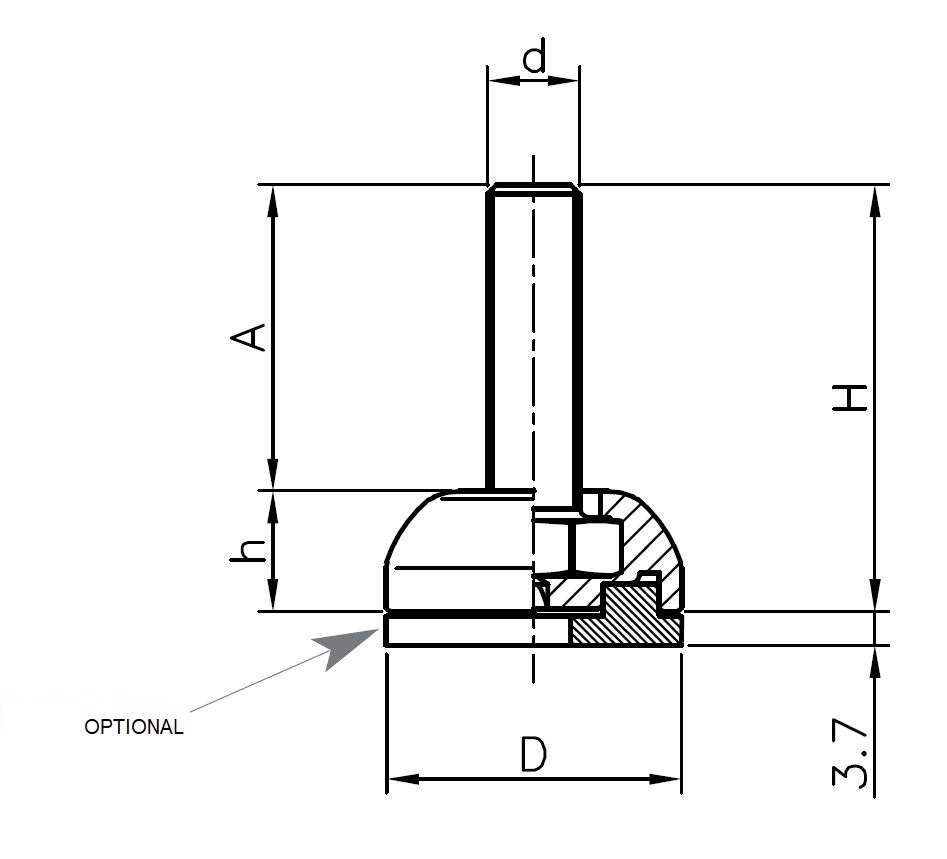

  • Click to enlarge image 3_technical drawing E-EX pag72.JPG
  • Click to enlarge image 4_Soletta SA per E-EX pag.72.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/nylon-levelling/e-ex-nylonfixed-foot-with-zinc-plated-or-stainless-steel-aisi-304-stud.html#sigProId06097f3457
Download Technical Sheet

Compo

Plastic Base Levelling Line

E - EX
NYLON Fixed Foot with Zinc Plated or Stainless Steel (AISI 304) Stud

Product specification

BASE MATERIAL: Black polyamide
SPINDLE MATERIAL: Z = zinc plated - X = Stainless Steel AISI 304
SPINDLE TYPE: Fixed
PRODUCT PRESENTATION: Stud incorporated in the base

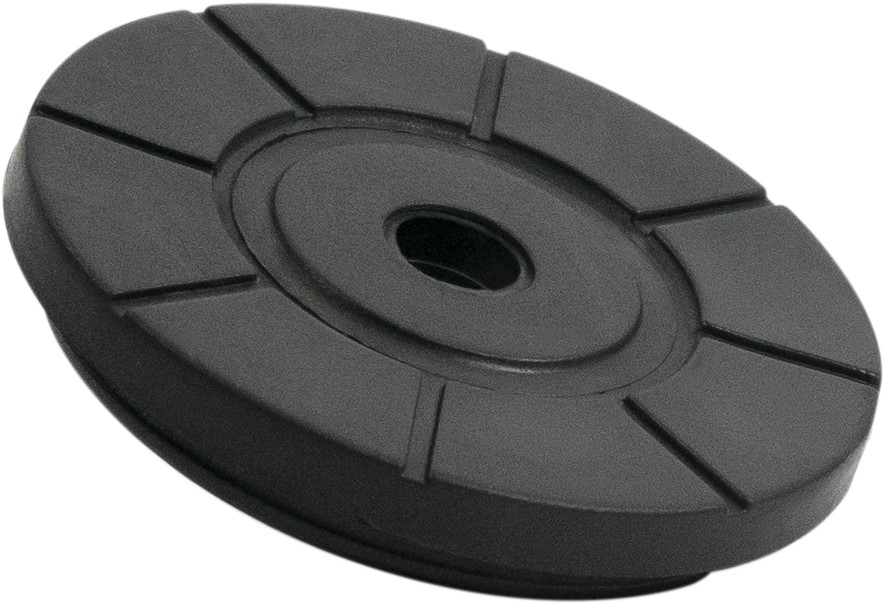

Anti-Slip Rubber Pad optional for art. E - EX
Product specification

Thermoplastic rubber hardness 80 shore A, with an innovative design for a better grip. Supplied separately from the foot on request.

Code D d A h Stud

Max Load
 daN
Q.ty
A3E1 32 08MA 26 16 Z 300 24
A3E2 32 10MA 23 16 Z 400 24
A3E3 40 08MA 36 16 Z 300 24
A3E4 40 10MA 33 16 Z 400 24
A3EX1 32 08MA 26 16 X 300 24
A3EX2 32 10MA 23 16 X 400 24
A3EX3 40 08MA 36 16 X 300 24
A3EX4 40 08MA 33 16 X 400 24



Anti-Slip Rubber Pad optional for art. E - EX

Code Diameter Q.ty
A3SA32 32 24
A3SA40/1 40 24
Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
