Download Technical Sheet

Compo

Plastic Base Levelling Line

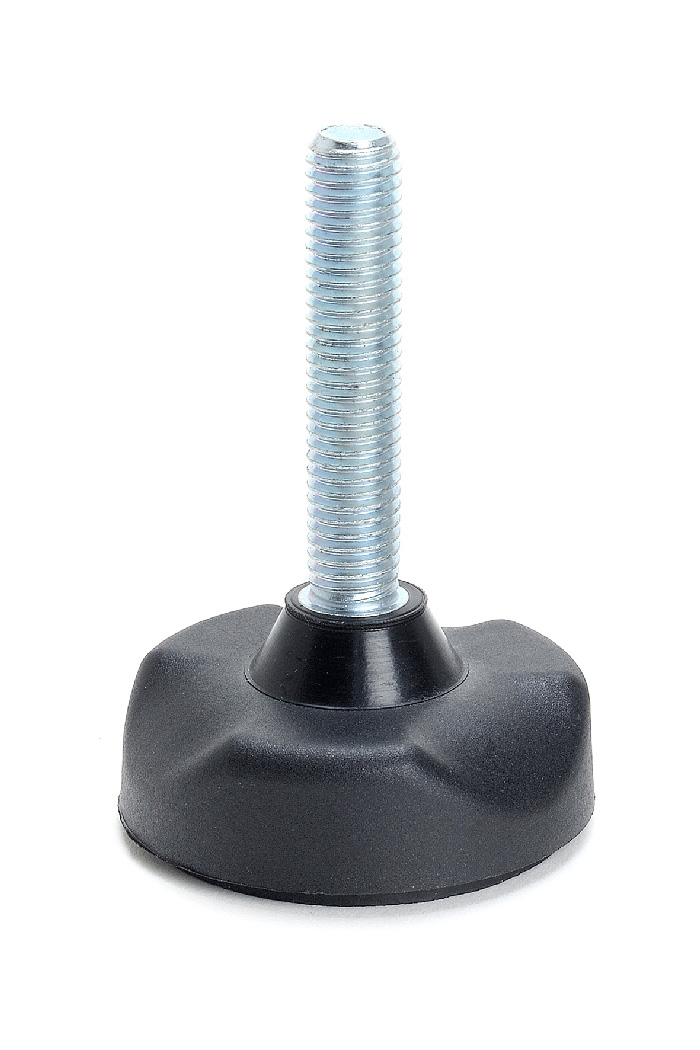

EB
Levelling Fixed Foot with Zinc Plated Stud

Product specification

BASE: Tecnopolymer (PA) reinforced with glass fibres. Solvent, oil and grease resistant.
STUD: Zinc plated MA threaded fixed.

SUGGESTED ACCESSORY: SA - Anti-slip Rubber Pad
Thanks to its innovative design this thermoplastic rubber pad with its 80 Shore A hardness is a great accessory for the ER foot to achieve a better grip.
Supplied separately on demand.

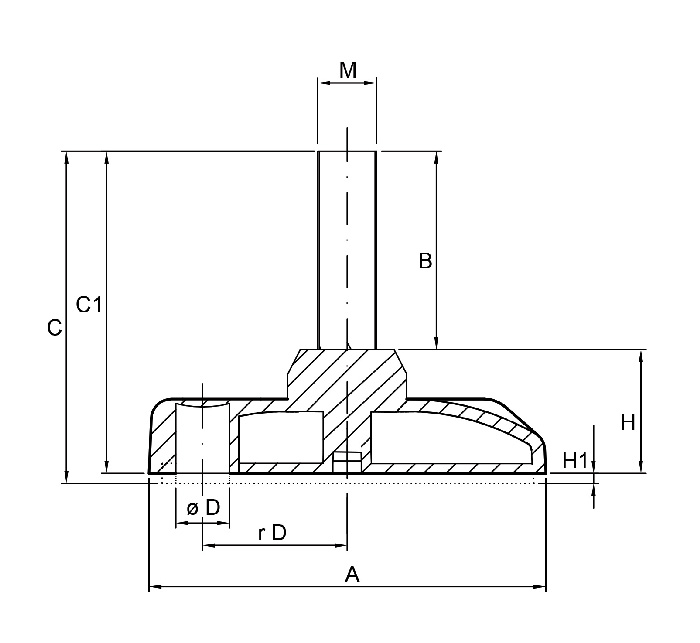

COD. A M B H H1 C C1 ∅D rD Max Load
daN
Q.ty
A3EB30/0630 30 06MA 30 13 2 45 43 - - 350 24
A3EB30/0650 30 06MA 50 13 2 65 63 - - 350 24
A3EB30/0830 30 08MA 30 13 2 65 43 - - 350 24
A3EB30/0850 30 08MA 50 13 2 55 63 - - 350 24
 A3EB40/0630  40  06MA  30  23 2  55 53  -  -  500 24
 A3EB40/0650  40  06MA  50  23  2  75  73  -  -  500 24
 A3EB40/0830  40  08MA  30  23  2  55  53  -  -  500 24
 A3EB40/0840  40  08MA  40  23  2  65  63  -  -  500 24
 A3EB40/0850  40  08MA  50  23  2  75  73  -  -  500 24
 A3EB40/1030  40  10MA  30  23  2  55  53  -  -  500 24
 A3EB40/1050 40  10MA  50  23  2  75  73 -  -  500 24
 A3EB50/0650  50  06MA 50  23  2  75  73  6 17  500 24
 A3EB50/0830  50  08MA  30  23  2  55  53  6  17  500 24
 A3EB50/0850  50  08MA  50  23  2  75  73  6  17  500 24
 A3EB50/1030  50  10MA 30  23  2  55  53  6  17  500 24
 A3EB50/1050  50  10MA 50  23  2  75  73  6  17  500 24
 A3EB80/1030  80  10MA  30 25  2  57  55  10  29  1000 24
 A3EB80/1050  80  10MA  50  25  2  77  75  10  29  1000 24
 A3EB80/1230  80  12MA  30  25  2  57  55  10  29  1000 24
 A3EB80/1250  80  12MA  50  25  2  77  75 10  29 1000 24
