Plastic Base Levelling Line

EBX

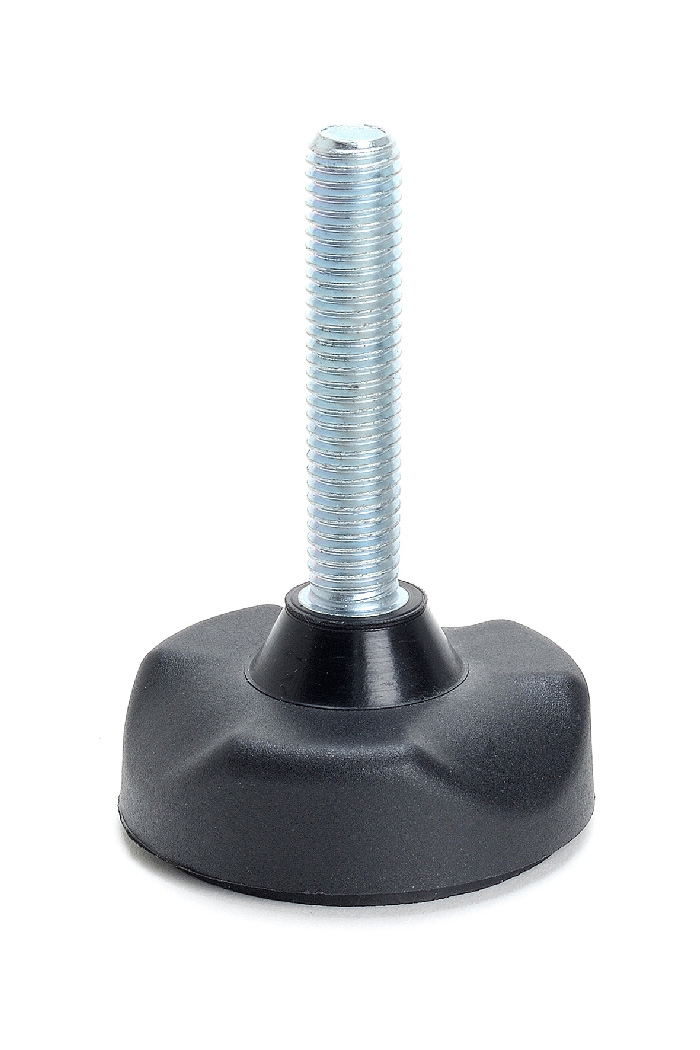

Levelling Fixed Foot with Stainless Steel Stud (AISI 304)

Product specification

BASE: Tecnopolymer (PA) reinforced with glass fibres, solvent, oil and grease resistant.
STUD: AISI 304 Stainless Steel, MA threaded, fixed.

SUGGESTED ACCESSORY: SA - Anti-slip Rubber Pad
Thanks to its innovative design this thermoplastic rubber pad with its 80 Shore A hardness is a great accessory for the ER foot to achieve a better grip.
Supplied separately on demand.

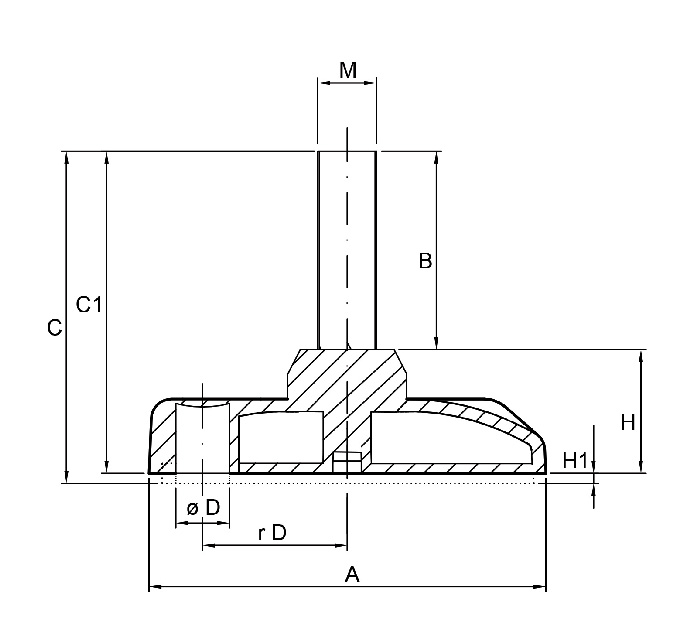

COD.	A	M	B	H	H1	C	C1	ØD	rd	Max Load daN	Q.ty
A3EBX30/0630	30	06MA	30	13	2	45	43	-	-	350	24
A3EBX30/0650	30	06MA	50	13	2	65	63	-	-	350	24
A3EBX30/0830	30	08MA	30	13	2	45	43	-	-	350	24
A3EBX30/0850	30	08MA	50	13	2	65	63	-	-	350	24
A3EBX40/0630	40	06MA	30	23	2	55	53	-	-	500	24
A3EBX40/0650	40	06MA	50	23	2	75	73	-	-	500	24
A3EBX40/0830	40	08MA	30	23	2	55	53	-	-	500	24
A3EBX40/0850	40	08MA	50	23	2	75	73	-	-	500	24
A3EBX40/1030	40	10MA	30	23	2	55	53	-	-	500	24
A3EBX40/1050	40	10MA	50	23	2	75	73	-	-	500	24
A3EBX50/0830	50	08MA	30	23	2	55	53	6	17	500	24
A3EBX50/0850	50	08MA	50	23	2	75	73	6	17	500	24
A3EBX50/1030	50	10MA	30	23	2	55	53	6	17	500	24
A3EBX50/1040	50	10MA	40	23	2	60	58	6	17	500	24
A3EBX50/1050	50	10MA	50	23	2	75	73	6	17	500	24
A3EBX80/1030	80	10MA	30	25	2	57	55	4	29	1000	24
A3EBX80/1050	80	10MA	50	25	2	77	75	4	29	1000	24
A3EBX80/1230	80	12MA	30	25	2	57	55	4	29	1000	24
A3EBX80/1250	80	12MA	50	25	2	77	75	4	29	1000	24
