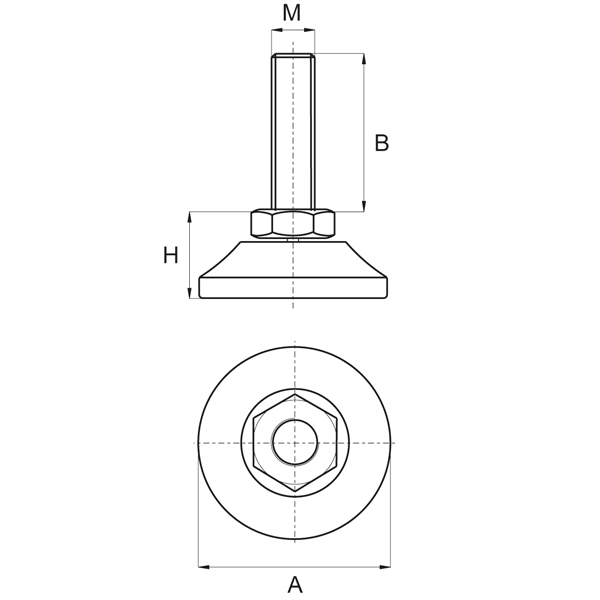

| COD. | A | M | B | H | Max Load daN |
Q.ty |
| A3EC30/0820 | 30 | 08MA | 20 | 16 | 400 | 24 |
| A3EC30/0840 | 30 | 08MA | 40 | 16 | 400 | 24 |
| A3EC30/1040 | 30 | 10MA | 40 | 18 | 500 | 24 |
| A3EC40/0830 | 38 | 08MA | 30 | 16 | 400 | 24 |
| A3EC40/0850 | 38 | 08MA | 50 | 16 | 400 | 24 |
| A3EC40/1040 | 38 | 10MA | 40 | 18 | 500 | 24 |
| A3EC40/1060 | 38 | 10MA | 60 | 18 | 500 | 24 |
| A3EC50/1050 | 48 | 10MA | 50 | 18 | 500 | 24 |
| A3EC50/1240 | 48 | 12MA | 40 | 19 | 600 | 24 |
| A3EC50/1260 | 48 | 12MA | 60 | 19 | 600 | 24 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/nylon-levelling/ec-levelling-foot-with-threaded-adjustable-bolt.html#sigProIdb20b65e0f4
https://getechsrl.com/en/products/compo/nylon-levelling/ec-levelling-foot-with-threaded-adjustable-bolt.html#sigProIdb20b65e0f4
Compo
Plastic Base Levelling Line
EC

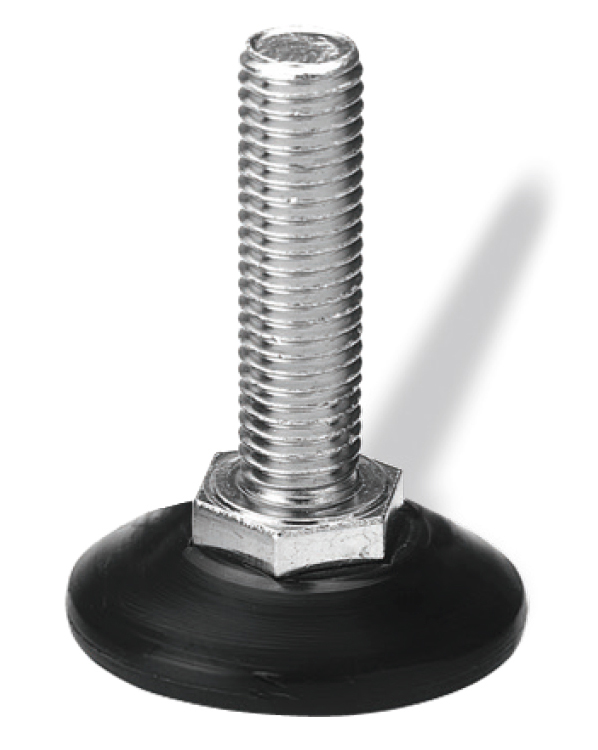

Levelling Foot with Threaded Adjustable Bolt
Product specification
BASE MATERIAL: Polypropylene (PP)
STUD MATERIAL: Zinc plated Steel
SPINDLE TYPE: Revolving
SPINDLE OUTFIT: Hex nut
DELIVERED: Stud supplied applied to the base
