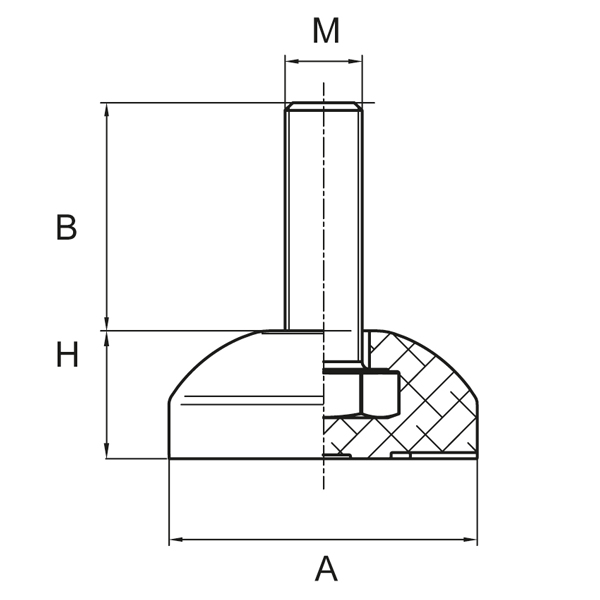

| COD. | A | M | B | H | Stud | Max Load daN | Q.ty |
| A3EG1 | 32 | 08MA | 24 | 16 | Z | 300 | 24 |
| A3EG2 | 32 | 10MA | 20 | 16 | Z | 400 | 24 |
| A3EG3 | 40 | 08MA | 34 |
16 |
Z | 300 | 24 |
| A3EG4 | 40 | 10MA | 30 | 16 | Z | 400 | 24 |
| A3EGX1 | 32 | 08MA | 24 | 16 | X | 300 | 24 |
| A3EGX2 | 32 | 10MA | 20 | 16 | X | 400 | 24 |
| A3EGX3 | 40 | 08MA | 34 | 16 | X | 300 | 24 |
| A3EGX4 | 40 | 10MA | 30 | 16 | X | 400 | 24 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/nylon-levelling/eg-egx-tpe-fixed-foot-with-zinc-plated-or-stainless-steel-aisi304-stud.html#sigProIdecbadf11c8
https://getechsrl.com/en/products/compo/nylon-levelling/eg-egx-tpe-fixed-foot-with-zinc-plated-or-stainless-steel-aisi304-stud.html#sigProIdecbadf11c8
Compo
Plastic Base Levelling Line
EG - EGX

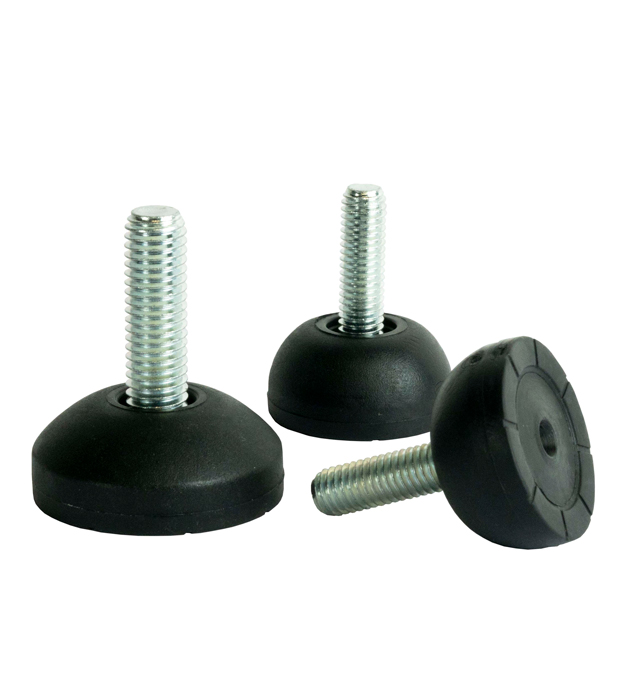

TPE Fixed Foot with Zinc Plated or Stainless Steel (AISI304) Stud
Product Specification
BASE MATERIAL: Rubber TPE 80 Shore A
STUD MATERIAL: Z = Zinc Plated - X = Stainless Steel AISI 304
SPINDLE TYPE: Fixed
PRODUCT PRESENTATION: Stud incorporated in the base
