Download Technical Sheet

Compo

Plastic Base Levelling Line

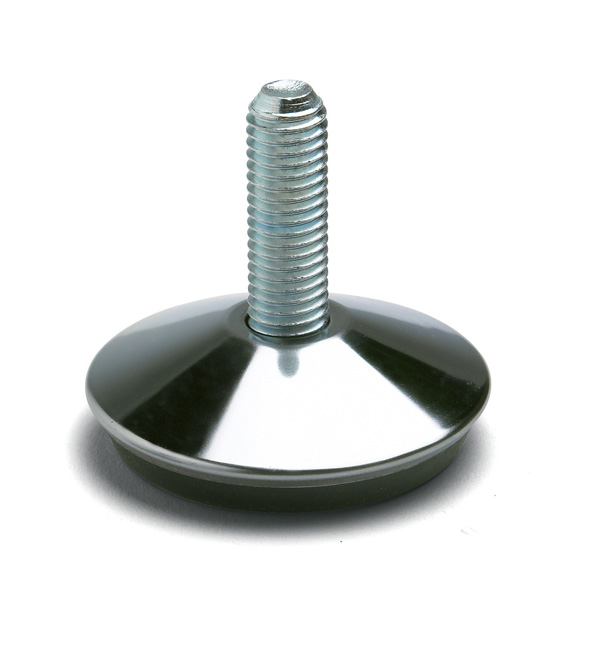

EL
PE Fixed Foot with Plated Steel Covering

Product specification

BASE MATERIAL: Polyethilene, zinc plated steel covering
SPINDLE MATERIAL: Zinc plated steel
SPINDLE TYPE: Fixed
PRODUCT PRESENTATION: Base assembled with the stud
SPECIFICAL FEATURES: Height levelling achievable by screwing down the base

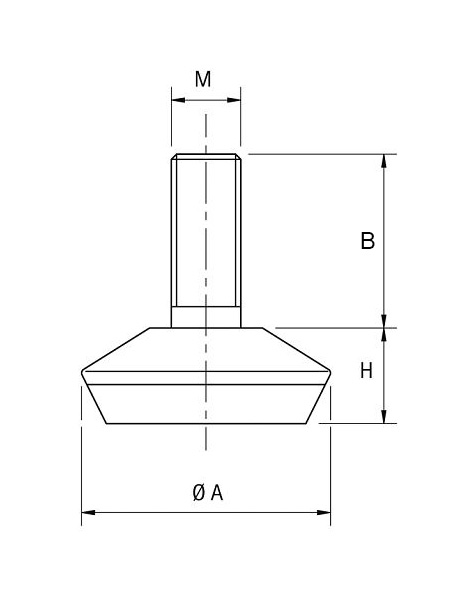

COD. A M B H Max Load daN Q.ty
A3EL1 20 06MA 13 7 100 24
A3EL2 25 08MA 20 10 120 24
A3EL3 25 10MA 20 10 120 24
A3EL4 30 08MA 20 11,5 150 24
A3EL5 30 10MA 20 11,5 150 24
A3EL6 40 08MA 25 13,5 180 24
A3EL7 40 10MA 25 13,5 180 24
A3EL8 50 10MA 30 15,5 200 24
A3EL9 50 12MA 35 15,5 200 24





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
