Compo

Plastic Base Levelling Line

G - GX

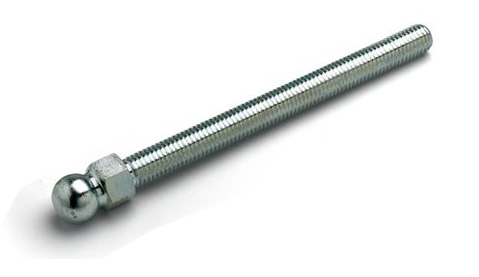

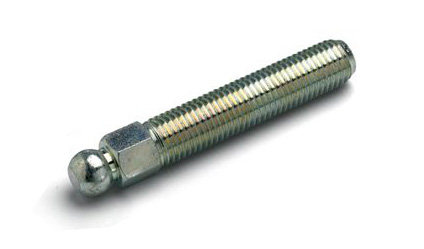

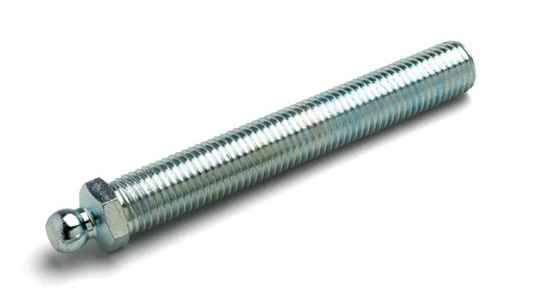

Threaded Spindle

Product specification

SPINDLE MATERIAL:
Z = zinc plated
X = AISI 303
SPINDLE TYPE: Swivel (spheric head)
NOTES: Matching to the base NB

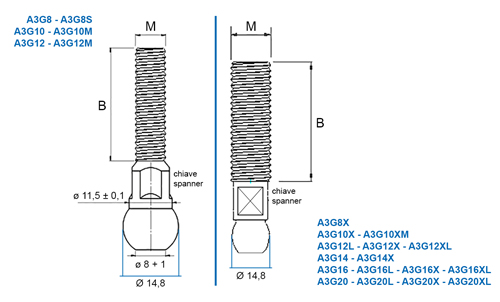

COD.	M	B	Stud	Ø Sphere	Spanner	Q.ty
A3G8	08MA	65	Z	14,8	10	12
A3G8S	08MA	30	Z	14,8	10	12
A3G8X	08MA	65	X	14,8	10	12
A3G10	10MA	60	Z	14,8	10	12
A3G10M	10MA	100	Z	14,8	10	12
A3G10X	10MA	60	X	14,8	10	12
A3G10XM	10MA	100	X	14,8	10	12
A3G12	12MA	60	Z	14,8	10	12
A3G12L	12MA	130	Z	14,8	10	12
A3G12M	12MA	100	Z	14,8	10	12
A3G12X	12MA	60	X	14,8	14	12
A3G12XL	12MA	130	X	14,8	10	12
A3G14	14MA	60	Z	14,8	13	12
A3G14X	14MA	60	X	14,8	14	12
A3G16	16MA	75	Z	14,8	13	12
A3G16L	16MA	140	Z	14,8	13	12
A3G16X	16MA	75	X	14,8	13	12
A3G16XL	16MA	140	X	14,8	16	12
A3G20	20MA	75	Z	14,8	17	12
A3G20L	20MA	140	Z	14,8	17	12
A3G20X	20MA	75	X	14,8	19	12
A3G20XL	20MA	140	X	14,8	19	12
