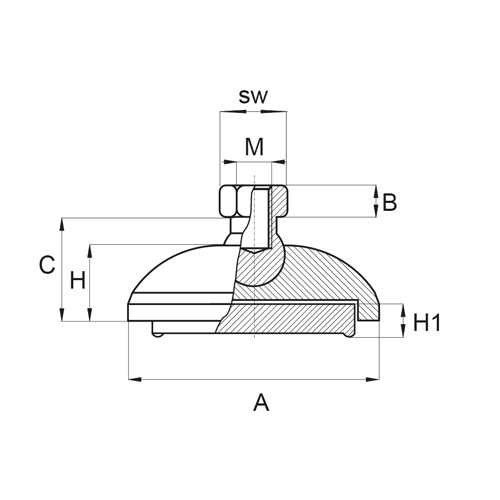

| COD. | A | H | H1 | C | B | SW | M |
Max Load daN |
Q.ty |
| A3NS3006 | 30 | 18 | 7 | 24 | 8,5 | 14 | 06MA | 600 | 24 |
| A3NS4006 | 40 | 18 | 7 | 24 | 8,5 | 14 | 06MA | 900 | 24 |
| A3NS4008 | 40 | 18 | 7 | 24 | 8,5 | 14 | 08MA | 900 | 24 |
| A3NS4010 | 40 | 18 | 7 | 24 | 8,5 | 14 | 10MA | 900 | 24 |
| A3NS6008 | 60 | 18 | 7 | 24 | 8,5 | 14 | 08MA | 1200 | 24 |
| A3NS6010 | 60 | 18 | 7 | 24 | 8,5 | 14 | 10MA | 1200 | 24 |
| A3NS8008 | 80 | 18 | 7 | 24 | 8,5 | 14 | 08MA | 1400 | 24 |
| A3NS8010 | 80 | 18 | 7 | 24 | 8,5 | 14 | 10MA | 1400 | 24 |
| A3NS8012 | 80 | 21 | 7 | 25 | 15 | 17 | 12MA | 1400 | 24 |
Compo
Plastic Base Levelling Line
NS

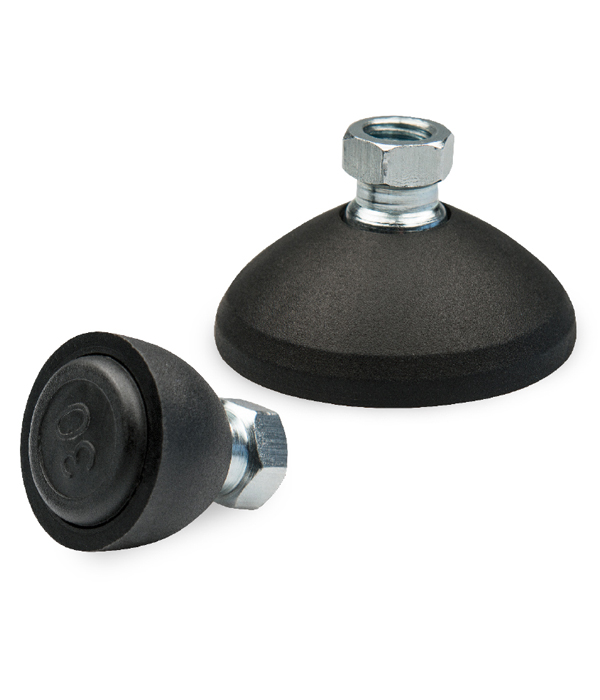

Machine Levelling Foot Base with Female Adjustable Thread and Non-Slip Rubber Insert
Caratteristiche
BASE MATERIAL: Fiberglass reinforced Nylon
BASE TYPE: Not fixable to the ground
THREAD MATERIAL: Zinc plated steel
THREAD TYPE: Female adjustable EX14 – EX17 for art. A3N8012
BASE OUTFIL: Equipped with non-slip rubber sole
NOTE: Can be matched with our GNS tie rods or to any other threaded stud
