Plastic Base Levelling Line

NTB - NTBX
125 mm Levelling Nylon Foot

Product specification

BASE MATERIAL: Fiberglass reinforced polyamide (PA)
STUD MATERIAL:

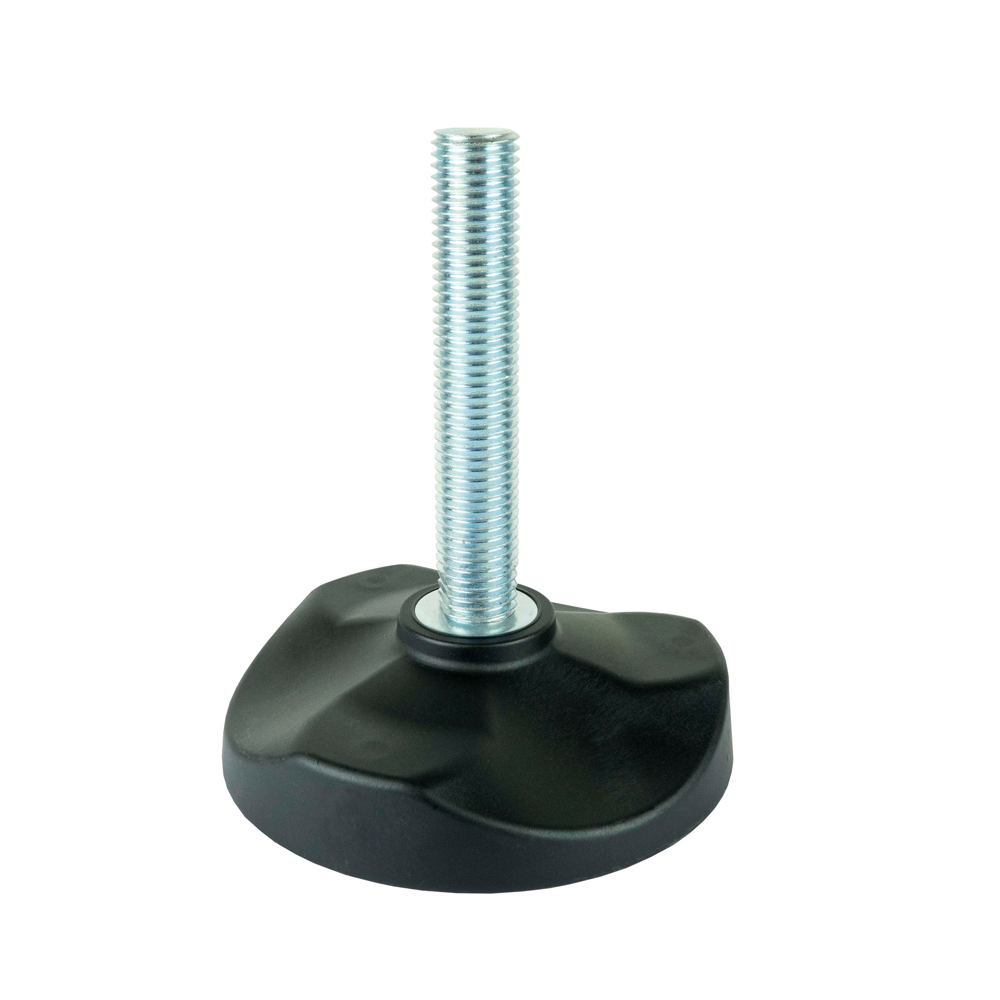

Z = Zinc plated

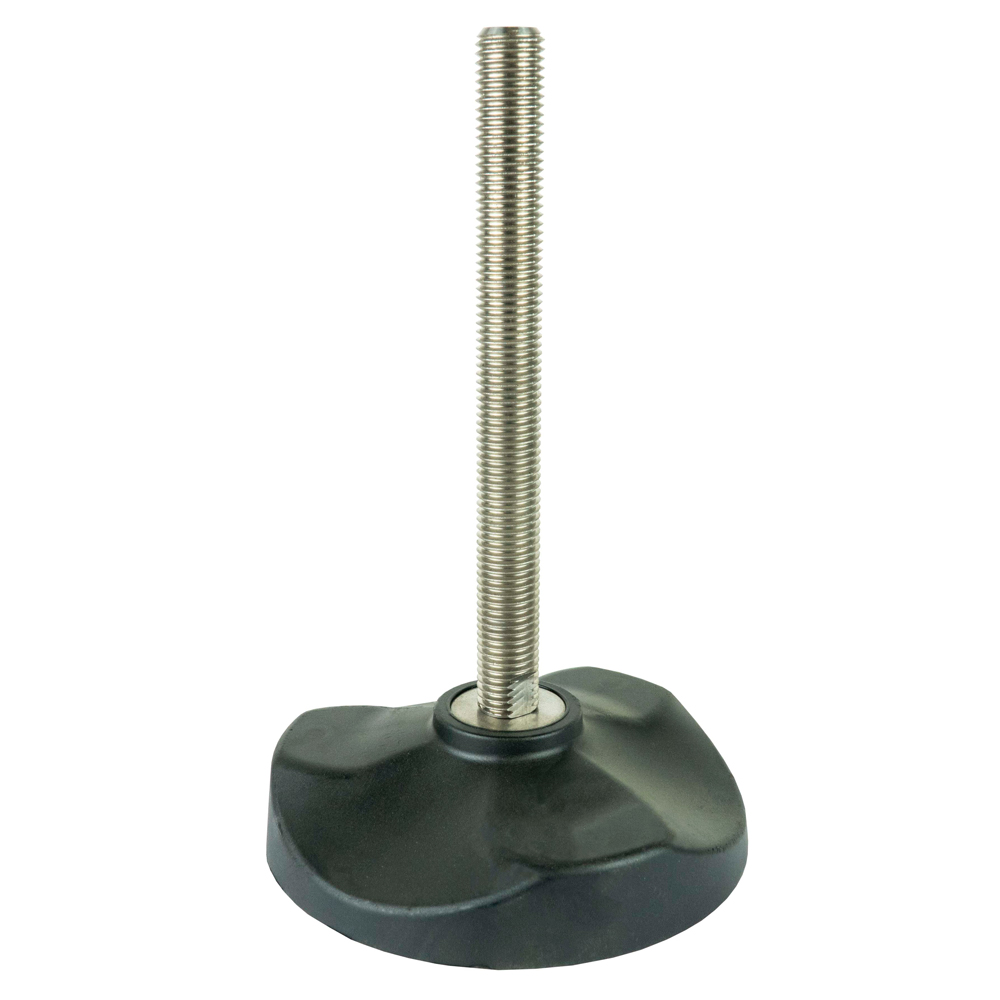

X= Stainless Steel AISI 304
SPINDLE TYPE: Revolving
PRODUCT PRESENTATION: Spindle assembled to the base

SUGGESTED ACCESSORY: SA - Anti-slip Rubber Pad
Thanks to its innovative design this thermoplastic rubber pad with its 80 Shore A hardness is a great accessory for the NTB - NTBX foot to achieve a better grip.
Supplied separately on demand.

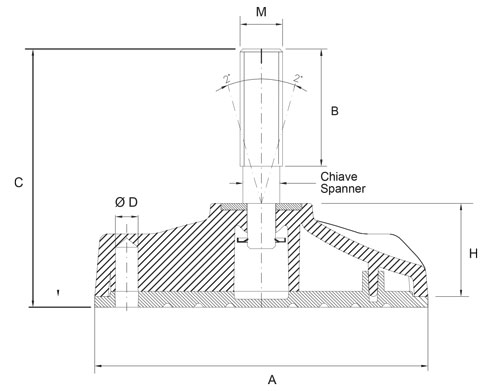

COD.	A	M	B	C	D	H	Chiave	Stelo	Max Load of Use daN	Max Breaking Load daN	Q.tà
A3NTB16060	125	16MA	60	110	8,5	35	13	Z	1900	4000	8
A3NTB16100	125	16MA	100	150	8,5	35	13	Z	1900	4000	8
A3NTB16150	125	16MA	150	200	8,5	35	13	Z	1900	4000	8
A3NTB16200	125	16MA	200	250	8,5	35	13	Z	1900	4000	8
A3NTB20100	125	20MA	100	150	8,5	35	17	Z	1900	4000	8
A3NTB20150	125	20MA	150	200	8,5	35	17	Z	1900	4000	8
A3NTB20200	125	20MA	200	250	8,5	35	17	Z	1900	4000	8
A3NTB24150	125	24MA	150	200	8,5	35	19	Z	1900	4000	8
A3NTB24200	125	24MA	200	250	8,5	35	19	Z	1900	4000	8
A3NTB30200	125	30MA	200	250	8,5	35	24	Z	1900	4000	8
A3NTBX16060	125	16MA	60	100	8,5	35	13	X	1900	4000	8
A3NTBX16100	125	16MA	100	150	8,5	35	13	X	1900	4000	8
A3NTBX16150	125	16MA	150	200	8,5	35	13	X	1900	4000	8
A3NTBX16200	125	16MA	200	250	8,5	35	13	X	1900	4000	8
A3NTBX20100	125	20MA	100	150	8,5	35	17	X	1900	4000	8
A3NTBX20150	125	20MA	150	200	8,5	35	17	X	1900	4000	8
A3NTBX20200	125	20MA	200	250	8,5	35	17	X	1900	4000	8
A3NTBX20250	125	20MA	250	300	8,5	35	17	X	1900	4000	8
A3NTBX24150	125	24MA	150	200	8,5	35	19	X	1900	4000	8
A3NTBX24200	125	24MA	200	250	8,5	35	19	X	1900	4000	8
A3NTBX30100	125	30MA	100	150	8,5	35	24	X	1900	4000	8
A3NTBX30200	125	30MA	200	250	8,5	35	24	X	1900	4000	8
