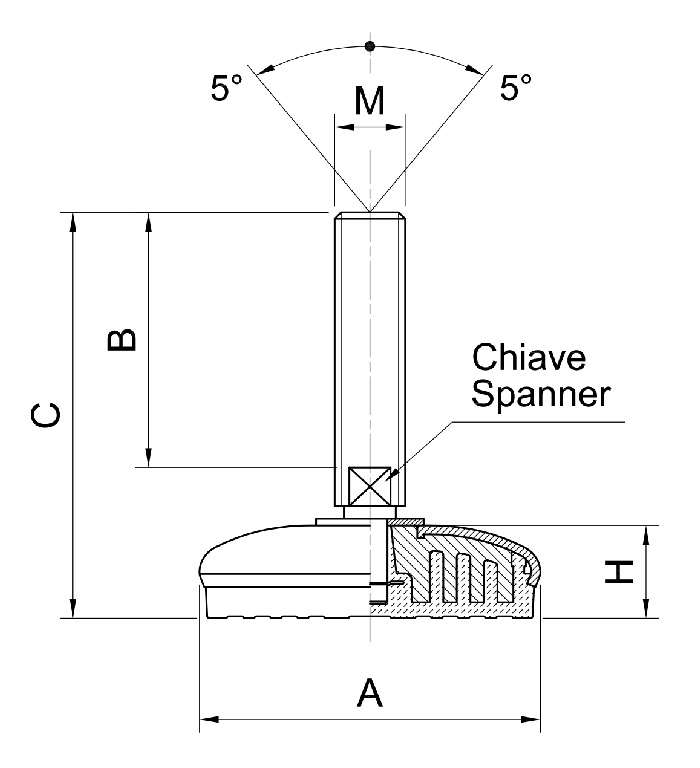

Click to enlarge image 1_disegno-tecnico_X95.jpg

  • Click to enlarge image 1_disegno-tecnico_X95.jpg

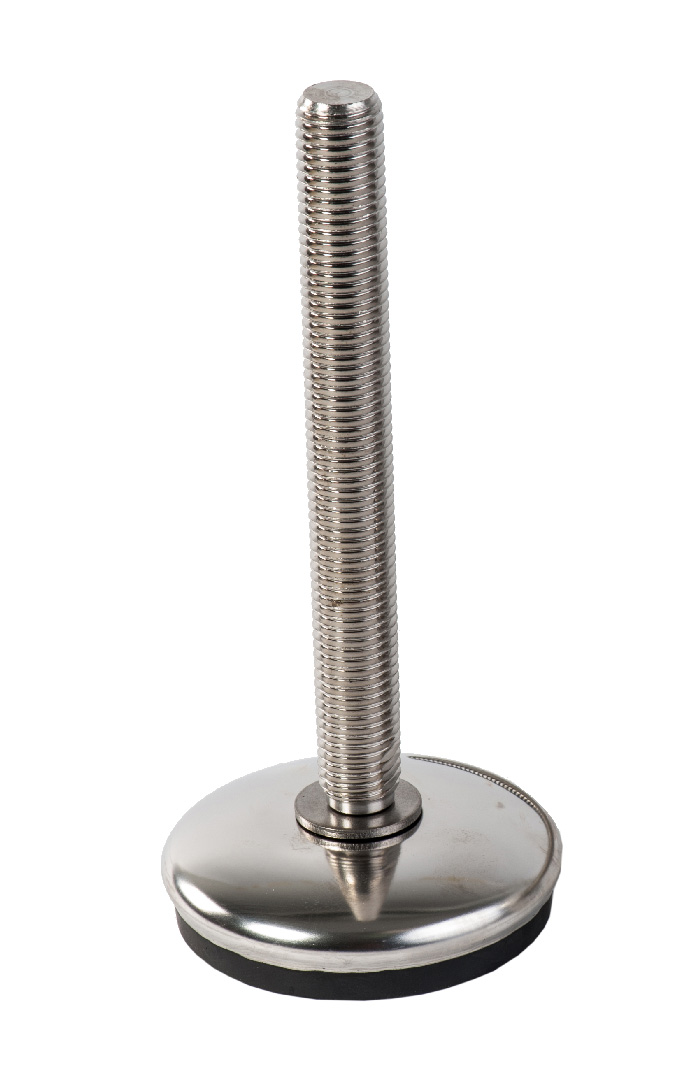

  • Click to enlarge image X95_1.jpg

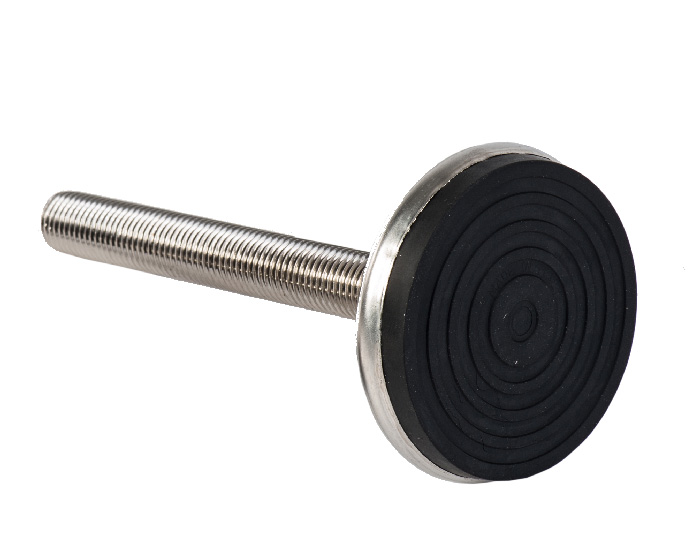

  • Click to enlarge image X95_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/steel-levelling-line/x95-levelling-foot-with-aisi-304-stainless-steel-base-and-stud.html#sigProId74afbfbc94
Download Technical Sheet

Compo

Steel Base Levelling Line

X95
Levelling Foot with AISI 304 Stainless Steel Base and Stud

Product specification

MATERIAL: Material Internal part made of reinforced polyamide; external covering made of stainless steel AISI 304; anti-slip pad made of SEBS Rubber 55 shore black colour.
SPINDLE MATERIAL: Stainless steel AISI 304
SPINDLE TYPE: Revolving
PRODUCT PRESENTATION: Spindle assembled to the base
NOTE: The comoulded anti-slip rubber pad adheres perfectly to the steel base thus the absence of internal cavities makes the foot extremely easy to clean and sanitize.

COD. A M B C H Spanner Max Load daN Q.ty
 A5X95/12070 95  12MA  70  109  26  10  1700 8
 A5X95/14108  95  14MA  108  148  26  12  2700 8
 A5X95/16058  95  16MA  58  102  26  13  2700 8
 A5X95/16119  95  16MA  119  163  26  13  2700 8
 A5X95/16145  95  16MA  145  189  26  13  2700 8
 A5X95/16201  95  16MA  201  245  26  13  2700 8
 A5X95/18157  95  18MA  157  201  26  15  2700 8
 A5X95/20107  95  20MA  107  153  26  17  2700 8
 A5X95/20135  95  20MA  135  181  26  17  2700 8
 A5X95/20157  95  20MA  157  203  26  17  2700 8
 A5X95/20190  95  20MA  190  236  26  17  2700 8
 A5X95/20238  95  20MA  238  284  26  17  2700 8
 A5X95/24090  95  24MA  90  139  26  19  2700 8
 A5X95/24127  95  24MA  127  176  26  19  2700 8
 A5X95/24162  95  24MA  162  211  26  19  2700 8
 A5X95/24201  95  24MA  201  250  26  19  2700 8
 A5X95/30125  95  30MA  125  174  26  24  2700 8
 A5X95/30185  95  30MA  185  234  26  24  2700 8
