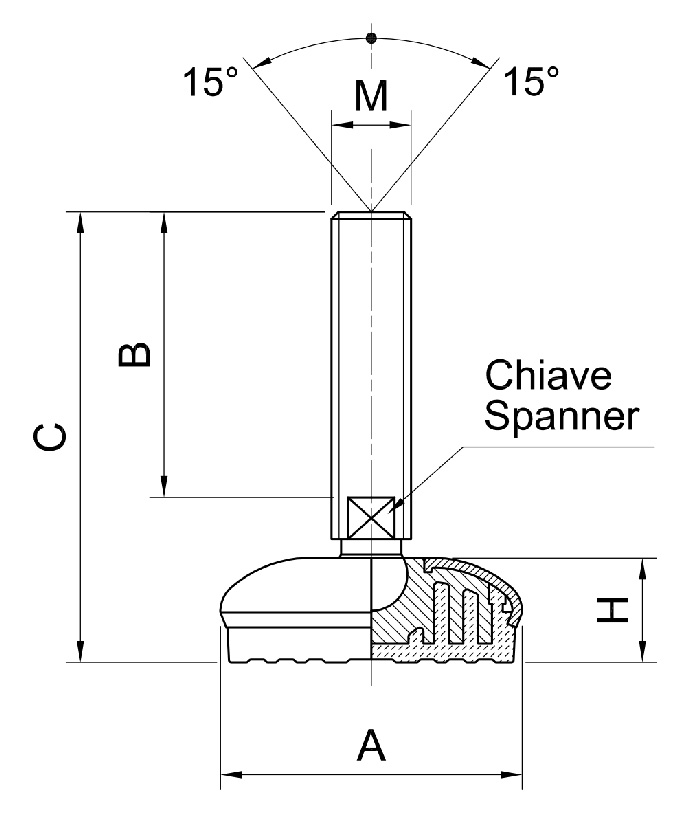

Click to enlarge image 1_disegno-tecnico_XS75.jpg

  • Click to enlarge image 1_disegno-tecnico_XS75.jpg

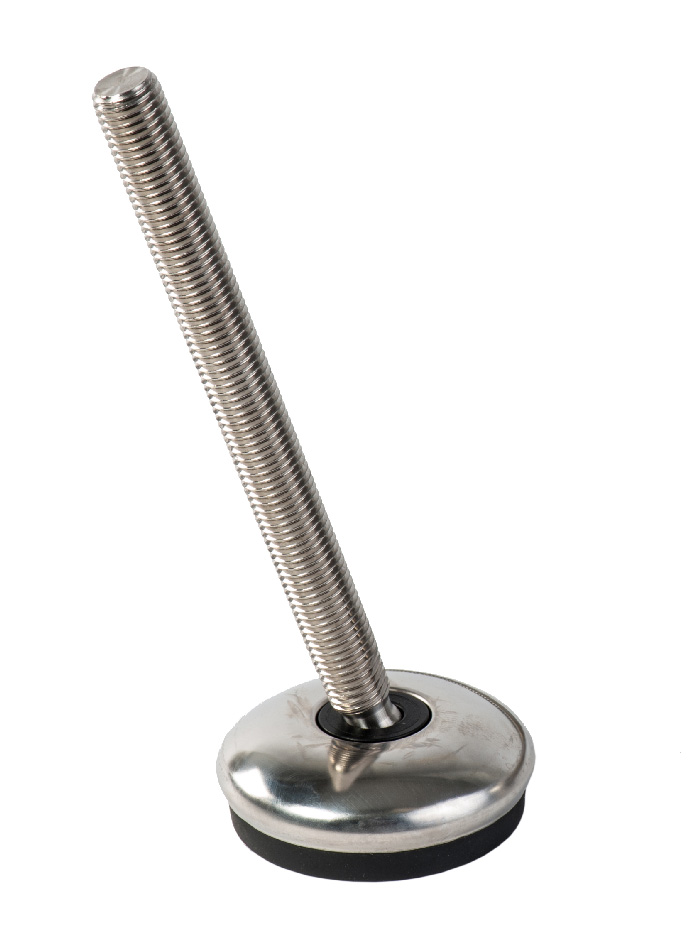

  • Click to enlarge image XS75_1.jpg

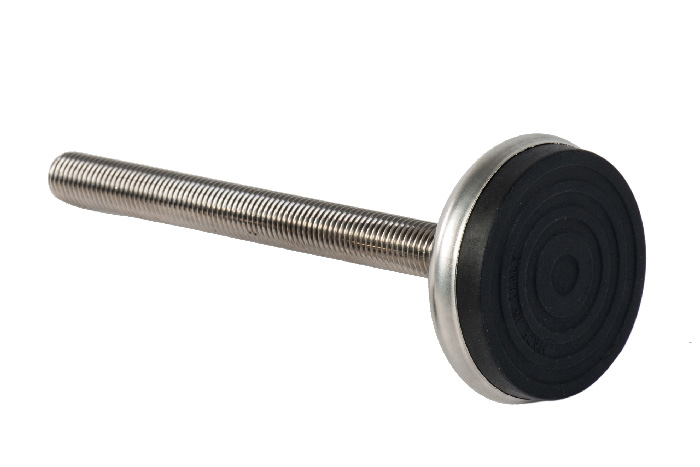

  • Click to enlarge image XS75_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/steel-levelling-line/xs75-articulated-foot-with-aisi-304-stainless-steel-base-and-stud.html#sigProIdedea45b8d2
Download Technical Sheet

Compo

Steel Base Levelling Line

XS75
Articulated Foot with AISI 304 Stainless Steel Base and Stud

Product specification

MATERIAL: Material Internal part made of reinforced polyamide; external covering made of stainless steel AISI 304; anti-slip pad made of SEBS Rubber 55 shore black colour.
SPINDLE MATERIAL: Stainless steel AISI 304
SPINDLE TYPE: Articulated
PRODUCT PRESENTATION: Spindle assembled to the base
NOTE: Comoulded anti-slip pad allows a perfect adherence with steel base. The consequent absence of internal cavities makes foot extremely cleanable.

COD. A M B C H Spanner Max Load daN Q.ty
 A5XS75/16060  75  16MA  60  103  26  13  1900 8
 A5XS75/16090  75  16MA  90  133  26  13  1900 8
 A5XS75/16105  75  16MA  105  148  26  13  1900 8
 A5XS75/16125  75 16MA   125  168  26  13  1900 8
 A5XS75/16155  75 16MA  155  198  26  13  1900 8
 A5XS75/16165  75  16MA  165  208  26  13  1900 8
 A5XS75/16205  75  16MA  205  248  26  13  1900 8
 A5XS75/20086  75  20MA  86  132  26  17  2100 8
 A5XS75/20116  75  20MA  116  162  26  17  2100 8
 A5XS75/20141  75  20MA  141  187  26  17  2100 8
 A5XS75/20206  75  20MA  206  252  26  17  2100 8
 A5XS75/24096  75  24MA  96  142  26  19  2300 8
 A5XS75/24122  75  24MA  122  168  26  19  2300 8
 A5XS75/24152  75  24MA  152  198  26  19  2300 8
 A5XS75/24182  75  24MA  182  228  26  19  2300 8
 A5XS75/24300  75  24MA  300  346  26  19  2300 8
