| COD. | A | M | B | H |
Max Load daN |
Q.tà |
| A4TC60 | 60 | 10MA | 80 | 18 | 200 | 4 |
| A4TC70 | 70 | 12MA | 100 | 20 | 350 | 4 |
|
A4TC85 |
85 | 12MA | 100 | 25 | 600 | 4 |
| A4TC100 | 100 | 14MA | 110 | 20 | 800 | 4 |
| A4TC120 | 120 | 16MA | 120 | 25 | 1100 | 4 |
| A4TC140 | 140 | 16MA | 120 | 33 | 2000 | 4 |
| A4TC160 | 160 | 16MA | 120 | 31 | 3000 | 4 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/antivibration-feet/tc-leveling-antivibrator-foot.html#sigProIdb57ea4cdbf
https://getechsrl.com/en/products/flexo/antivibration-feet/tc-leveling-antivibrator-foot.html#sigProIdb57ea4cdbf
Flexo
Antivibration Feet
TC
Leveling Antivibrator Foot
Caratteristiche
BASE MATERIAL: Zinc Plated Steel
BASE TYPE: Antivibration
BASE OUTFIT: Base in NR
HARDNESS:75 ± 5 Shore
SPINDLE MATERIAL: Zinc Plated Steel
SPINDLE TYPE: Extractable
SPINDLE OUTIF: 2 ES24 nuts + 2 washers + ES32 nut

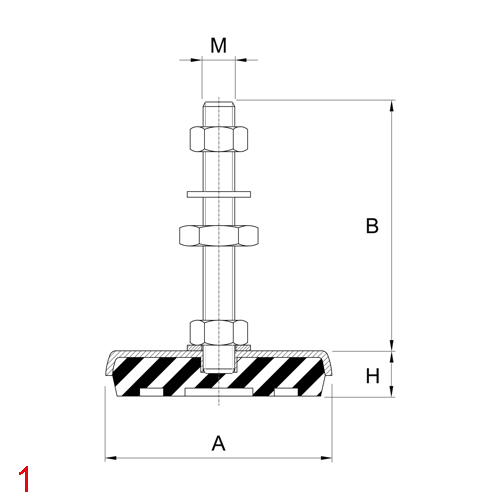

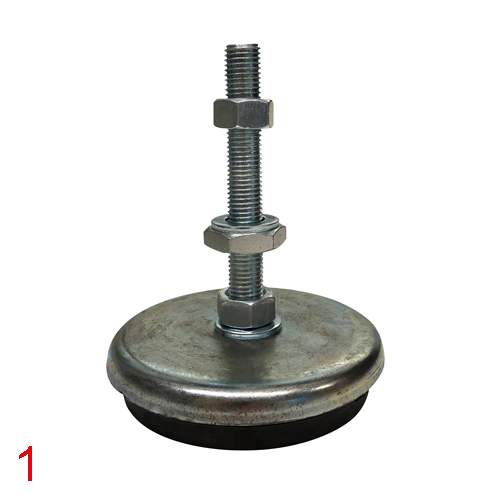

1. A4TC60; A4TC70; A4TC85; A4TC100; A4TC120

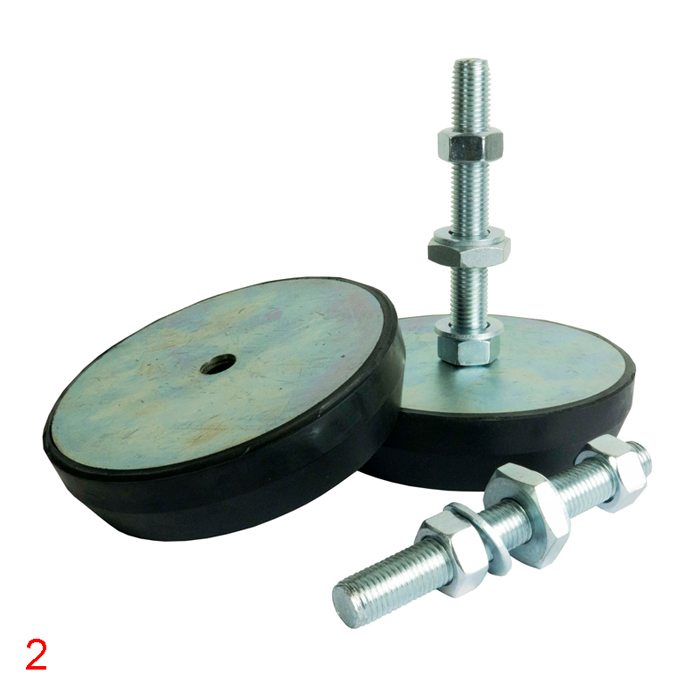

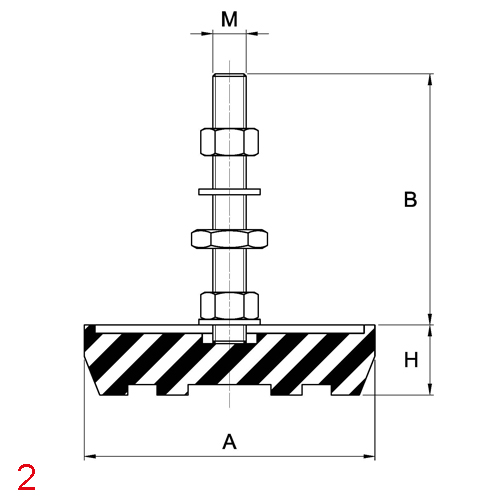

2. A4TC140; A4TC160
