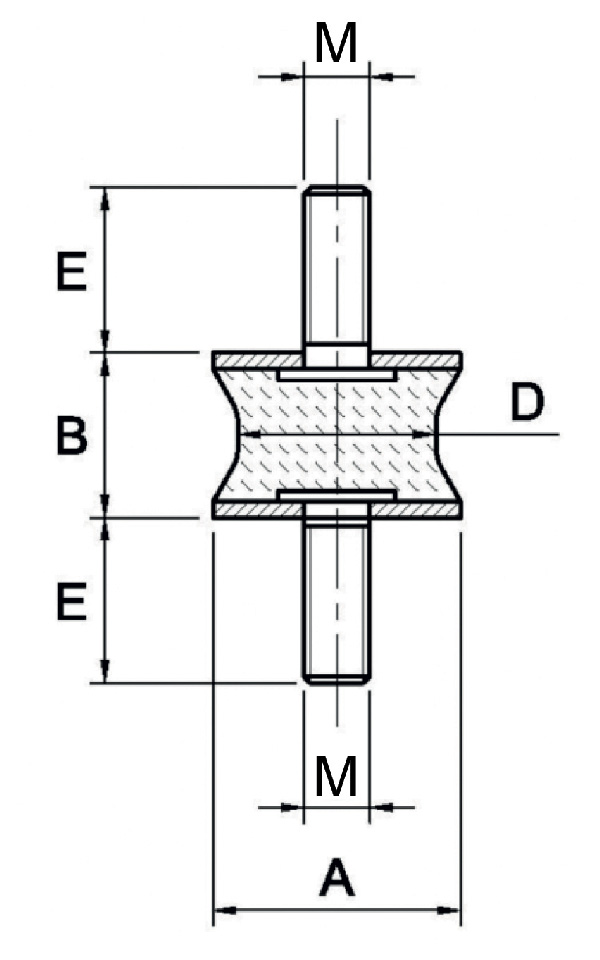

| COD. | A | B | M | D | E | Max Compression Load daN |
Max Shear Load daN |
| A2MS12 | 12 | 15 | 04MA | 7 | 10 | 3 | 0,8 |
| A2MS25 | 25 | 20 | 06MA | 10 | 18 | 50 | 3 |
| A2MS30 | 30 | 20 | 08MA | 20 | 20 | 60 | 10 |
| A2MS40 | 40 | 30 | 08MA | 19 | 20 | 80 | 6 |
| A2MS40L | 40 | 30 | 08MA | 27 | 20 | 100 | 8 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/machine-mounts/ms-sand-glass-mounting-double-male-60sh.html#sigProIdc4a5481a89
https://getechsrl.com/en/products/flexo/machine-mounts/ms-sand-glass-mounting-double-male-60sh.html#sigProIdc4a5481a89
Flexo
Machine Mounts
MS

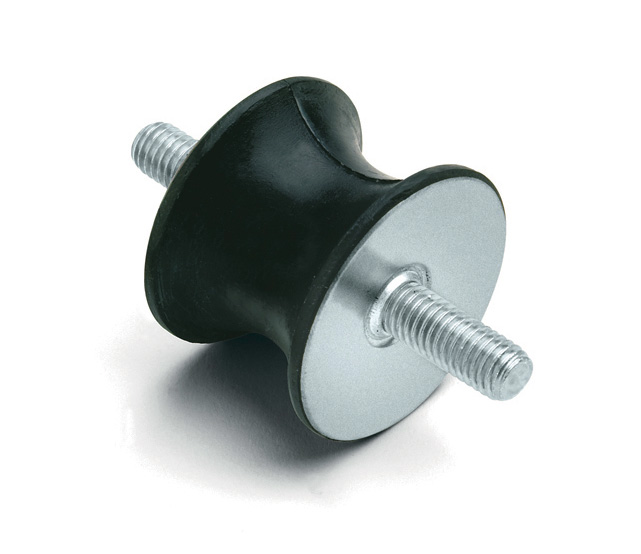

Sand-Glass Mounting Double Male 60SH
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths
METALLIC PART: Zinc plated screw and washer
STANDARD THREAD: Screw pressed on the washer
