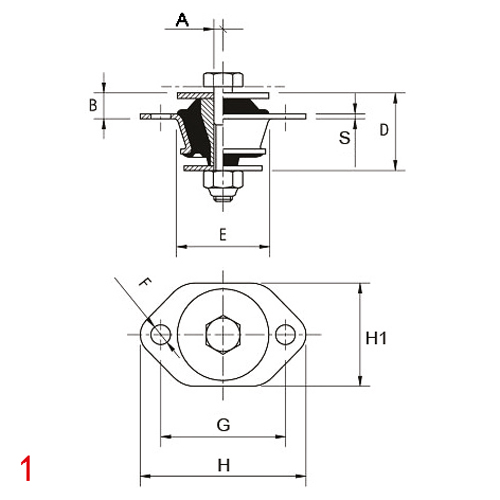

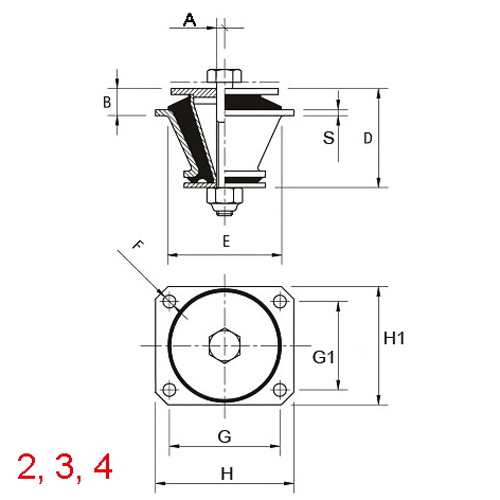

| COD. | A | B | S | D | E | F | H1 | H | G | G1 | Max Compression Load. daN |
| A2SB60 | 12 | 16,5 | 2,5 | 51 | 57 | 11x14 | 68 | 106 | 80 | nd | 150 |
| A2SB78 | 16 | 19,5 | 4 | 53 | 80 | 11 | 90 | 107 | 80 | 65 | 260 |
| A2SB93 | 16 | 20 | 4 | 73 | 94,5 | 11 | 101 | 120 | 90 | 74 | 700 |
| A2SB109 | 20 | 23 | 5 | 86 | 115 | 11 | 120 | 140 | 112 | 92 | 1250 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/machine-mounts/sb-conical.html#sigProId5bdda947e8
https://getechsrl.com/en/products/flexo/machine-mounts/sb-conical.html#sigProId5bdda947e8
Flexo
Machine Mounts
SB

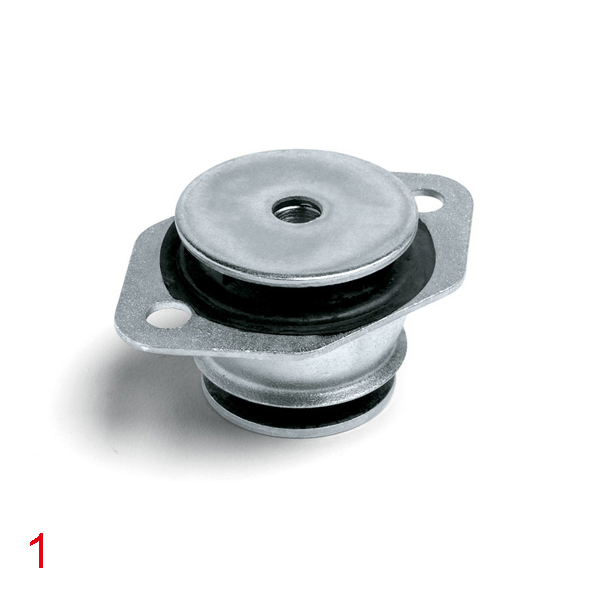

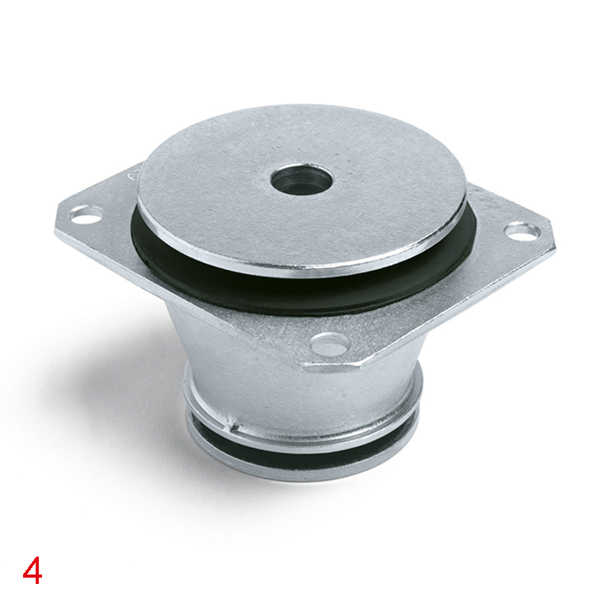

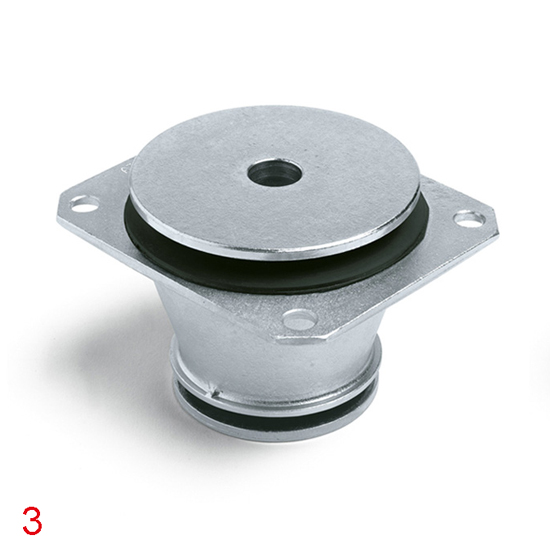

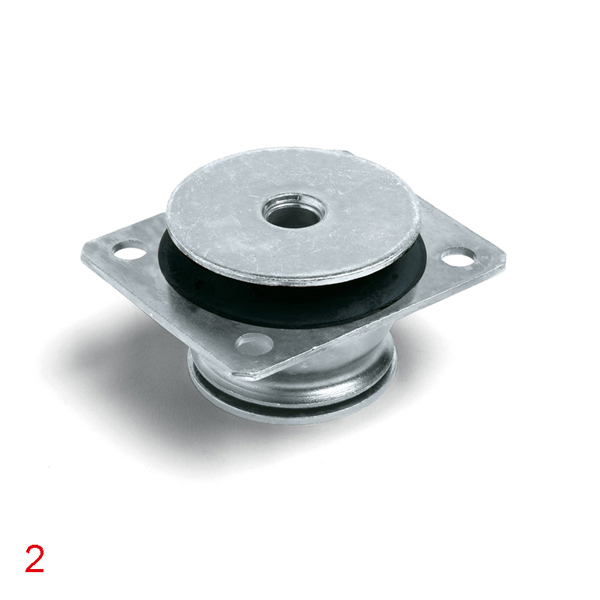

Conical Mount
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: 45 shore A hardness
METALLIC PART: Zinc plated steel
