Machine Mounts

SC/D

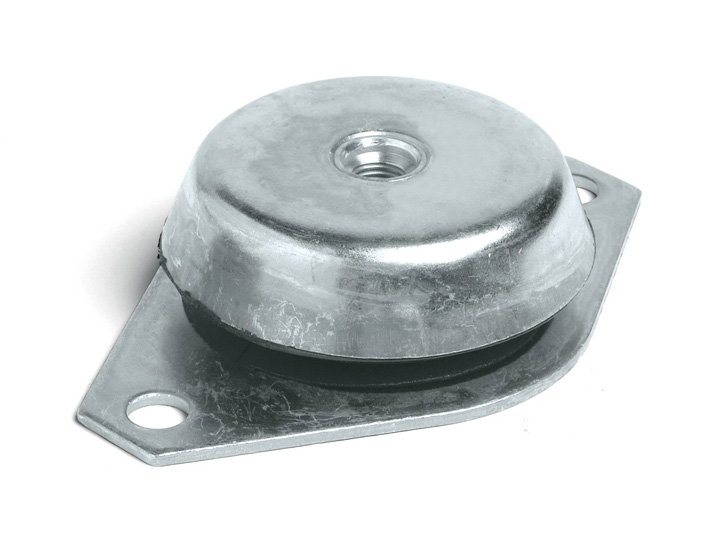

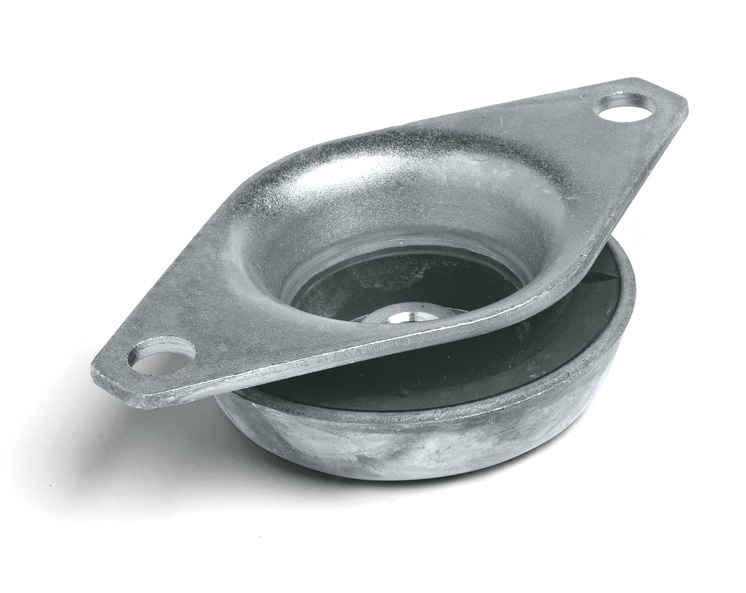

Bell Support with Threaded Nut

Product specification

VERSION: With welded threaded nut
MAIN PART MATERIAL: NR/SBR rubber compound
HARDNESS TOLERANCE: +/- 5 SH
METALLIC PART: Zinc plated steel sheet
FIELDS OF APPLICATION: power generators and pumps, engines, machinery support

Specific Features

The SC/D Bell Support with Threaded Nuts is a great performer in heavy applications - thanks to its design it has excellent vibration isolation values even under high static loads.

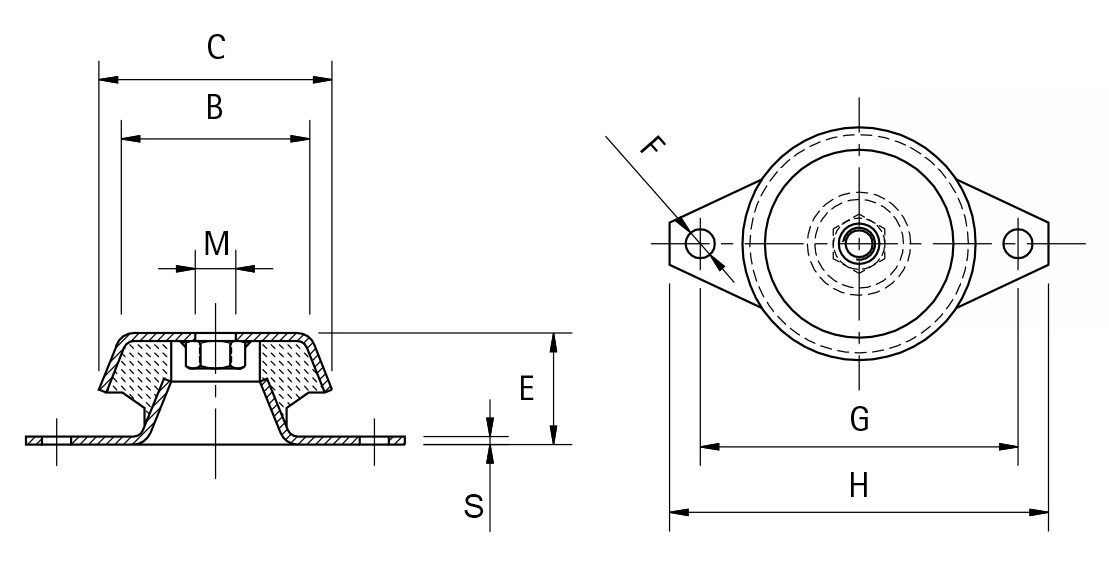

COD.	M	C	B	G	H	F	E	S	Hardness Shore A	Max Load daN
A2SC60/10	10MA	62	50	85	100	10	30	2	60	192
A2SC60/12	12MA	62	50	85	100	10	30	2	60	192
A2SC90/12	12MA	92	72	110	130	10	44	3	60	380
A2SC90/14	14MA	92	72	110	130	10	44	3	60	380
A2SC90/16	16MA	92	72	110	130	10	44	3	60	380
A2SC120/16	16MA	119	95	160	190	16	49	4	60	787
A2SC120/24	24MA	119	95	160	190	16	49	4	60	187
A2SC60/10-45	10MA	62	50	85	100	10	30	2	45	120
A2SC60/12-45	12MA	62	50	85	100	10	30	2	45	120
A2SC90/12-45	12MA	92	72	110	130	10	44	3	45	266
A2SC90/14-45	14MA	92	72	110	130	10	44	3	45	266
