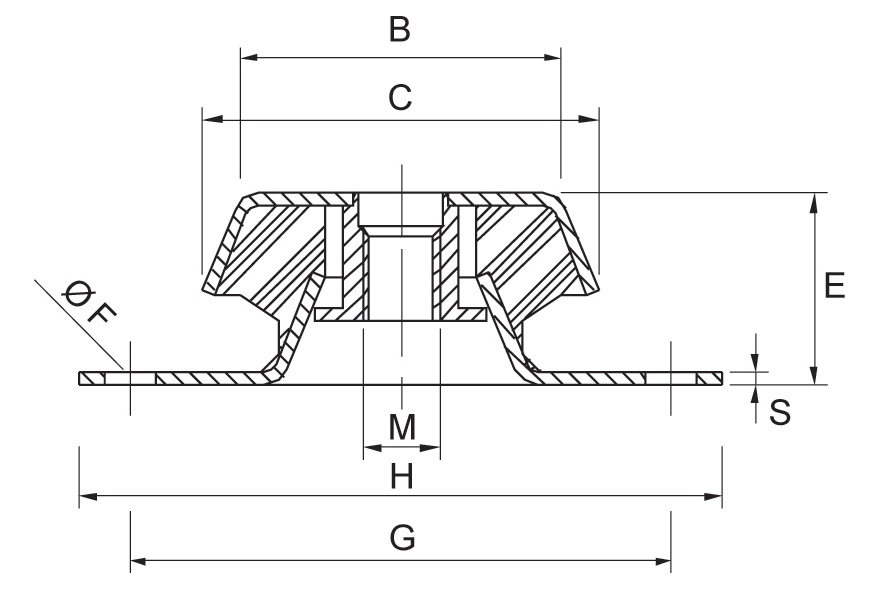

| COD. | A | C | B | G | H | F | E | S | Hardness Shore A | Max Load daN |
| A2SCT60/10 | 10MA | 62 | 50 | 85 | 100 | 8 | 30 | 2 | 60 | 192 |
| A2SCT90/12 | 12MA | 92 | 72 | 110 | 130 | 10 | 44 | 3 | 60 | 380 |
| A2SCT90/16 | 16MA | 92 | 72 | 110 | 130 | 10 | 44 | 3 | 60 | 380 |
| A2SCT120/16 | 16MA | 119 | 95 | 160 | 190 | 16 | 49 | 4 | 60 | 787 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/machine-mounts/sct-tear-resistant-bell-support.html#sigProId06e0d585e0
https://getechsrl.com/en/products/flexo/machine-mounts/sct-tear-resistant-bell-support.html#sigProId06e0d585e0
Flexo
Machine Mounts
SCT

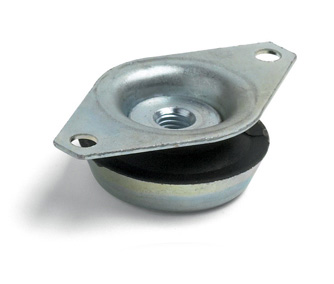

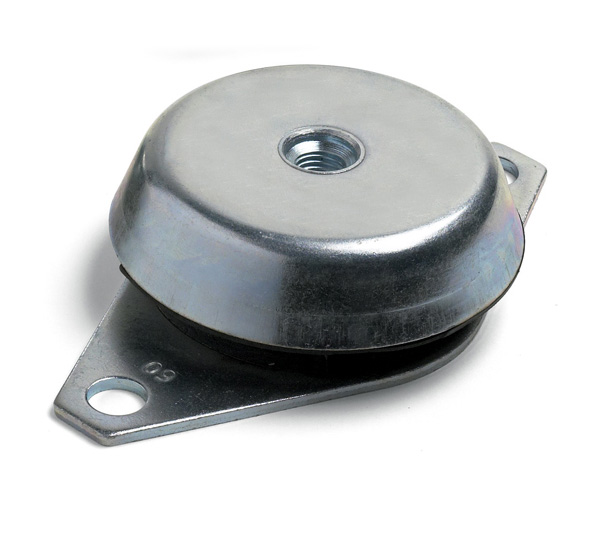

Tear Resistant Bell Support
Product specification
VERSION: With vulcanized threaded shock-absorber
MAIN PART MATERIAL: NR/SBR rubber compound
HARDNESS TOLERANCE: +/- 5 SH
METALLIC PART: Zinc plated steel sheet
Specific Features:
The SCT model, which has the same external dimensions of the SC model, includes an antivibration pad with failsafe. This leads to a reliable machine fixing that prevents detachment even in case of strong tearing and vibrations (for example when firing-up a powerful combustion engine).
