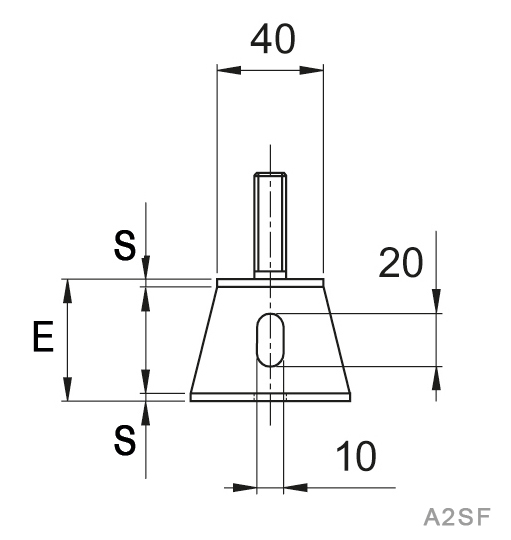

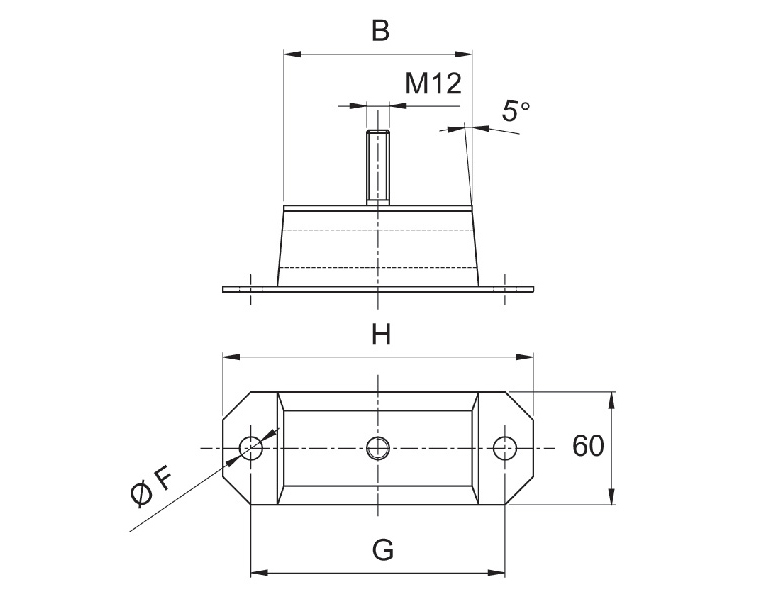

| COD. | B | G | H | F | E | Max Load daN | |
| A2SF50 | 50 | 85 | 115 | 12,2 | 45 | 300 | |
| A2SF100 | 100 | 135 | 165 | 12,2 | 45 | 500 | |
| *A2SFF100 | 100 | 135 | 165 | 12,2 | 24 | 500 | |
| A2SF150 | 150 | 185 | 215 | 12,2 | 46 | 750 | |
| A2SF200 | 200 | 235 | 265 | 12,2 | 46 | 1000 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/machine-mounts/sf-rectangular-antivibration-support.html#sigProId520a288189
https://getechsrl.com/en/products/flexo/machine-mounts/sf-rectangular-antivibration-support.html#sigProId520a288189
Flexo
Machine Mounts
SF - SFF

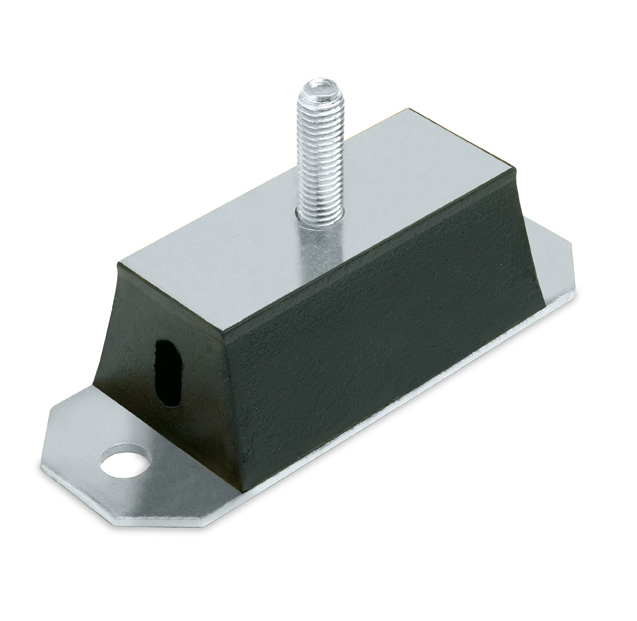

Rectangular Antivibration Support
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: 45 shore A hardness
METALLIC PART: Zinc plated steel sheet
STANDARD THREAD: With screw MA 12x37

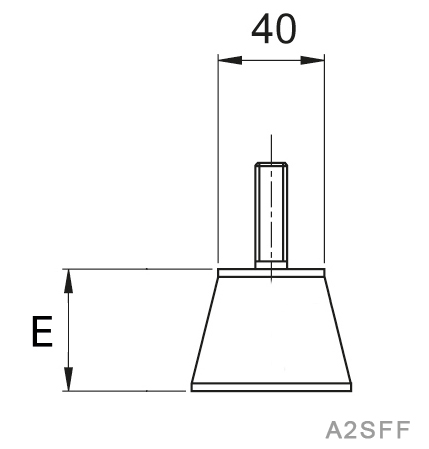

ART. A2SFF100 with extractable screw
