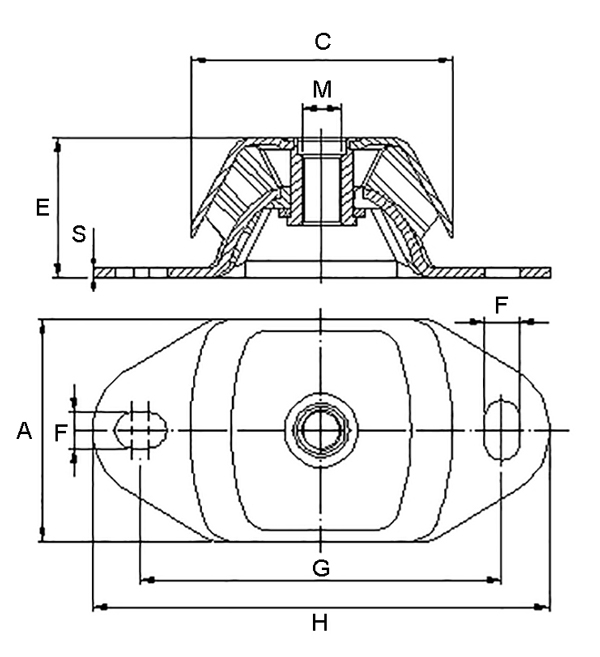

| COD. | M | C | A | G | H | F | E | S |
Hardness SHORE A |
Max Load daN |
| A2SMAR80/12 | 12MA | 80 | 60 | 100 | 120 | 11 | 38 | 3 | 55 | 70 |
| A2SMAR100/16 | 16MA | 103,5 | 75 | 140 | 186 | 13 | 52 | 4 | 55 | 160 |
| A2SMAR130/20 | 20MA | 132 | 112 | 182 | 230 | 18 | 71 | 5 | 55 | 700 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/machine-mounts/smar-marine-mount.html#sigProId7fce255d39
https://getechsrl.com/en/products/flexo/machine-mounts/smar-marine-mount.html#sigProId7fce255d39
Flexo
Machine Mounts

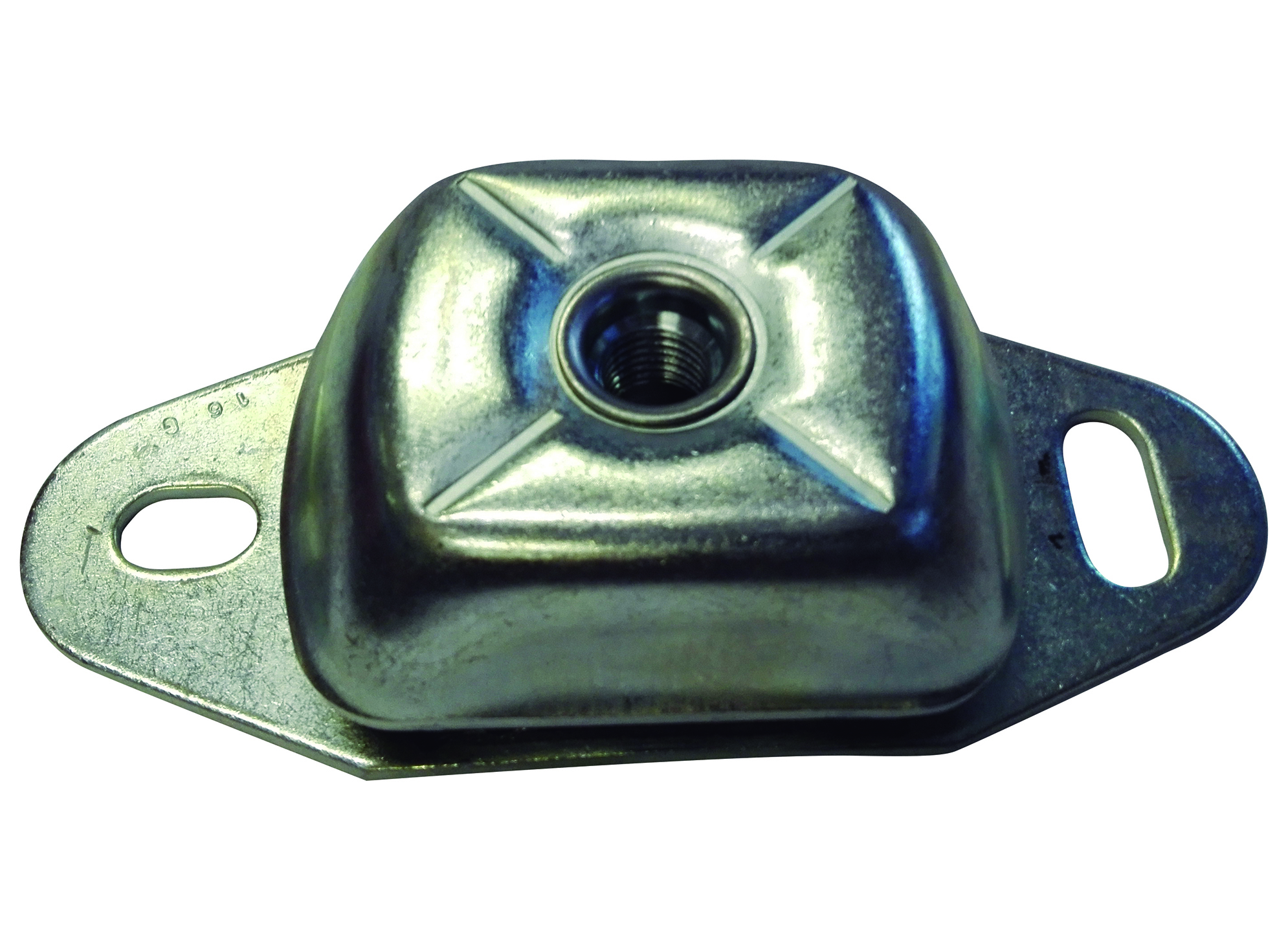

SMAR
Marine Mount
Caratteristiche
VERSION: With vulcanized shock-absorber and pressed rivet
MAIN PART MATERIAL: NR/SBR rubber compound
HARDNESS TOLERANCE:+/- 5 SH
ON REQUEST: 40-45 SH OR 65-70 SH A
METALLIC PART: Zinc plated steel sheet
ON REQUEST: AISI 304 Stainless Steel
MAIN FIELD OF APPLICATION: Marine applications
OTHER FIELDS OF APPLICATIONS: Earthmoving machines, wind power generator cells, pumps, compressors and power generators
Specific Features
The SMAR machine mount has been designed mainly for marine applications like boat engines. Thanks to its special execution it has a very effective vibration and noise isolation in case of high static and dynamic loads.
.
