| Code | Code INOX | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | Fh1 (daN) | Fh2 (daN) | gr |
| 2S.O75/ML | 2S.O75/MLX | 118 | 37 | 20 | 39 | 26 | 28 | 16-19 | 13,5 | 5,3 | 11 | 2 | 20 | M5 | 4,5 | 90 | 135 | 90 | |
| 2S.O130/ML | 2S.O130/MLX | 171,5 | 51 | 30,5 | 56,5 | 40 | 36 | 22,4-28,4 | 26 | 6,3 | 16 | 2,5 | 32 | M6 | 5,6 | 100 | 200 | 200 | |
| 2S.O230/ML | 2S.O230/MLX | 196 | 61,5 | 36,5 | 65 | 44 | 44 | 26-31,5 | 26 | 8,5 | 18 | 3 | 37 | M8 | 6,6 | 170 | 330 | 320 | |
| 2S.O355/ML | 269 | 83 | 50 | 100 | 58 | 60 | 38,8-43 | 41 | 10,5 | 22 | 3,5 | 58 | M10 | 8,6 | 180 | 400 | 750 | ||
| 2S.O455/ML | 308 | 99 | 60 | 114 | 65 | 70 | 40-43 | 41,5 | 12,5 | 26 | 4 | 65 | M12 | 8,7 | 320 | 620 | 1200 | ||
| 2S.O75/OL | 2S.O75/OLX | 118,5 | 37 | 20 | 39,5 | 26 | 28 | 16-19 | 13,5 | 4 | 11 | 2 | M5 | 4,5 | 90 | 135 | 90 | ||
| 2S.O130/OL | 2S.O130/OLX | 172 | 51 | 30,5 | 57 | 40 | 36 | 22,4-28,4 | 26 | 5 | 16 | 2,5 | M6 | 5,6 | 100 | 200 | 200 | ||
| 2S.O230/OL | 2S.O230/OLX | 196,5 | 61,5 | 36,5 | 66 | 44 | 44 | 26-31,5 | 26 | 6 | 18 | 3 | M8 | 6,6 | 170 | 330 | 330 | ||
| 2S.O355/OL | 270 | 83 | 50 | 101 | 58 | 60 | 38,8-43 | 41 | 7 | 22 | 3,5 | M10 | 8,6 | 180 | 400 | 750 | |||
| 2S.O455/OL | 306,5 | 99 | 60 | 115,5 | 65 | 70 | 40-43 | 41,5 | 10 | 26 | 4 | M12 | 8,7 | 320 | 620 | 1220 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/ml-ol-horizontal-toggle-clamp-with-folded-base-and-anti-release-lever.html#sigProIdb2cc3ed535
https://getechsrl.com/en/products/hyrax/toggle-clamps/ml-ol-horizontal-toggle-clamp-with-folded-base-and-anti-release-lever.html#sigProIdb2cc3ed535
Hyrax - Outlet
Toggle Clamps
ML - OL

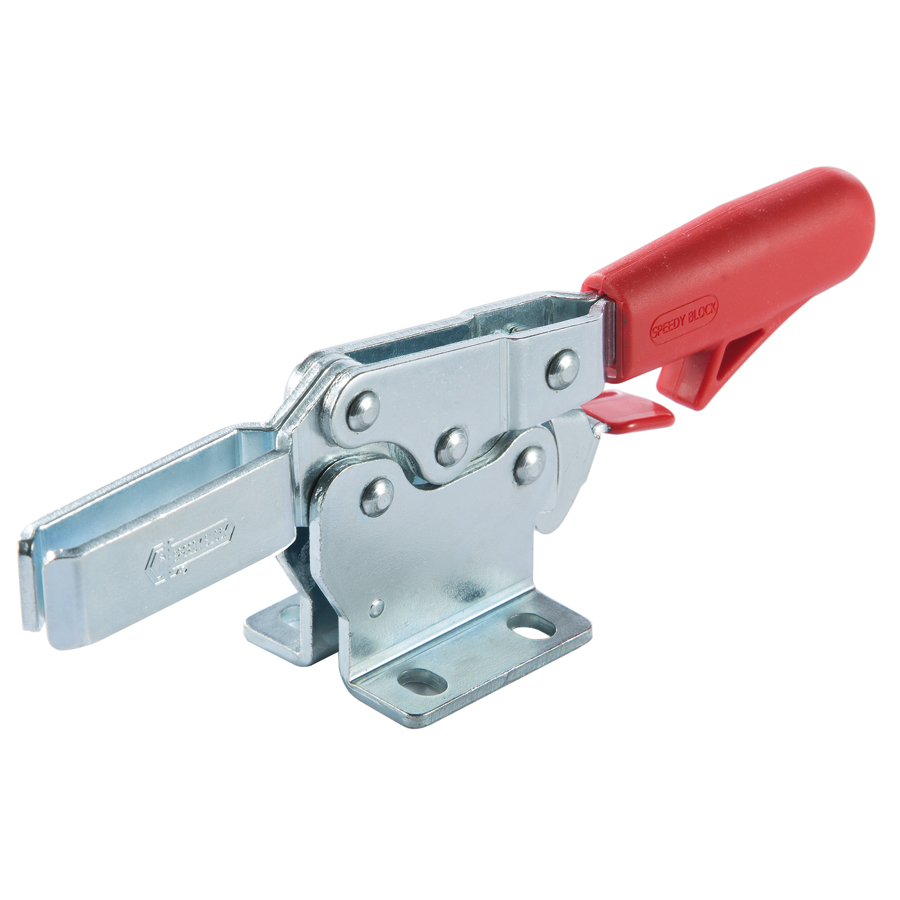

Horizontal Toggle Clamp with Folded Base and Anti-release Lever
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.O75/MLX)
Features and applications
In this series the special anti-release lever is avoiding any accidental opening caused by vibrations. An important feature of horizontal toggle clamps is the low profile of the tool, which becomes essential when clearance above the tool is required. In addition to this, horizontal toggle clamps are also designed to keep the operator's fingers safe from the levers while opening. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses while working on the component.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Galvanized steel or AISI 304 stainless steel
Riveted pivots: Galvanized steel or AISI 304 stainless steel
Supporting bushes: Hardened and ground steel (for sizes >=355)
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
Performance:

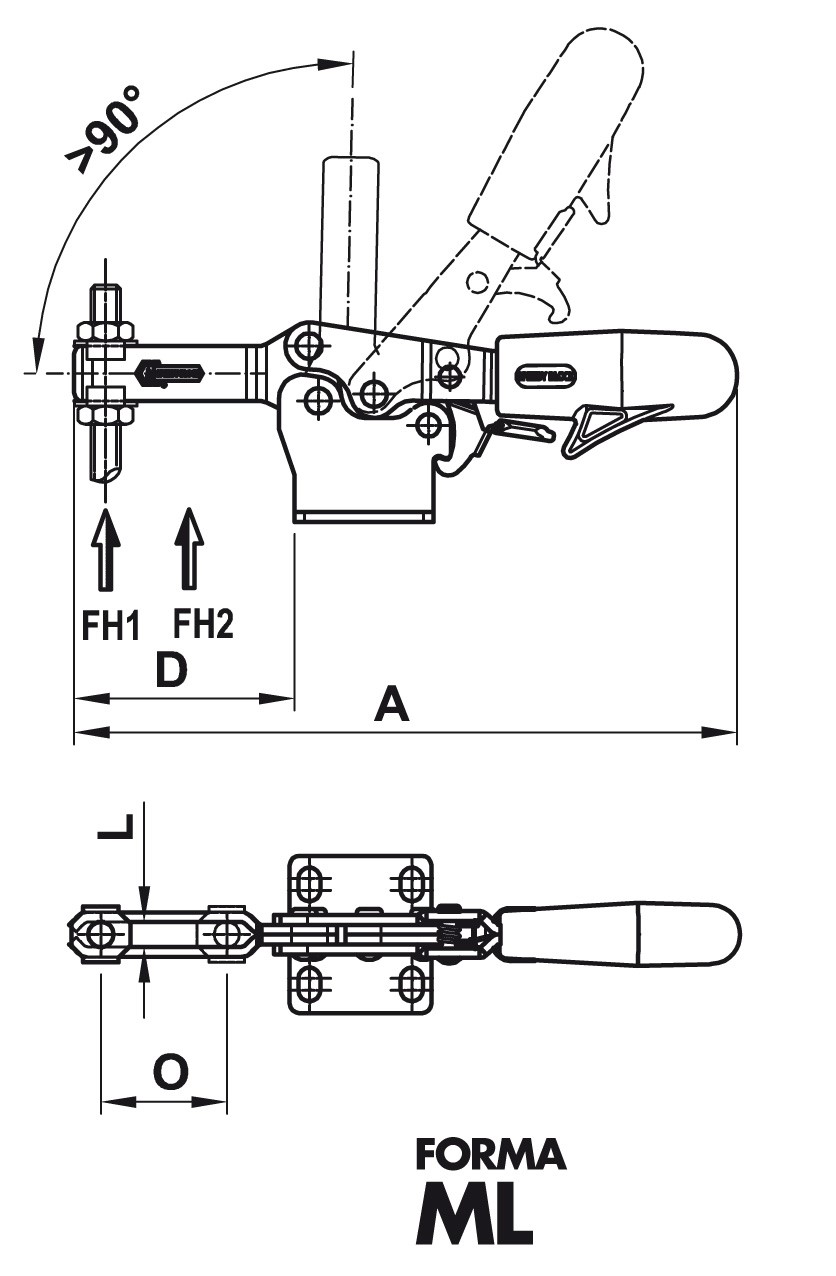

Form ML and form MLX with open clamping lever and two flanged washers.

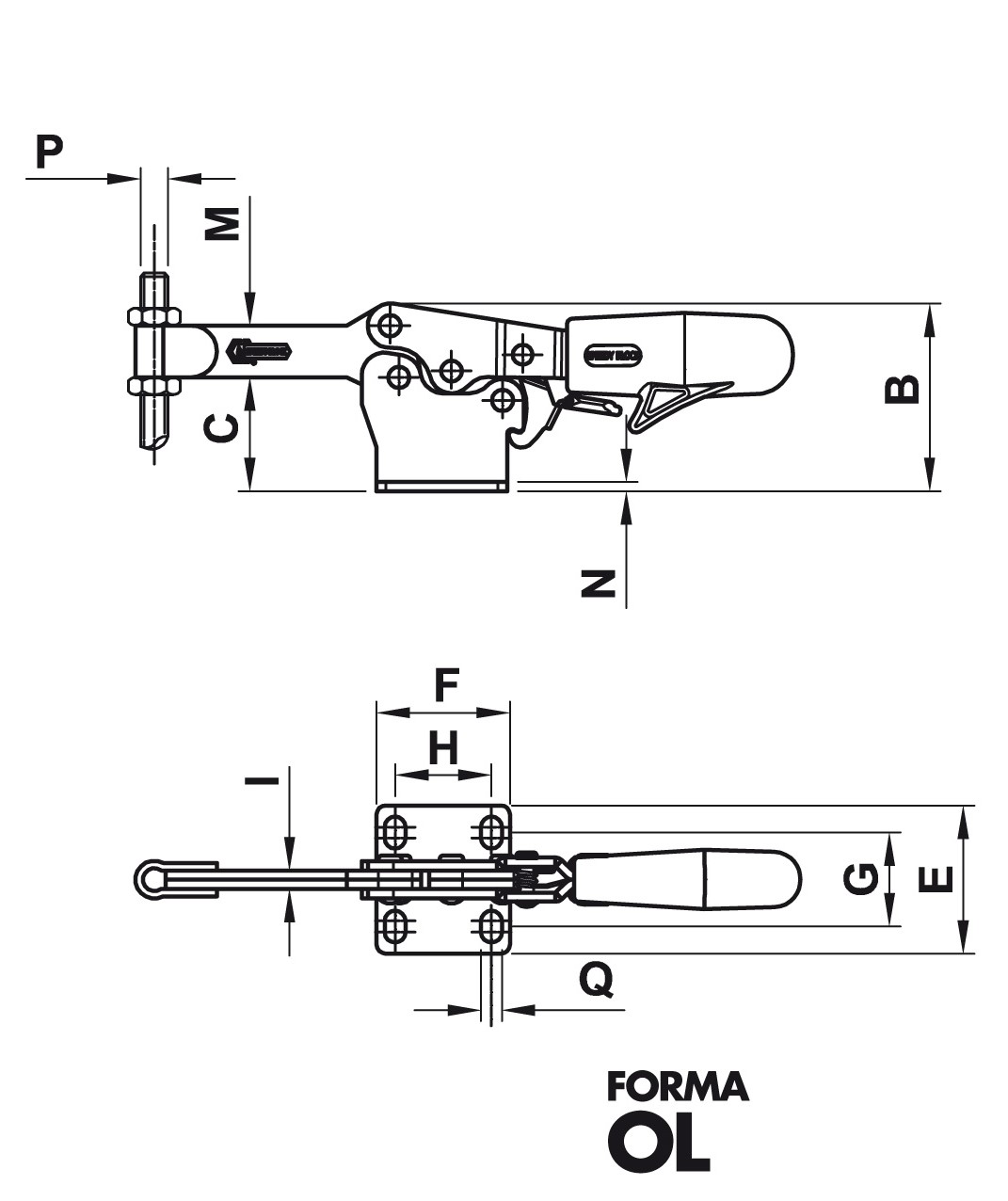

Form OL and form OLX with full clamping lever and bolt retainers to be welded in the desired position and angle.
