Click to enlarge image 1_BV_disegno.jpg

  • Click to enlarge image 1_BV_disegno.jpg
  • Click to enlarge image BIFILARE-A-VITE.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/bv-double-wire-screw-clamp-w1.html#sigProIddecfb1cbfa
Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

BV

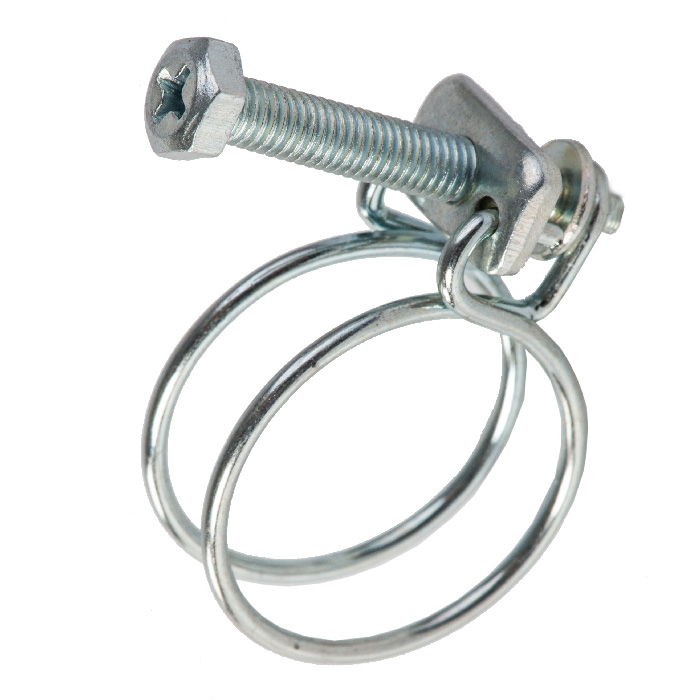

Double Wire Screw Clamp W1

Product specification

MATERIAL: Zinc plated steel W1
USE: Hose clamp recommended for hoses with spiral reinforcement in relief. They guarantee an optimal tightening even with very soft hoses or those with a thin thickness



UPON REQUEST

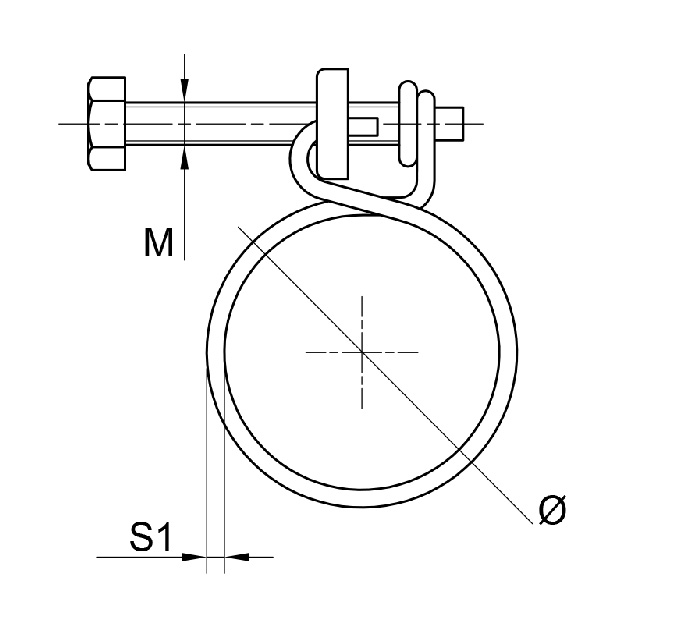

 COD. Ø  min. mm Ø  max. mm M S1 mm
BV0095 9,5 12 3 1,5
BV0115 11,5  14  3 1,5
BV0125 12,5 15 3 1,5
BV0130 13 16 3 1,8
BV0155 15,5 19 3 1,8
BV0170 17 20 3 1,8
BV0185 18 22 4 2
BV0190 19,5 23 4 2
BV0215 21,5 25 4 2
BV0235 23,5 27 4 2,2
BV0250 25 29 4 2,2
BV0270 27 31 4 2,2
BV0305 30,5 35 4 2,2
BV0355 35,5 40 4 2,2
BV0435 43,5 49 5 2,5
BV0980 98 105 8 2,8
BV1450 145 160 6 2.4







Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
