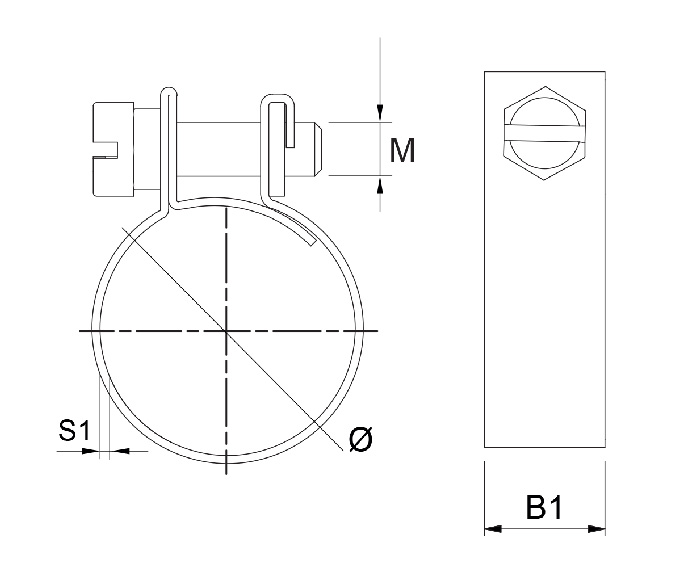

Click to enlarge image 1_CBZ_disegno.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/cbz-zinc-plated-mini-clamp.html#sigProIdccf5a3b34a

Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

CBZ

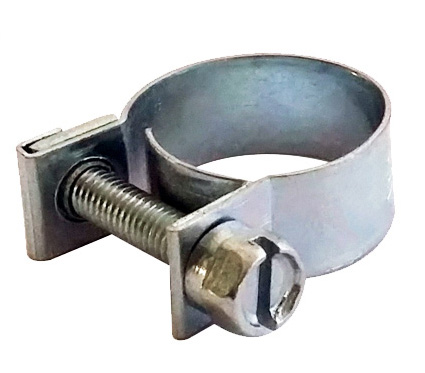

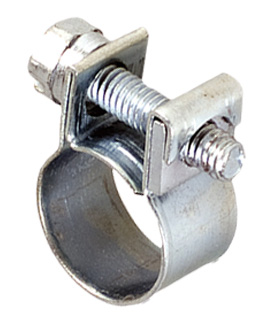

Zinc Plated Mini Clamp

Product specification

BAND, CARTER AND NUT MATERIAL: Galvanized Steel
BAND FEATURES: Smooth band
SCREW FEATURES: Bolt with slot and hexagonal head

COD. W1	Ø min. mm	Ø max. mm	B1 mm	M	S1 mm	Safe Working Torque Nm	Q.ty
CBZ07	7	9	9	4	0,5 - 1	1 Nm	100
CBZ08	8	10	9	4	0,5 - 1	1 Nm	100
CBZ09	9	11	9	4	0,5 - 1	1 Nm	100
CBZ10	10	12	9	4	0,5 - 1	1 Nm	100
CBZ11	11	13	9	4	0,5 - 1	1 Nm	100
CBZ12	12	14	9	4	0,5 - 1	1 Nm	100
CBZ13	13	15	9	4	0,5 - 1	1 Nm	100
CBZ14	14	16	9	4	0,5 - 1	1 Nm	100
CBZ15	15	17	9	4	0,5 - 1	1 Nm	100
CBZ16	16	18	9	4	0,5 - 1	1 Nm	100
CBZ17	17	19	9	4	0,5 - 1	1 Nm	100
CBZ18	18	20	9	4	0,5 - 1	1 Nm	100
CBZ19	19	21	9	4	0,5 - 1	1 Nm	100
CBZ22	22	25	9	4	0,5 - 1	1 Nm	100
CBZ28	28	31	9	4	0,5 - 1	1 Nm	100
CBZ29	29	32	9	4	0,5 - 1	1 Nm	100
CBZ31	31	34	9	4	0,5 - 1	1 Nm	100
