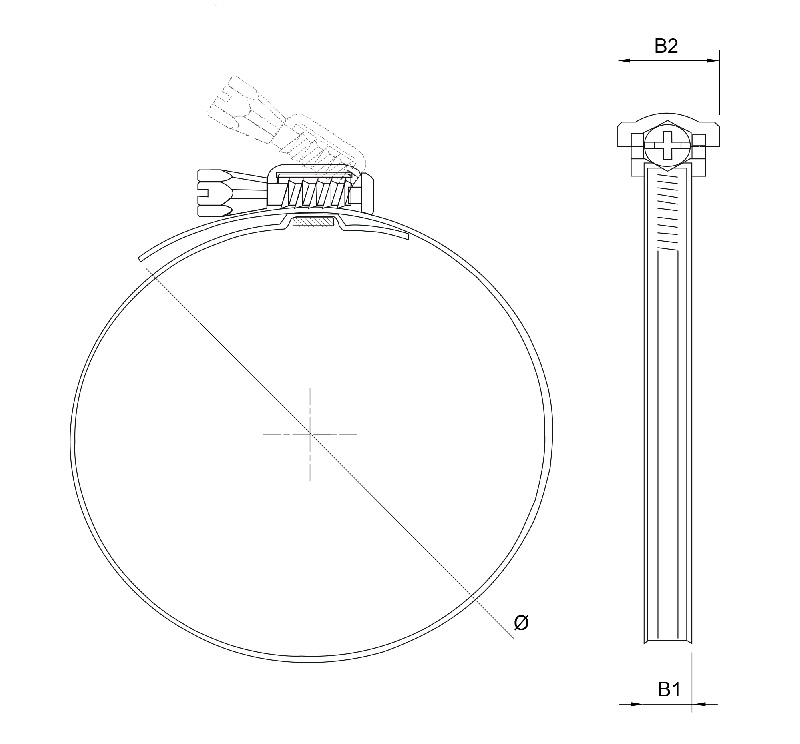

Click to enlarge image 1_FR-GR_disegno.jpg

  • Click to enlarge image 1_FR-GR_disegno.jpg

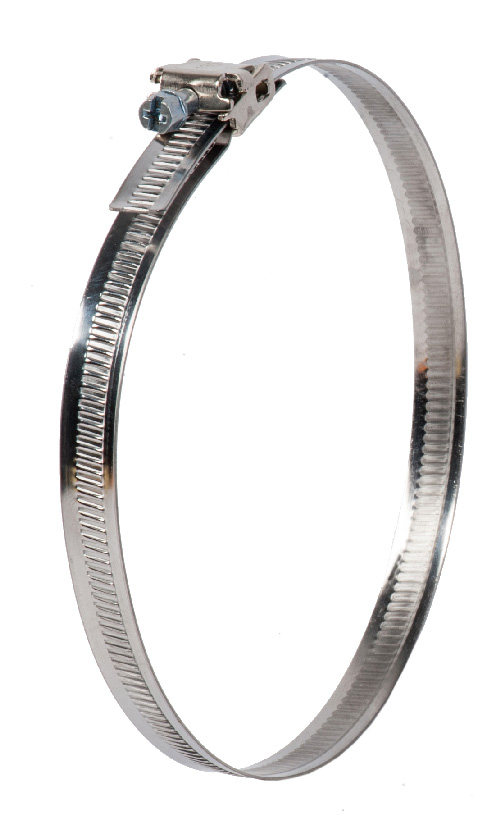

  • Click to enlarge image FR-GR_1.jpg

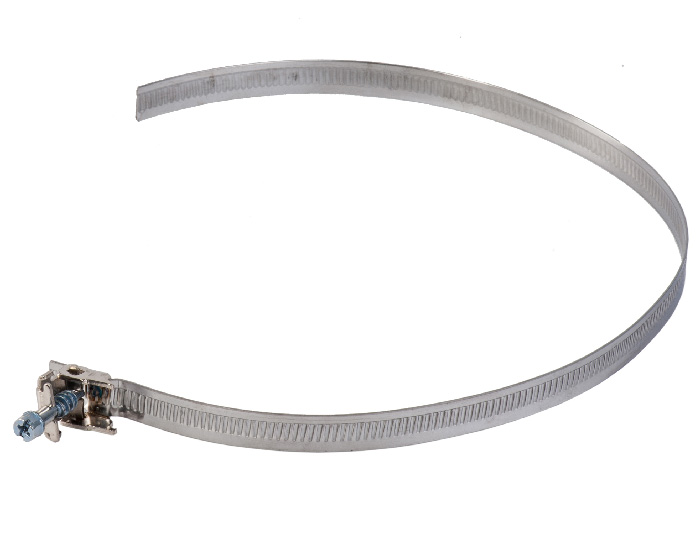

  • Click to enlarge image FR-GR_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/fr-gr-fast-release-hose-clamp-w2.html#sigProIdec5fbaf90a
Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

FR - GR
Fast Release Hose Clamp W2

Product specification

BAND, HOUSING MATERIAL:  Zinc plated steel AISI 430
SCREW MATERIAL: Carbon steel
BAND FEATURES: Threaded Band
SCREW FEATURES: Hexagonal head with slot  and cross

 COD. W1 Ø  min. mm Ø  max. mm B1 mm B2 mm Safe Working Torque  Q.ty
FR080 60 80 9 16,4 3 Nm 50
FR090 60 90 9 16,4 3 Nm 50
FR110 60 110 9 16,4 3 Nm 50
FR135 60 135 9 16,4 3 Nm 50
FR150 60 150 9 16,4 3 Nm 50
FR180 60 180 9 16,4 3 Nm 50
FR215 60 215 9 16,4 3 Nm 50
FR275 60 275 9 16,4 3 Nm 50
FR325 60 325 9 16,4 3 Nm 50
GR080 60 80  12 19,4 5 Nm 50
GR090 60 90 12 19,4 5 Nm 50
GR100 60 100 12 19,4 5 Nm 50
GR110 60 110 12 19,4 5 Nm 50
GR135 60 135 12 19,4 5 Nm 50
GR150 60 150 12 19,4 5 Nm 50
GR175 60 175 12 19,4 5 Nm 50
GR215 60 215 12 19,4 5 Nm 50
GR275 60 275 12 19,4 5 Nm 50
GR325 60 325 12 19,4 5 Nm 50





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
