Kiudo

Worm Drive Hose Clamps

FX

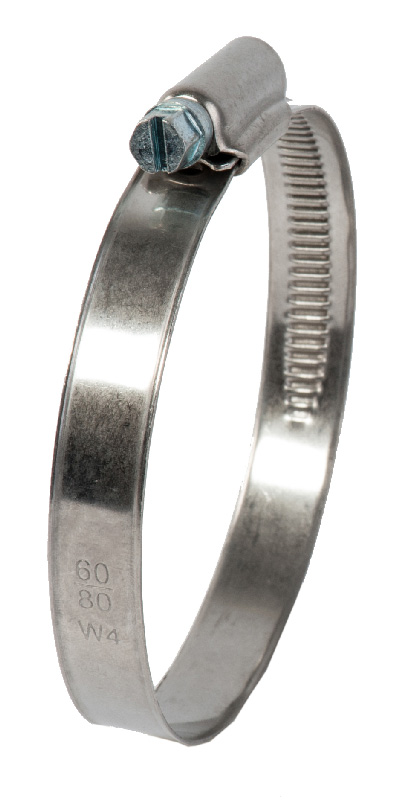

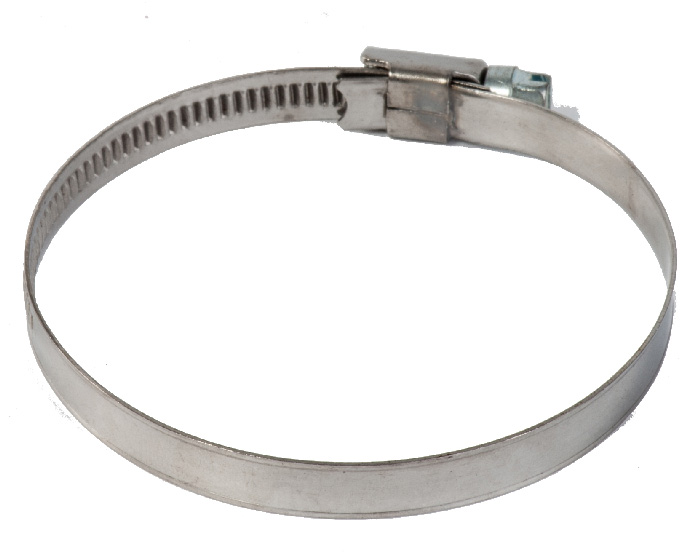

Worm Drive Hose Clamp - Band 9 mm

Product specification:

W4: AISI 304 band carter and slot screw - spanner 7

Band features:

Threaded band pressed and raised, rounded edges

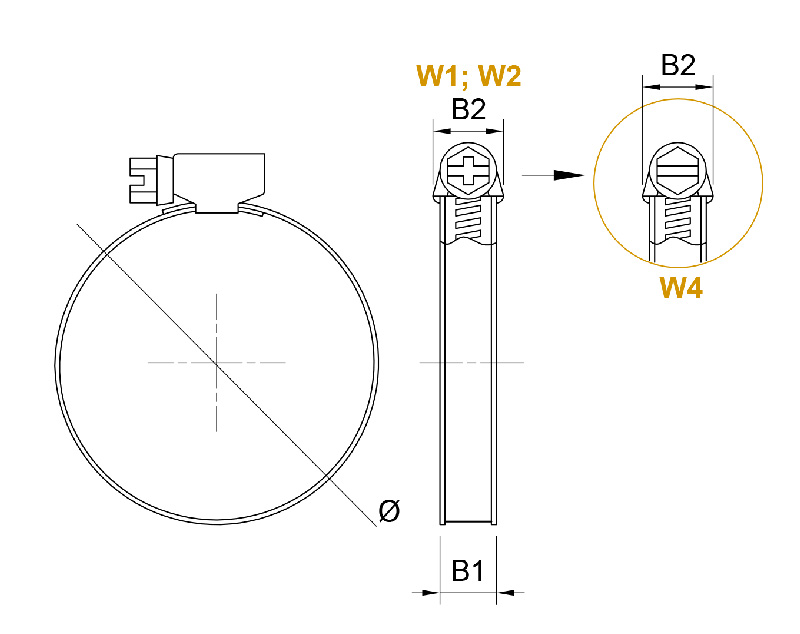

COD. W4	Ø min. mm	Ø max. mm	B1 mm	B2 W4 mm	Safe Working Torque Nm	Q.ty
FX008	8	12	9	11,5	3 Nm	100
FX010	10	16	9	11,5	3 Nm	100
FX012	12	20	9	11,5	3 Nm	100
-	12	22	9	-	3 Nm	100
FX016	16	27	9	11,5	3 Nm	100
FX020	20	32	9	11,5	3 Nm	100
FX025	25	40	9	11,5	3 Nm	100
-	30	45	9	11,5	3 Nm	100
FX032	32	50	9	11,5	3 Nm	50
FX040	40	60	9	11,5	3 Nm	50
FX050	50	70	9	11,5	3 Nm	50
FX060	60	80	9	11,5	3 Nm	50
FX070	70	90	9	11,5	3 Nm	25
FX080	80	100	9	11,5	3 Nm	25
FX090	90	110	9	11,5	3 Nm	25
FX100	100	120	9	11,5	3 Nm	25
FX110	110	130	9	11,5	3 Nm	25
FX120	120	140	9	11,5	3 Nm	25
FX130	130	150	9	11,5	3 Nm	25
FX140	140	160	9	11,5	3 Nm	25
FX150	150	170	9	11,5	3 Nm	25
FX160	160	180	9	11,5	3 Nm	25
FX170	170	190	9	11,5	3 Nm	25
FX180	180	200	9	11,5	3 Nm	25
FX190	190	210	9	11,5	3 Nm	25
FX200	200	220	9	11,5	3 Nm	25
FX210	210	230	9	11,5	3 Nm	25
FX230	230	250	9	11,5	3 Nm	25
