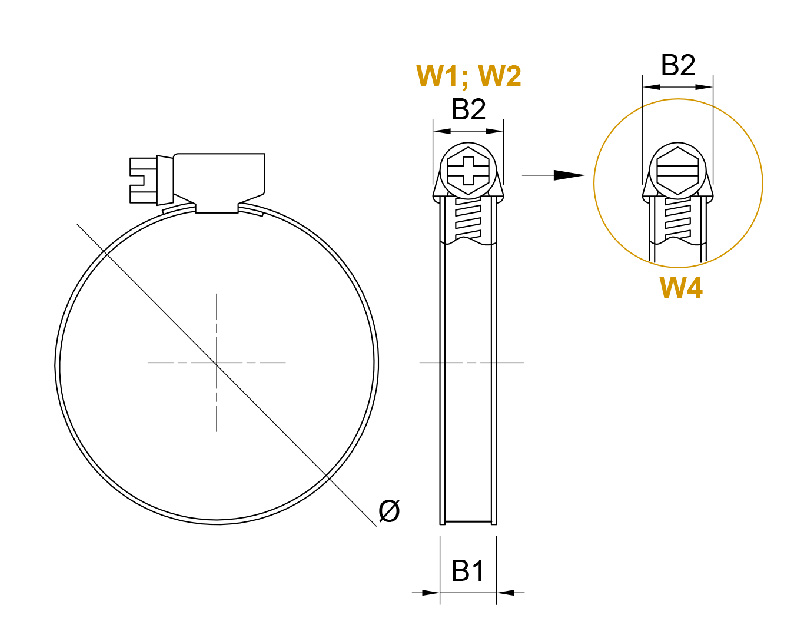

Click to enlarge image 1 disegno-tecnico_FASCETTE w1-w2-w4.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/fz-worm-drive-hose-clamp-band-9-mm.html#sigProId5ddb59f812

Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

FZ

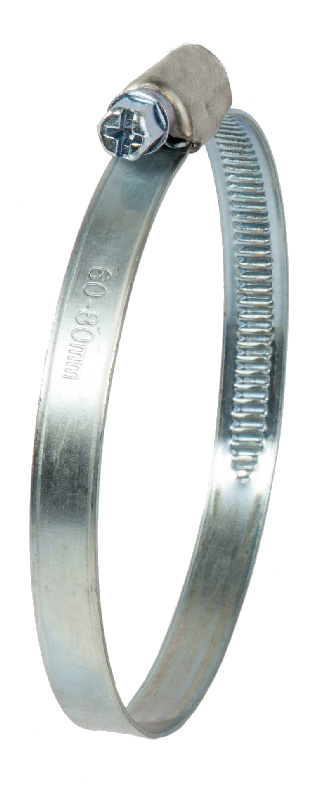

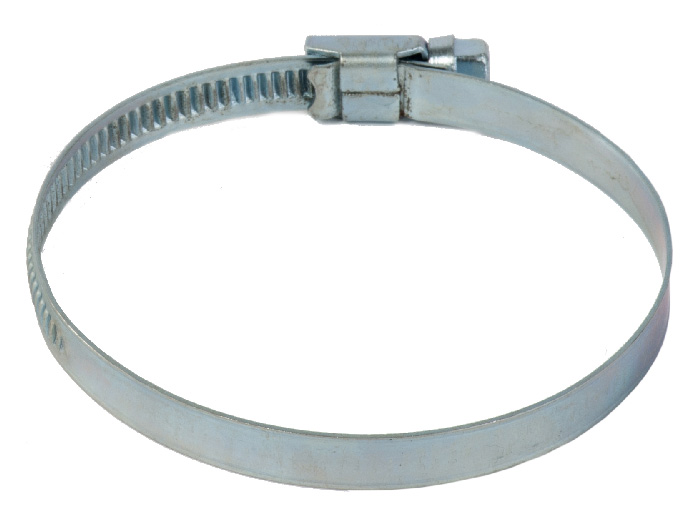

Worm Drive Hose Clamp - Band 9 mm

Product specification:

W1: Zinc plated band, carter and cross screw - spanner 7

Band features:

Threaded band pressed and raised, rounded edges

COD. W1	Ø min. mm	Ø max. mm	B1 mm	B2 W1 mm	Safe Working Torque Nm	Q.ty
FZ008	8	12	9	12	3 Nm	100
FZ010	10	16	9	12	3 Nm	100
FZ012	12	20	9	12	3 Nm	100
-	12	22	9	-	3 Nm	100
FZ016	16	27	9	12	3 Nm	100
FZ020	20	32	9	12	3 Nm	100
FZ025	25	40	9	12	3 Nm	100
FZ030	30	45	9	12	3 Nm	100
FZ032	32	50	9	12	3 Nm	50
FZ040	40	60	9	12	3 Nm	50
FZ050	50	70	9	12	3 Nm	50
FZ060	60	80	9	12	3 Nm	50
FZ070	70	90	9	12	3 Nm	25
FZ080	80	100	9	12	3 Nm	25
FZ090	90	110	9	12	3 Nm	25
FZ100	100	120	9	12	3 Nm	25
FZ110	110	130	9	12	3 Nm	25
FZ120	120	140	9	12	3 Nm	25
FZ130	130	150	9	12	3 Nm	25
FZ140	140	160	9	12	3 Nm	25
FZ150	150	170	9	12	3 Nm	25
FZ160	160	180	9	12	3 Nm	25
FZ170	170	190	9	12	3 Nm	25
FZ180	180	200	9	12	3 Nm	25
FZ190	190	210	9	12	3 Nm	25
-	200	220	9	-	3 Nm	25
-	210	230	9	-	3 Nm	25
-	230	250	9	-	3 Nm	25
