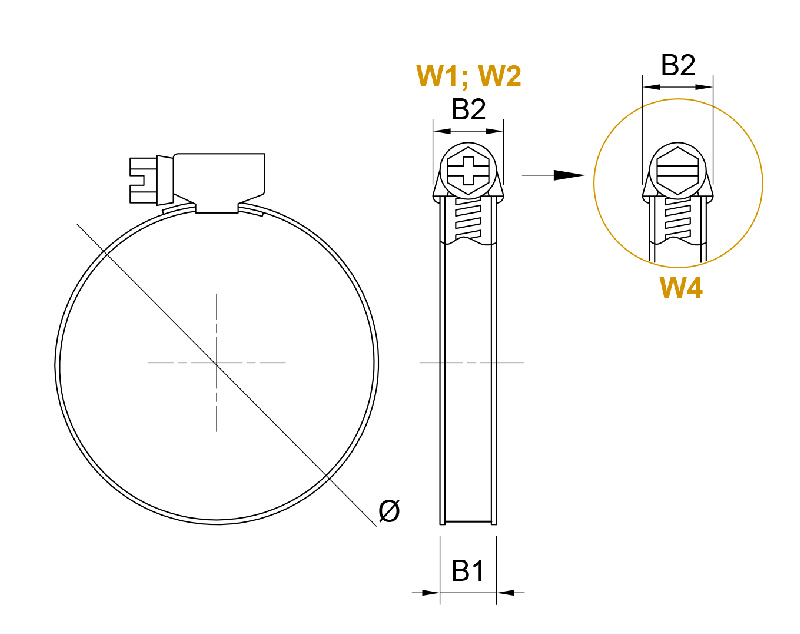

Click to enlarge image 1 disegno-tecnico_FASCETTE w1-w2-w4.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/gz-worm-drive-hose-clamp-band-12-mm.html#sigProIdd251a170a6

Download Technical Sheet

Kiudo

Worm Drive Hose Clamps

GZ

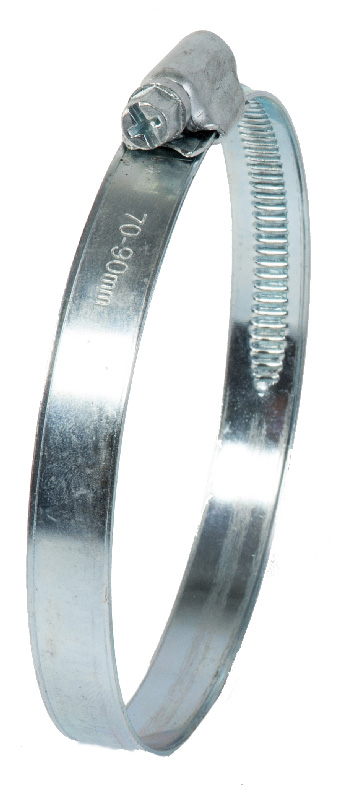

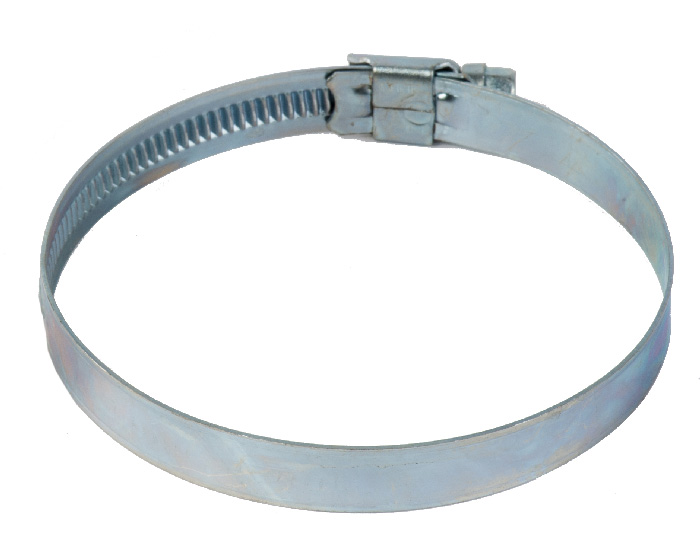

Worm Drive Hose Clamp - Band 12 mm

Product specification:

W1: Zinc plated band, carter and cross screw - spanner 7

Band features:

Threaded band pressed and raised, rounded edges

COD. W1	Ø min. mm	Ø max. mm	B1 mm	B2 W1 mm	Safe Working Torque	Q.ty
GZ016	16	25	12	14,9	5 Nm	100
GZ020	20	32	12	14,9	5 Nm	100
GZ025	25	40	12	14,9	5 Nm	100
GZ030	30	45	12	14,9	5 Nm	100
GZ032	32	50	12	14,9	5 Nm	50
GZ040	40	60	12	14,9	5 Nm	50
GZ050	50	70	12	14,9	5 Nm	50
GZ060	60	80	12	14,9	5 Nm	50
GZ070	70	90	12	14,9	5 Nm	25
GZ080	80	100	12	14,9	5 Nm	25
GZ090	90	110	12	14,9	5 Nm	25
GZ100	100	120	12	14,9	5 Nm	25
GZ110	110	130	12	14,9	5 Nm	25
GZ120	120	140	12	14,9	5 Nm	25
GZ130	130	150	12	14,9	5 Nm	25
GZ140	140	160	12	14,9	5 Nm	25
GZ150	150	170	12	14,9	5 Nm	25
GZ160	160	180	12	14,9	5 Nm	25
GZ170	170	190	12	14,9	5 Nm	25
GZ180	180	200	12	14,9	5 Nm	25
GZ200	200	220	12	14,9	5 Nm	25
GZ210	210	230	12	14,9	5 Nm	25
GZ230	230	250	12	14,9	5 Nm	25
GZ250*	250	270	12	14,9	5 Nm	25
GZ270*	270	290	12	14,9	5 Nm	25
GZ290*	290	310	12	14,9	5 Nm	25

* Until stock lasts
