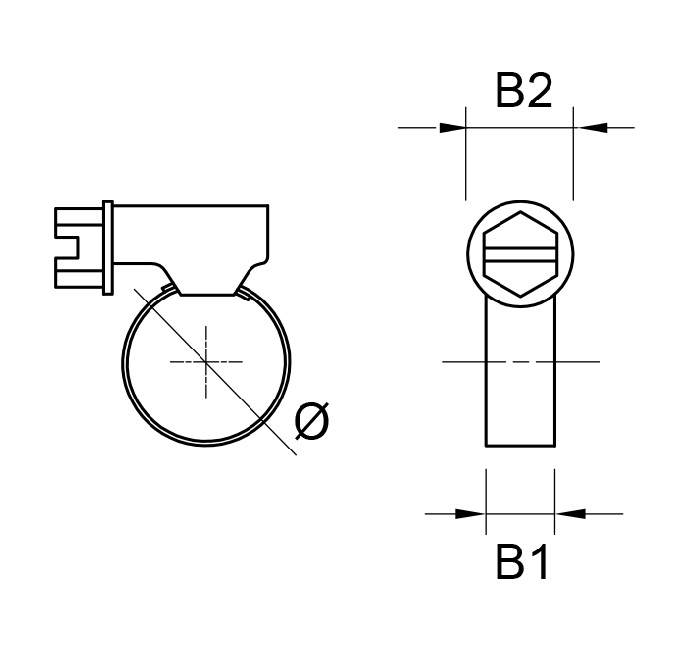

| COD. | Ø min. mm | Ø max. mm | B1 mm | B2 mm | Safe Working Torque | Q.ty |
| M507 | 7 | 11 | 5 | 8,48 | 5 Nm | 100 |
| M509 | 9 | 14 | 5 | 8,48 | 5 Nm | 100 |
| M510 | 10 | 19 | 5 | 8,48 | 5 Nm | 100 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/m5-mini-worm-drive-clamp-band-5-mm-w2.html#sigProId8f04bd469c
https://getechsrl.com/en/products/kiudo/worm-drive-hose-clamps/m5-mini-worm-drive-clamp-band-5-mm-w2.html#sigProId8f04bd469c
Kiudo
Worm Drive Hose Clamps
M5

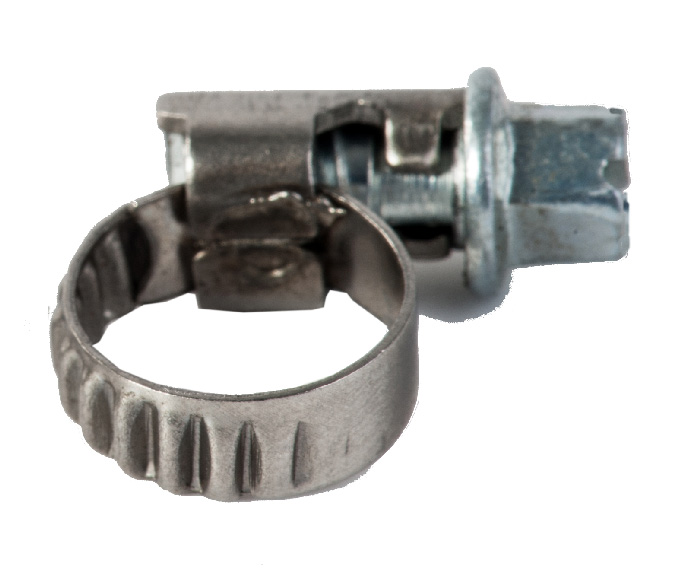

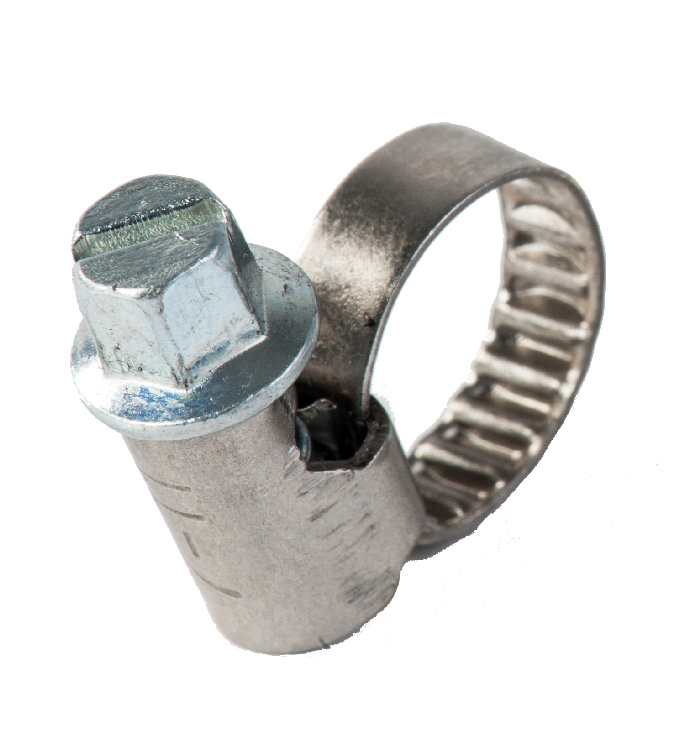

Mini Worm Drive Clamp - Band 5 mm W2
Product specification
BAND MATERIAL: Stainless Steel AISI 430 EN 1.4016
BAND FEATURES:Threaded band pressed and raised, rounded edge
HOUSING AND SCREW MATERIAL: Nickel and zinc plated
USE: Suitable for low and medium shore toughness hoses. It can be used in places difficult to be reached
