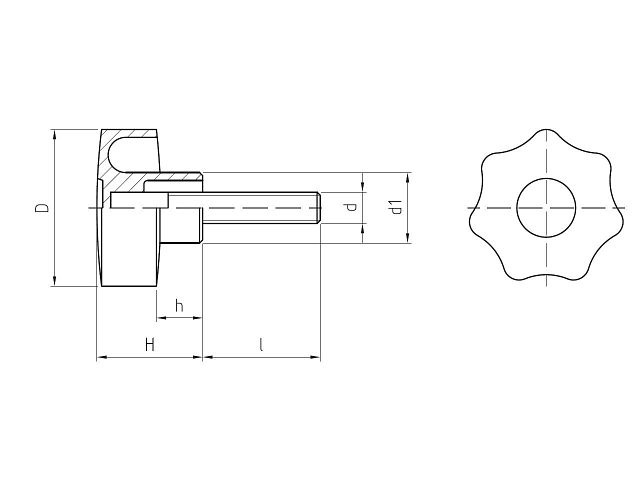

COD. | D | d | I | H | h | d1 | Peso gr | Q.tà |
B1V7MN200410 | 20 | 04MA | 10 | 11 | 5 | 12 | 6 | 20 |
B1V7MN200420 | 20 | 04MA | 20 | 11 | 5 | 12 | 6 | 20 |
B1V7MN200430 | 20 | 04MA | 30 | 11 | 5 | 12 | 6 | 20 |
B1V7MN200440 | 20 | 04MA | 40 | 11 | 5 | 12 | 6 | 20 |
B1V7MN200450 | 20 | 04MA | 50 | 11 | 5 | 12 | 6 | 20 |
B1V7MN200510 | 20 | 05MA | 11 | 11 | 5 | 12 | 7 | 20 |
B1V7MN200520 | 20 | 05MA | 20 | 11 | 5 | 12 | 7 | 20 |
B1V7MN200530 | 20 | 05MA | 30 | 11 | 5 | 12 | 7 | 20 |
B1V7MN200540 | 20 | 05MA | 40 | 11 | 5 | 12 | 7 | 20 |
B1V7MN200550 | 20 | 05MA | 50 | 11 | 5 | 12 | 7 | 20 |
B1V7MN200610 | 20 | 06MA | 12 | 11 | 5 | 12 | 8 | 20 |
B1V7MN200615 | 20 | 06MA | 15 | 11 | 5 | 12 | 8 | 20 |
B1V7MN200620 | 20 | 06MA | 20 | 11 | 5 | 12 | 8 | 20 |
B1V7MN200630 | 20 | 06MA | 30 | 11 | 5 | 12 | 9 | 20 |
B1V7MN200640 | 20 | 06MA | 40 | 11 | 5 | 12 | 9 | 20 |
B1V7MN200650 | 20 | 06MA | 50 | 11 | 9 | 12 | 9 | 20 |
B1V7MN300430 | 30 | 04MA | 30 | 22 | 9 | 14 | 17 | 20 |
B1V7MN300450 | 30 | 04MA | 50 | 22 | 9 | 14 | 17 | 20 |
B1V7MN300510 | 30 | 05MA | 10 | 22 | 9 | 14 | 17 | 20 |
B1V7MN300520 | 30 | 05MA | 20 | 22 | 9 | 14 | 17 | 20 |
B1V7MN300530 | 30 | 05MA | 30 | 22 | 9 | 14 | 17,5 | 20 |
B1V7MN300540 | 30 | 05MA | 40 | 22 | 9 | 14 | 17,5 | 20 |
B1V7MN300550 | 30 | 05MA | 50 | 22 | 9 | 14 | 18 | 20 |
B1V7MN300610 | 30 | 06MA | 10 | 22 | 9 | 14 | 16 | 20 |
B1V7MN300615 | 30 | 06MA | 15 | 22 | 9 | 14 | 16,5 | 20 |
B1V7MN300620 | 30 | 06MA | 20 | 22 | 9 | 14 | 17,5 | 20 |
B1V7MN300630 | 30 | 06MA | 30 | 22 | 9 | 14 | 18 | 20 |
B1V7MN300640 | 30 | 06MA | 40 | 22 | 9 | 14 | 19,5 | 20 |
B1V7MN300650 | 30 | 06MA | 50 | 22 | 9 | 14 | 21 | 20 |
B1V7MN300815 | 30 | 08MA | 15 | 22 | 9 | 14 | 22 | 20 |
B1V7MN300820 | 30 | 08MA | 20 | 22 | 9 | 14 | 23 | 20 |
B1V7MN300830 | 30 | 08MA | 30 | 22 | 9 | 14 | 25 | 20 |
B1V7MN300840 | 30 | 08MA | 40 | 22 | 9 | 14 | 28 | 20 |
B1V7MN300850 | 30 | 08MA | 50 | 22 | 9 | 14 | 30 | 20 |
B1V7MN400620 | 40 | 06MA | 20 | 26 | 11 | 18 | 22 | 20 |
B1V7MN400630 | 40 | 06MA | 30 | 26 | 11 | 18 | 24 | 20 |
B1V7MN400640 | 40 | 06MA | 40 | 26 | 11 | 18 | 26 | 20 |
B1V7MN400650 | 40 | 06MA | 50 | 26 | 11 | 18 | 28 | 20 |
B1V7MN400815 | 40 | 08MA | 15 | 26 | 11 | 18 | 26 | 20 |
B1V7MN400820 | 40 | 08MA | 20 | 26 | 11 | 18 | 27 | 20 |
B1V7MN400830 | 40 | 08MA | 30 | 26 | 11 | 18 | 28 | 20 |
B1V7MN400840 | 40 | 08MA | 40 | 26 | 11 | 18 | 32 | 20 |
B1V7MN400850 | 40 | 08MA | 50 | 26 | 11 | 18 | 37 | 20 |
B1V7MN400860 | 40 | 08MA | 60 | 26 | 11 | 18 | 40 | 20 |
B1V7MN401020 | 40 | 10MA | 20 | 26 | 11 | 18 | 34 | 20 |
B1V7MN401030 | 40 | 10MA | 30 | 26 | 11 | 18 | 42 | 20 |
B1V7MN401040 | 40 | 10MA | 40 | 26 | 11 | 18 | 46 | 20 |
B1V7MN401050 | 40 | 10MA | 50 | 26 | 11 | 18 | 49 | 20 |
B1V7MN500815 | 50 | 08MA | 15 | 32 | 15 | 20 | 35 | 20 |
B1V7MN500820 | 50 | 08MA | 20 | 32 | 15 | 20 | 38 | 20 |
B1V7MN500830 | 50 | 08MA | 30 | 32 | 15 | 20 | 43 | 20 |
B1V7MN500840 | 50 | 08MA | 40 | 32 | 15 | 20 | 47 | 20 |
B1V7MN500850 | 50 | 08MA | 50 | 32 | 15 | 20 | 50 | 20 |
B1V7MN501020 | 50 | 10MA | 20 | 32 | 15 | 20 | 50 | 20 |
B1V7MN501030 | 50 | 10MA | 30 | 32 | 15 | 20 | 55 | 20 |
B1V7MN501040 | 50 | 10MA | 40 | 32 | 15 | 20 | 61 | 20 |
B1V7MN501050 | 50 | 10MA | 50 | 32 | 15 | 20 | 66 | 20 |
B1V7MN501230 | 50 | 12MA | 30 | 32 | 15 | 20 | 75 | 20 |
B1V7MN501240 | 50 | 12MA | 40 | 32 | 15 | 20 | 78 | 20 |
B1V7MN501250 | 50 | 12MA | 50 | 32 | 15 | 20 | 84 | 20 |
B1V7MN600830 | 60 | 08MA | 30 | 34 | 16 | 21 | 84 | 20 |
B1V7MN600840 | 60 | 08MA | 40 | 34 | 16 | 21 | 90 | 20 |
B1V7MN600850 | 60 | 08MA | 50 | 34 | 16 | 21 | 95 | 20 |
B1V7MN601020 | 60 | 10MA | 20 | 34 | 16 | 21 | 87 | 20 |
B1V7MN601030 | 60 | 10MA | 30 | 34 | 16 | 21 | 90 | 20 |
B1V7MN601040 | 60 | 10MA | 40 | 34 | 16 | 21 | 95 | 20 |
B1V7MN601050 | 60 | 10MA | 50 | 34 | 16 | 21 | 100 | 20 |
B1V7MN601230 | 60 | 12MA | 30 | 34 | 16 | 21 | 80 | 20 |
B1V7MN601240 | 60 | 12MA | 40 | 34 | 16 | 21 | 86 | 20 |
B1V7MN601250 | 60 | 12MA | 50 | 34 | 16 | 21 | 94 | 20 |
B1V7MN601450 | 60 | 14MA | 50 | 34 | 16 | 21 | 102 | 20 |
View the embedded image gallery online at:
https://getechsrl.com/it/prodotti/compo/componenti-di-manovra-operating-components/v7mn-volantino-7-punte-con-perno-filettato.html#sigProId4a9ddd2cea
https://getechsrl.com/it/prodotti/compo/componenti-di-manovra-operating-components/v7mn-volantino-7-punte-con-perno-filettato.html#sigProId4a9ddd2cea
Compo
Componenti di Manovra
V7MN
Volantino 7 Punte con Perno Filettato
Caratteristiche
MATERIALE CORPO: Tecnopolimero rinforzato di colore nero, resistente a solventi, oli, grassi (PA)
PARTE METALLICA E/O FISSAGGIO: Perno in acciaio zincato filettato, estremità smussate
