Ø inner mm | Ø outside mm | Working Pressure bar | Weight gr/mt | Roll Length |
6 | 12 | 21 | 105 | 100 MT |
8 | 14 | 23 | 130 | 100 MT |
10 | 16 | 19 | 155 | 100 MT |
12 | 18 | 12 | 175 | 100 MT |
13 | 19 | 11 | 185 | 100 MT |
16 | 22 | 10 | 225 | 50 MT |
19 | 26 | 9 | 305 | 50 MT |
25 | 33 | 8 | 450 | 50 MT |
30 | 38 | 6 | 530 | 50 MT |
View the embedded image gallery online at:
https://getechsrl.com/en/component/k2/technical/t03ret-braided-crystal-hose.html?highlight=WyJ3YXRlciIsImhvc2UiXQ%3D%3D#sigProId8c88b4f2ee
https://getechsrl.com/en/component/k2/technical/t03ret-braided-crystal-hose.html?highlight=WyJ3YXRlciIsImhvc2UiXQ%3D%3D#sigProId8c88b4f2ee
Plago
Technical Hoses
T03RET

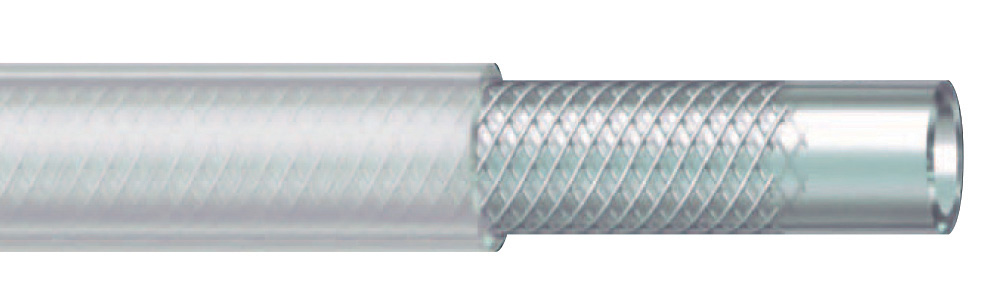

Braided Crystal Hose
Produced with material suitable for passage of drinking water and food liquids, in compliance with EC 2007/19 for simulants A, B and C. Particularly suitable for applications that require resistance to high pressures. Applications: passage of liquid cooling solutions, chemicals, compressed air and other uses in the food and mechanical industry.
Technical Features
Structure:
PVC hose with braided polyester high tenacity reinforcement. 3 layers with braided reinforcement. Particularly suitable for applications that require resistance to high pressures.
Colors: Transparent
Temperature: + 60°C - 10°C
