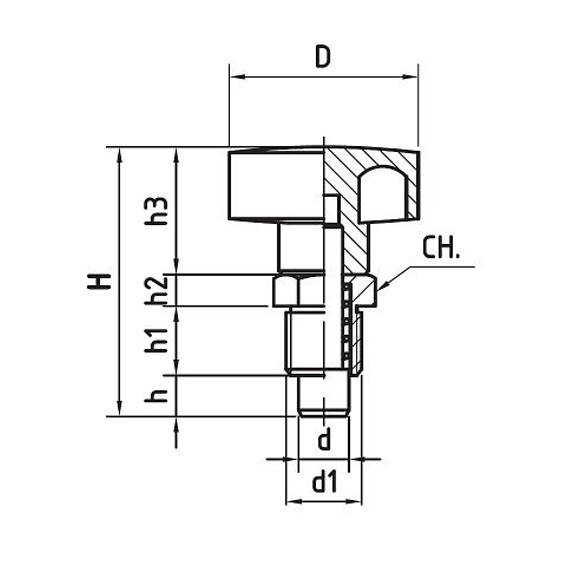

Click to enlarge image 1_disegno-tecnico_PI.jpg

  • Click to enlarge image 1_disegno-tecnico_PI.jpg

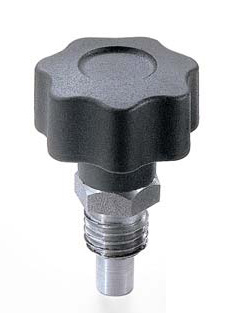

  • Click to enlarge image PI_1.jpg
  • Click to enlarge image PI_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/hinges-and-accessories/pi-spring-locking-bolt-threaded.html#sigProId0eca031dca
Download Technical Sheet

Compo

Hinges and Accessories

PI
Spring Locking Bolt (Threaded)

Product specification

MAIN PART MATERIAL: Black fiberglass-reinforced technopolymer, resistant to solvents, oils, greases (PA)
METAL AND/OR FASTENING PART: Stud and nut in carbonitreded zinc plated steel

COD. D d1 d h1 h H h3 h2 Chiave Peso gr Q.tà
 B1PI200510 20  M10x1  5  11  5 32 11 5  14  23  20
 B1PI200612 20  M12x1,5  6  11  6 33 11 5  14  20  20
 B1PI200712 20  M12  7  11  7 34 11 5  14  21  20
 B1PI200812 20  M12x1,5  8  11  6 33 11 5  14  22  20
 B1PI300612 30  M12x1,5  6  11  6 44  22 5  14  25  20
 B1PI300616 30  M16x1,5  6  11  6 49  22 9  19  30  20
 B1PI300712 30  M12  7  11  7 45  22 5  14  26  20
 B1PI300716 30  M16x1,5  7  11  7 49  22 9  19  31  20
 B1PI300812 30  M12x1,5  8  11  7 45  22 5  14  28  20
 B1PI300816 30  M16x1,5  8  11  7 49  22 9  19  32  20





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
