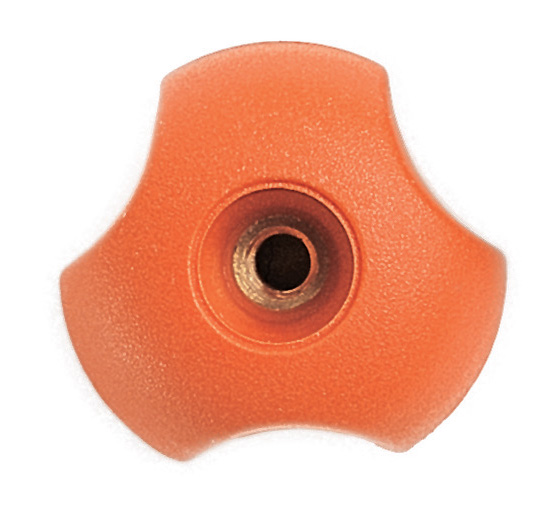

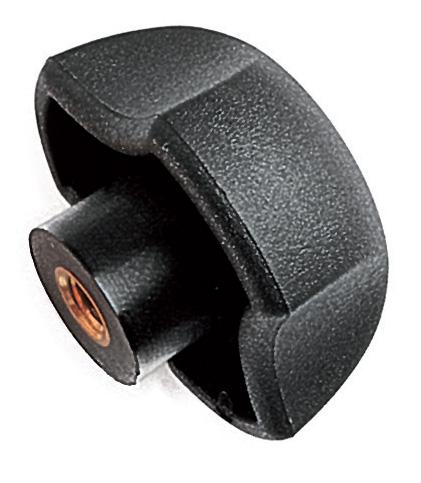

3 Lobe Knob with Threaded Thru-Insert

Product specification

MAIN PART MATERIAL: Reinforced polyamide
METAL AND/OR FASTENING PART: Threaded through brass insert

Colors on request: blue; yellow; red; grey

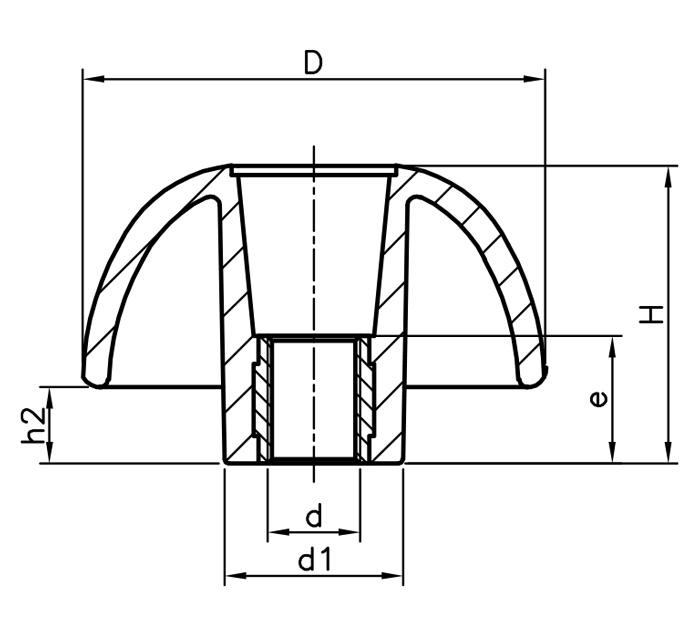

ORANGE CODE	BLACK CODE	D	H	d1	d	e	h2
CLAP2504	CLP2504	25	17	12	M4	11,5	5
CLAP3205	CLP3205	32	20	14	M5	11,5	6
CLAP3206	CLP3206	32	32	14	M6	11,5	6
CLAP4008	CLP4008	40	25	17	M8	13,8	7
CLAP4010	CLP4010	40	25	17	M10	13,8	7
CLAP5008	CLP5008	50	32	19	M8	13,8	8
CLAP5010	CLP5010	50	32	19	M10	13,8	8
CLAP5012	CLP5012	50	32	19	M12	13,8	8
CLAP6310	CLP6310	63	40	23	M10	13,8	11
CLAP6312	CLP6312	63	40	23	M12	13,8	11
