Compo

Operating Components

CLAM - CLM

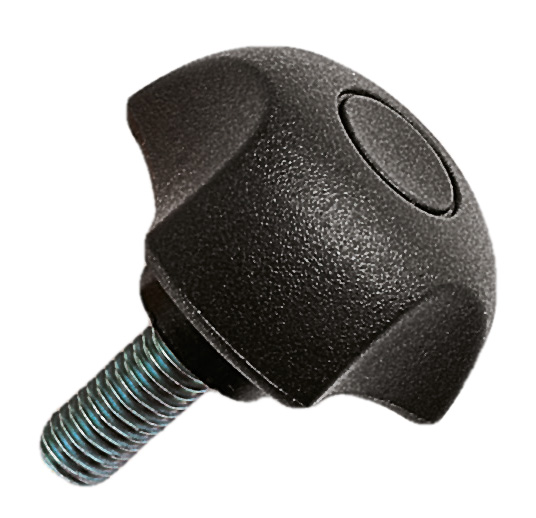

3 Lobe Knob with Threaded Stud

Product specification

MAIN PART MATERIAL: Reinforced polyamide
METAL AND/OR FASTENING PART: Zinc plated threaded stud

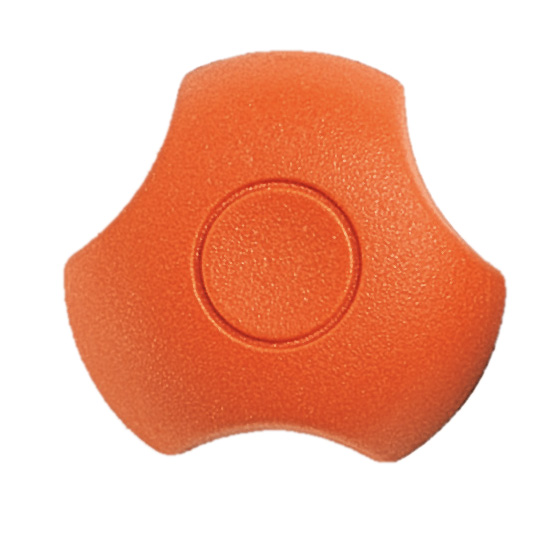

Colors on request : blue ; yellow; red; grey

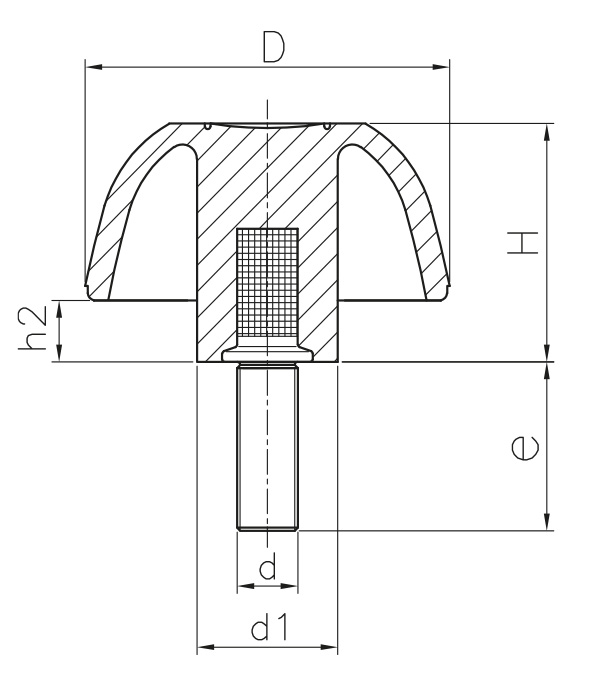

ORANGE CODE	BLACK CODE	D	H	d1	d	e	h2	U.V.
CLAM250415	CLM2504415	25	17	12	M4	15	6	10
CLAM250620	CLM250620	25	17	12	M6	20	6	10
CLAM320520	CLM320520	32	20	14	M5	20	6	10
CLAM320620	CLM320620	32	20	14	M6	20	6	10
CLAM320827	CLM320827	32	20	14	M8	27	6	10
CLAM320840	CLM320840	32	20	14	M8	40	6	10
CLAM400815	CLM400815	40	25	17	M8	15	7	10
CLAM400833	CLM400833	40	25	17	M8	33	7	10
CLAM401044	CLM401044	40	25	17	M10	44	7	10
CLAM501033	CLM501033	50	32	19	M10	33	8	10
CLAM501050	CLM501050	50	32	17	M10	50	8	10
CLAM501240	CLM501240	50	32	19	M12	40	8	10
CLAM631033	CLM631033	63	40	23	M10	33	11	10
CLAM631240	CLM631240	63	40	23	M12	40	11
