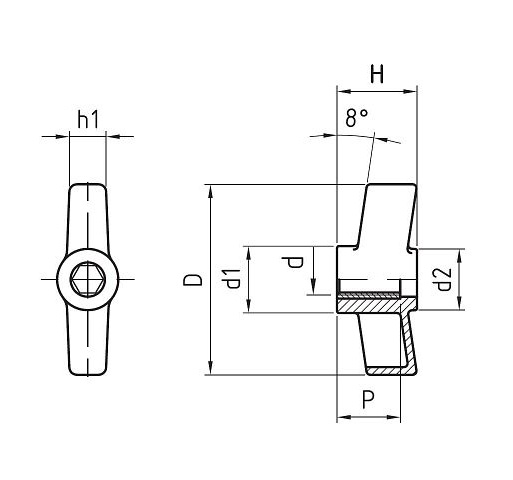

Click to enlarge image 1_disegno-tecnico_GBP.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/gbp-wing-nut-with-threaded-through-insert.html#sigProId6a0c2ec502

Download Technical Sheet

Compo

Operating Components

GBP
Wing Nut with Threaded Through-Insert

Product specification

MAIN PART MATERIAL: Black technopolymer, fiberglass-reinforced, solvents, oils, greases proof (PA)
METALLIC PART: Brass insert, threaded through-hole

COD.	D	d	d1	d2	H	h1	P	Weight gr	Q.ty
B1GBP3004	30	M04	14	12	16	6	15	5,5	20
B1GBP3005	30	M05	14	12	16	6	15	6	20
B1GBP3006	30	M06	14	12	16	6	15	6,5	20
B1GBP3008	30	M08	14	12	16	6	15	7	20
B1GBP5005	50	M05	18	16	22	10	15	11,5	20
B1GBP5006	50	M06	18	16	22	10	15	12	20
B1GBP5008	50	M08	18	16	22	10	15	12,5	20
B1GBP5010	50	M10	18	16	22	10	20	14	20
