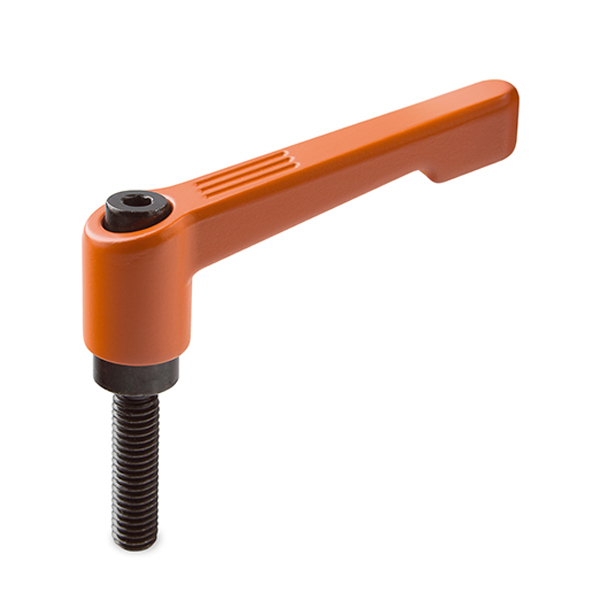

Clamping Lever in Die-Cast Zinc with Orange Plastic Coated

Product Specification

MAIN PART MATERIAL: Die-cast zinc grip lever, orange RAL 2004
METAL AND/OR FASTENING PART MATERIAL: Threaded insert with gun metal finish on the steel linchpin
MATERIAL OF OTHER METALLIC PART: Return spring in stainless steel and black-oxide steel retaining screw

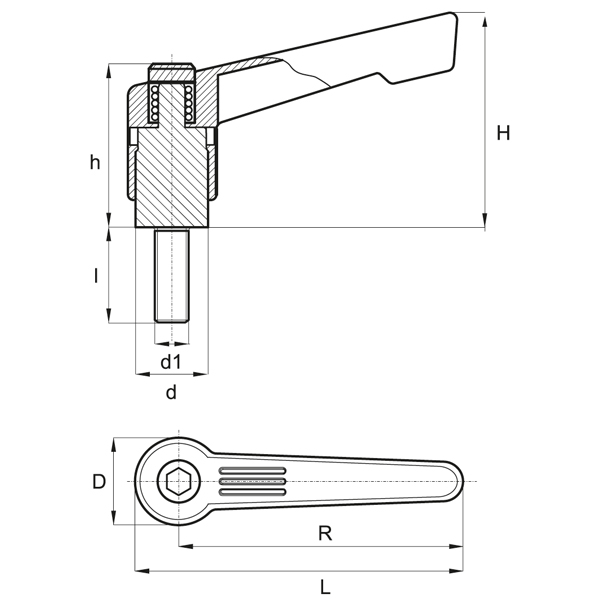

COD.	R	L	d1	I	d	D	H	h	Q.ty
B1LRV420520	42	49	05MA	20	10	14	33,5	24,5	20
B1LRV420620	42	49	06MA	20	10	14	33,5	24,5	20
B1LRV650625	65	74	06MA	25	13,5	18	45,5	31	20
B1LRV650830	65	74	08MA	30	13,5	18	45,5	31	20
B1LRV780830	78	89	08MA	30	16	22	54	36	20
B1LRV780840	78	89	08MA	40	16	22	54	36	20
B1LRV781030	78	89	10MA	30	16	22	54	36	20
B1LRV781050	78	89	10MA	50	16	22	54	36	20
B1LRV921230	92	105	12MA	30	19	25	64	43	20
B1LRV921250	92	105	12MA	50	19	25	64	43	20
