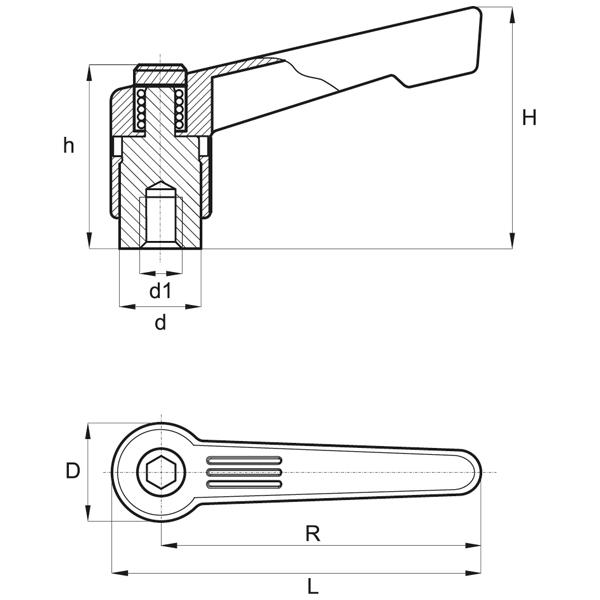

| COD. | R | L | d1 | d | D | H | h | Q.ty |
| B1LR4205 | 42 | 49 | 05MA | 10 | 14 | 33,5 | 24,5 | 20 |
| B1LR6506 | 65 | 74 | 06MA | 13,5 | 18 | 45,5 | 31 | 20 |
| B1LR7808 | 78 | 89 | 08MA | 16 | 22 | 54 | 36 | 20 |
| B1LR7810 | 78 |
89 |
10MA | 16 | 22 | 54 | 36 | 20 |
| B1LR9212 | 92 | 105 | 12MA | 19 | 25 | 64 | 42 | 20 |
| B1LR10816 | 108 | 123 | 16MA | 23 | 30 | 75 | 50,5 | 20 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/lv-clamping-lever-in-die-cast-zinc-with-orange-plastic-coated.html#sigProId31b603204a
https://getechsrl.com/en/products/compo/operating-components/lv-clamping-lever-in-die-cast-zinc-with-orange-plastic-coated.html#sigProId31b603204a
Compo
Operating Components
LR

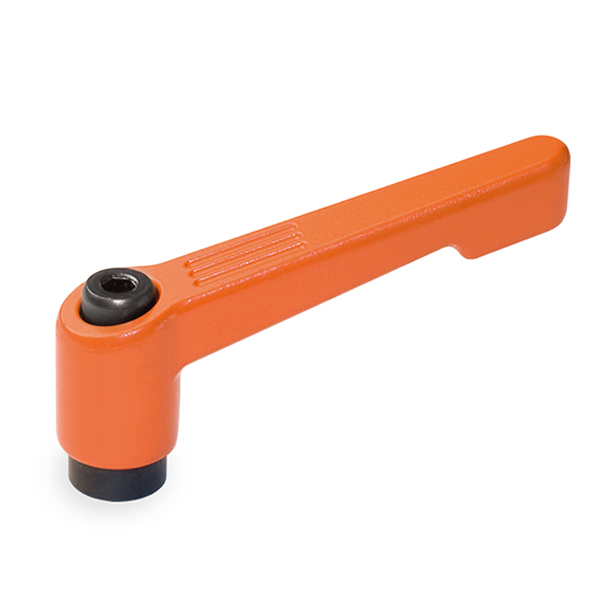

Clamping Lever in Die-Cast Zinc with Orange Plastic Coated
Product Specification
MAIN PART MATERIAL: Die-cast zinc grip lever, orange RAL 2004
METAL AND/OR FASTENING PART MATERIAL: Blind threaded insert with gun metal finish
MATERIAL OF OTHER METALLIC PART: Return spring in stainless steel and black-oxide steel retaining screw
