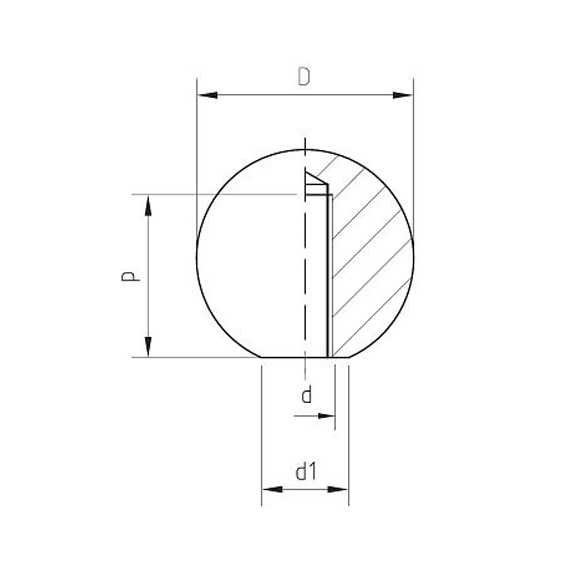

Click to enlarge image 1_disegno-tecnico_PSC.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/psc-ball-knob-with-threaded-insert.html#sigProId125db8f302

Download Technical Sheet

Compo

Operating Components

PSC
Ball Knob with Threaded Insert

Product specification

MAIN PART MATERIAL: Black phenoplast, solvents, oils, greases and other chemical agents proof (PF)
METALLIC PART: Threaded blind insert

COD.	D	d	P	d1	Weight gr	Q.ty
B1PSC2005	20	05MA	15	8	6	20
B1PSC2006	20	06MA	15	8	5	20
B1PSC2605	26	05MA	15	12	13	20
B1PSC2606	26	06MA	18	12	12	20
B1PSC2608	26	08MA	20	12	11	20
B1PSC3005	30	05MA	15	16	18	20
B1PSC3006	30	06MA	18	16	18	20
B1PSC3008	30	08MA	20	16	17	20
B1PSC3010	30	10MA	20	16	16	20
B1PSC3506	35	06MA	18	16	30	20
B1PSC3508	35	08MA	24	16	28	20
B1PSC3510	35	10MA	30	16	27	20
B1PSC3512	35	12MA	30	16	25	20
B1PSC4006	40	06MA	18	16	46	20
B1PSC4008	40	08MA	24	16	45	20
B1PSC4010	40	10MA	30	16	43	20
B1PSC4012	40	12MA	30	16	42	20
B1PSC4510	45	10MA	30	22	59	20
B1PSC4512	45	12MA	30	22	59	20
B1PSC4514	45	14MA	30	22	59	20
B1PSC4516	45	16MA	30	22	58	20
B1PSC5010	50	10MA	38	22	85	20
B1PSC5012	50	12MA	38	22	83	20
B1PSC5014	50	14MA	38	22	81	20
B1PSC5016	50	16MA	38	22	80	20
