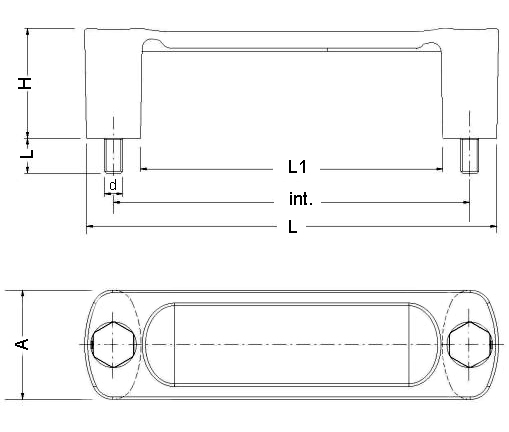

| COD. | L | Interaxe mm | d | I | L1 | A | H | Weight gr | Q.ty |
| B1SPM9305 | 114 | 93,5 | 05MA | 10 | 76 | 36 | 36 | 52 | 20 |
| B1SPM9306 | 114 | 93,5 | 06MA | 12 | 76 | 36 | 36 | 54 | 20 |
| B1SPM11705 | 137 | 117 | 05MA | 10 | 99 | 36 | 36 | 56 | 20 |
| B1SPM11706 | 137 | 117 | 06MA | 12 | 99 | 36 | 36 | 58 | 20 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/spm-ellipse-u-handle-with-threaded-steel-bolt.html#sigProId85008853c6
https://getechsrl.com/en/products/compo/operating-components/spm-ellipse-u-handle-with-threaded-steel-bolt.html#sigProId85008853c6
Compo
Operating Components
SPM

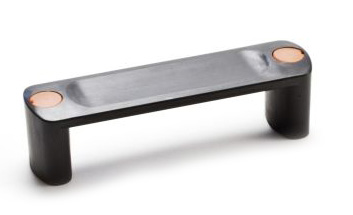

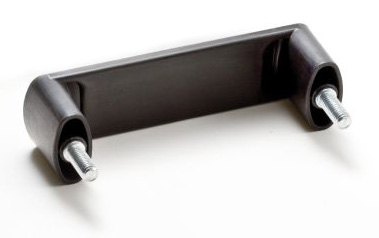

“Ellipse” U-Handle with Threaded Steel Bolt
Product specification
MAIN PART MATERIAL: Black technopolymer, solvents, oils, greases (PA)
METALLIC PART: Threaded steel stud
SPECIFICAL FEATURES: The handle is provided with two technopolymer caps orange RAL 2004
