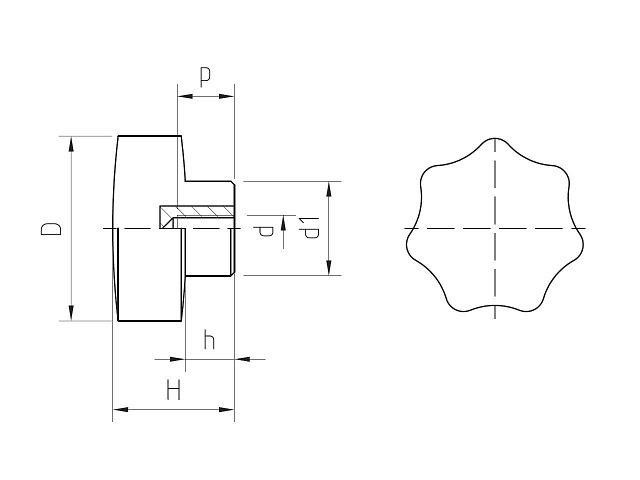

Click to enlarge image 1_disegno-tecnico_V7B.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/v7b-star-knob-with-7-points-and-threaded-blind-insert.html#sigProId7f09d274fe

Download Technical Sheet

Compo

Operating Components

V7B
Star Knob with 7 Points and Threaded Blind Insert

Product specification

MAIN PART MATERIAL: Black phenoplast, solvents, oils, greases and other chemical agents proof (PF)
METALLIC PART: Brass insert, threaded blind hole

COD.	D	d	P	H	h	d1	Weight gr	Q.ty
B1V7B3004	30	04MA	8	23	10	17	15	20
B1V7B3005	30	05MA	10	23	10	17	15	20
B1V7B3006	30	06MA	12	23	10	17	16	20
B1V7B3008	30	08MA	16	23	10	17	17	20
B1V7B4006	40	06MA	12	27	11	21	30	20
B1V7B4008	40	08MA	16	27	11	21	33	20
B1V7B4010	40	10MA	16	27	11	21	33	20
B1V7B5008	50	08MA	16	35	15	25	59	20
B1V7B5010	50	10MA	22	35	15	25	61	20
B1V7B5012	50	12MA	22	35	15	25	68	20
B1V7B6008	60	08MA	16	39	18	28	85	20
B1V7B6010	60	10MA	22	39	18	28	88	20
B1V7B6012	60	12MA	22	39	18	28	93	20
B1V7B6014	60	14MA	22	39	18	28	98	20
B1V7B7010	70	10MA	22	42	18	30	121	20
B1V7B7012	70	12MA	22	42	18	30	127	20
B1V7B7014	70	14MA	22	42	18	30	133	20
B1V7B7016	70	16MA	22	42	18	30	138	20
B1V7B8012	80	12MA	22	53	28	32	186	20
B1V7B8014	80	14MA	22	53	28	32	186	20
B1V7B8016	80	16MA	22	53	28	32	187	20
