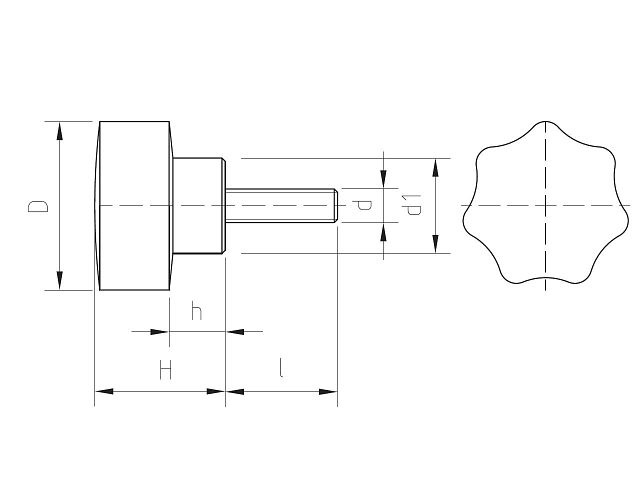

Click to enlarge image 1_disegno-tecnico_V7MX.jpg

  • Click to enlarge image 1_disegno-tecnico_V7MX.jpg

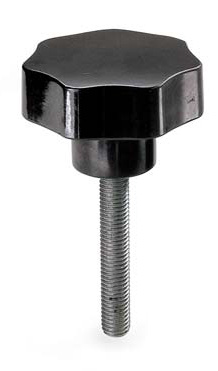

  • Click to enlarge image V7MX_1.jpg

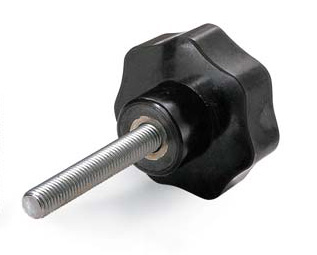

  • Click to enlarge image V7MX_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/v7mx-star-knob-with-7-points-and-stainless-steel-stud-2.html#sigProId2f30cb125e
Download Technical Sheet

Compo

Operating Components

V7MX
Star Knob with 7 Points and Stainless Steel Stud

Product specification

MAIN PART MATERIAL: Black phenoplast, solvents, oils, greases and other chemical agents proof (PF)
METALLIC PART: Stainless steel bolt, threaded flat end, rounded edges

COD. D d I H h d1 Weight gr Q.ty
 B1V7MX300430  30  04MA  30  23  10  17  18  20
 B1V7MX300450  30  04MA  50  23  10  17  19  20
 B1V7MX300520  30  05MA  20  23  10  17  18  20
 B1V7MX300530  30  05MA  30  23  10  17  18  20
 B1V7MX300550  30  05MA  50  23  10  17  19  20
 B1V7MX300615  30  06MA  15  23  10  17  20  20
 B1V7MX300620  30  06MA  20  23  10  17  22  20
 B1V7MX300630  30  06MA  30  23  10  17  23  20
 B1V7MX300640  30  06MA  40  23  10  17  26  20
 B1V7MX300650  30  06MA  50  23  10  17  27  20
 B1V7MX300820  30  08MA  20  23  10  17  25  20
 B1V7MX300830  30  08MA  30  23  10  17  29  20
 B1V7MX300840  30  08MA  40  23  10  17  31  20
 B1V7MX300850  30  08MA  50  23  10  17  33  20
 B1V7MX400630  40  06MA  30  26  11  21  35  20
 B1V7MX400640  40  06MA  40  26  11  21  40  20
 B1V7MX400650  40  06MA  50  26  11  21  44  20
 B1V7MX400820  40  08MA  20  26  11  21  40  20
 B1V7MX400830  40  08MA  30  26  11  21  45  20
 B1V7MX400840  40  08MA  40  26  11  21  47  20
 B1V7MX400850  40  08MA  50  26  11  21  55  20
 B1V7MX401030  40  10MA  30  26  11  21  55  20
 B1V7MX401040  40  10MA  40  26  11  21  60  20
 B1V7MX401050  40  10MA  50  26  11  21  65  20
 B1V7MX500830  50  08MA  30  32  15  25  74  20
 B1V7MX500840  50  08MA  40  32  15  25  75  20
 B1V7MX500850  50  08MA  50  32  15  25  80  20
 B1V7MX501030  50  10MA  30  32  15  25  80  20
 B1V7MX501040  50  10MA  40  32  15  25  86  20
 B1V7MX501050  50  10MA  50  32  15  25  90  20
 B1V7MX501230  50  12MA  30  32  15  25  99  20
 B1V7MX501240  50  12MA  40  32  15  25  101  20
 B1V7MX501250  50  12MA  50  32  15  25  104  20
 B1V7MX601030  60  10MA  30  34  16  28  104  20
 B1V7MX601040  60  10MA  40  34  16  28  106  20
 B1V7MX601050  60  10MA  50  34  16  28  117  20
 B1V7MX601230  60  12MA  30  34  16  28  132  20
 B1V7MX601240  60  12MA  40  34  16  28  136  20
 B1V7MX601250  60  12MA  50  34  16  28  140  20
 B1V7MX701230  70  12MA  30  42  18  30  172  20
 B1V7MX701250  70  12MA  50  42  18  30  180  20
