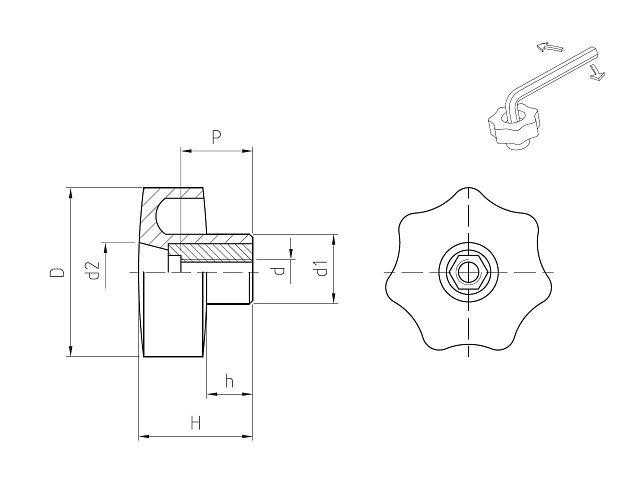

Click to enlarge image 1_disegno-tecnico_V7NBP.jpg

  • Click to enlarge image 1_disegno-tecnico_V7NBP.jpg
  • Click to enlarge image V7NBP_1.jpg
  • Click to enlarge image V7NBP_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/v7nbp-nylon-star-knob-with-7-points-and-threaded-through-insert.html#sigProIdbb42ab2610
Download Technical Sheet

Compo

Operating Components

V7NBP
Nylon Star Knob with 7 Points and Threaded Through-Insert

Product specification

MAIN PART MATERIAL: Fiberglass-reinforced black technopolymer, , solvents, oils, greases proof (PA)
METALLIC PART: Brass insert, threaded through-hole

COD.  D d  P  d2  H h  d1 Weight gr Q.ty
 B1V7NBP2004  20  04MA  10  9  11  5  12  7  20
 B1V7NBP2005  20  05MA  10  9  11  5  12  8  20
 B1V7NBP2006  20  06MA  10  9  11  5  12  9  20
 B1V7NBP3005  30  05MA  15  13  22  9  14  13,5  20
 B1V7NBP3006  30  06MA  15  13  22  9  14  14,5  20
 B1V7NBP3008  30  08MA  15  13  22  9  14  15  20
 B1V7NBP3010  30  10MA  15  13  22  9  14  16  20
 B1V7NBP4006  40  06MA  20  11  26  11  18  28  20
 B1V7NBP4008  40  08MA  20  11  26  11  18  22  20
 B1V7NBP4010  40  10MA  20  11  26  11  18  25  20
 B1V7NBP5008  50  08MA  20  20  32  15  20  33  20
 B1V7NBP5010  50  10MA  20  20  32  15  20  35,5  20
 B1V7NBP5012  50  12MA  20  20  32  15  20  37  20
 B1V7NBP6010  60  10MA  20  25  34  16  21  53  20
 B1V7NBP6012  60  12MA  20  25  34  16  21  57  20
 B1V7NBP6014  60  14MA  20  25  34  16  21  64  20
