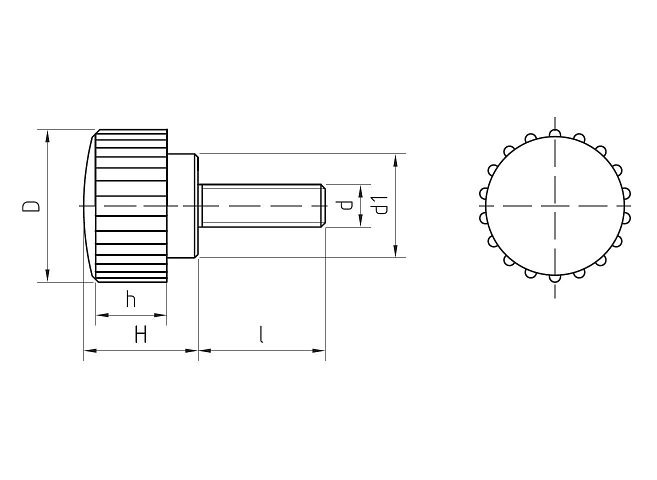

Click to enlarge image 1_disegno-tecnico_VZM.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/operating-components/vzm-thumb-knob-with-threaded-stud.html#sigProIde7fd5cf95b

Download Technical Sheet

Compo

Operating Components

VZM

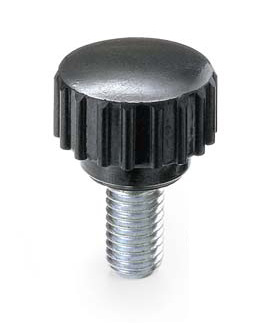

Thumb Knob with Threaded Stud

Product specification

MAIN PART MATERIAL: Black phenoplast, solvents, oils, greases and other chemical agents proof (PF)
METALLIC PART: Zinc plated steel threaded stud

COD.	D	d	I	d1	H	h	Weight gr	Q.ty
B1VZM150310	15	03MA	10	11	11	8	3	20
B1VZM150410	15	04MA	10	11	11	8	3	20
B1VZM150415	15	04MA	15	11	11	8	4	20
B1VZM150430	15	04MA	30	11	11	8	4	20
B1VZM150510	15	05MA	11	11	11	8	5	20
B1VZM150512	15	05MA	12	11	11	8	5	20
B1VZM150515	15	05MA	15	11	11	8	5	20
B1VZM150540	15	05MA	40	11	11	8	9	20
B1VZM180410	18	04MA	10	13	14	10	5	20
B1VZM180415	18	04MA	15	13	14	10	6	20
B1VZM180420	18	04MA	20	13	14	10	6	20
B1VZM180510	18	05MA	11	13	14	10	6	20
B1VZM180515	18	05MA	15	13	14	10	7	20
B1VZM180520	18	05MA	20	13	14	10	8	20
B1VZM180525	18	05MA	25	13	14	10	10	20
B1VZM180612	18	06MA	12	13	14	10	8	20
B1VZM180615	18	06MA	15	13	14	10	9	20
B1VZM180620	18	06MA	20	13	14	10	10	20
B1VZM180625	18	06MA	25	13	14	10	10	20
B1VZM180630	18	06MA	30	13	14	10	11	20
B1VZM180650	18	06MA	50	13	14	10	15	20
B1VZM220410	22	04MA	10	15	16	10	7	20
B1VZM220420	22	04MA	20	15	16	10	7	20
B1VZM220520	22	05MA	20	15	16	10	8	20
B1VZM220615	22	06MA	15	15	16	10	11	20
B1VZM220630	22	06MA	30	15	16	10	13	20
B1VZM220650	22	06MA	50	15	16	10	14	20
B1VZM220815	22	08MA	15	15	16	10	15	20
B1VZM220820	22	08MA	20	15	16	10	16	20
B1VZM220830	22	08MA	30	15	16	10	20	20
B1VZM220850	22	08MA	50	15	16	10	22	20
