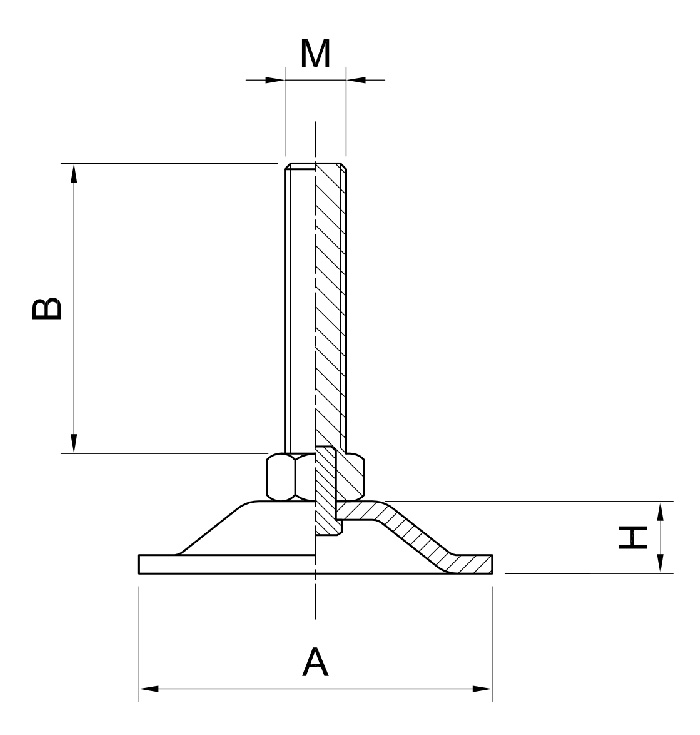

Click to enlarge image 1_disegno-tecnico_EA.jpg

  • Click to enlarge image 1_disegno-tecnico_EA.jpg

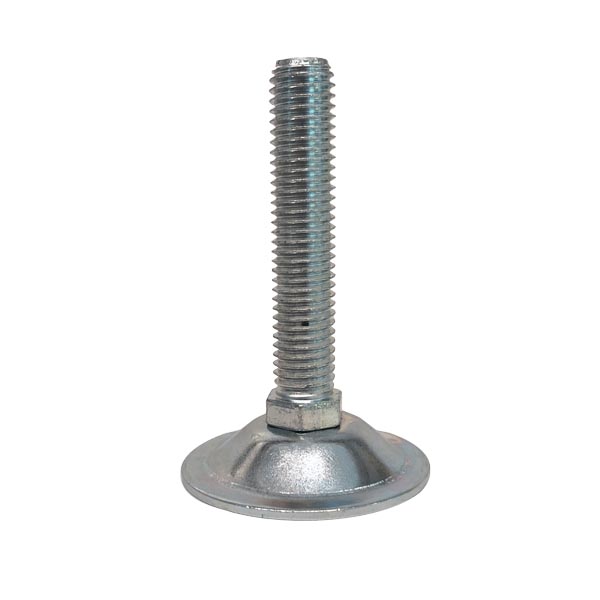

  • Click to enlarge image EA_new.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/steel-levelling-line/ea-steel-adjustable-foot.html#sigProId062cf12483
Download Technical Sheet

Compo

Steel Base Levelling Line

EA
Adjustable Foot

Product specification

BASE MATERIAL: Galvanized sheet iron
BASE TYPE: Not fixable to the ground (except code A3EA57)
SPINDLE MATERIAL: Zinc plated Iron
SPINDLE TYPE: Revolving
PRODUCT PRESENTATION: Spindle supplied already assembled to the base

COD. A M B H Max Load daN Q.ty
A4EA48 48 08MA 50 9 400 8
A4EA50 48 10MA 60 9 400 8
A4EA52 48 10MA 100 9 300 8
A4EA51 48 12MA 60 9 400 8
A4EA57 58 08MA 50 9 300 8
A4EA58 58 10MA 60 9 500 8
A4EA60 58 12MA 60 9 500 8





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
