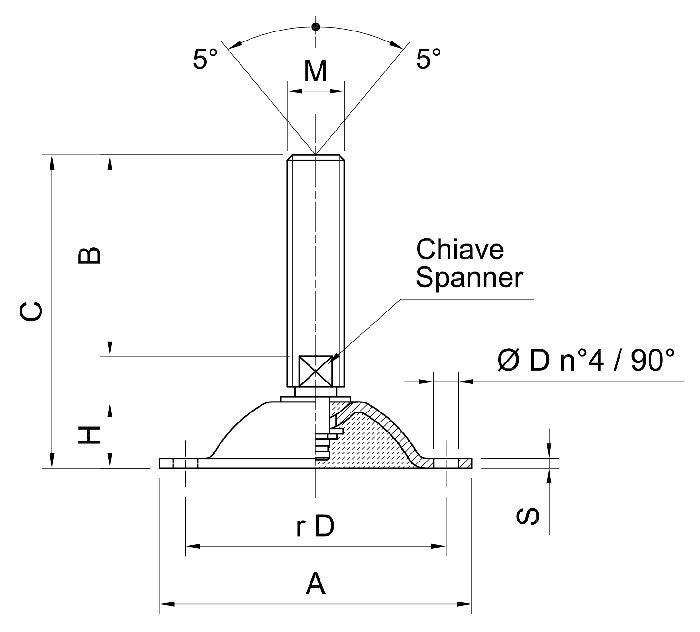

Click to enlarge image 1_disegno-tecnico_ET-ETX.jpg

  • Click to enlarge image 1_disegno-tecnico_ET-ETX.jpg

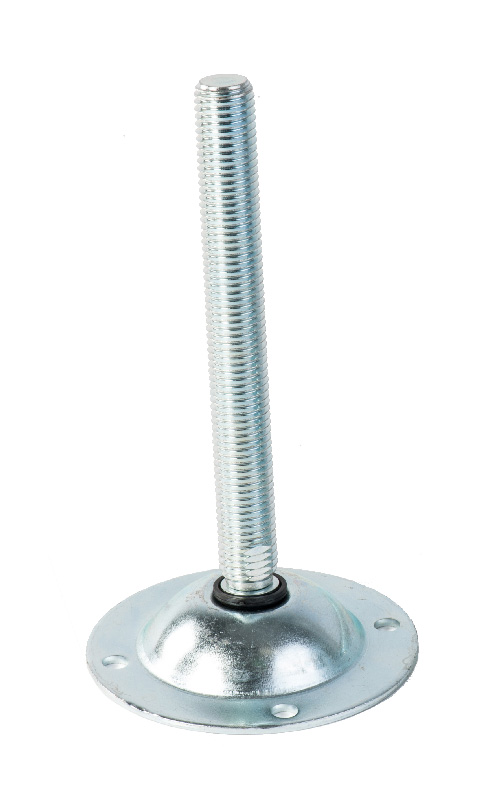

  • Click to enlarge image ET-ETX_1.jpg

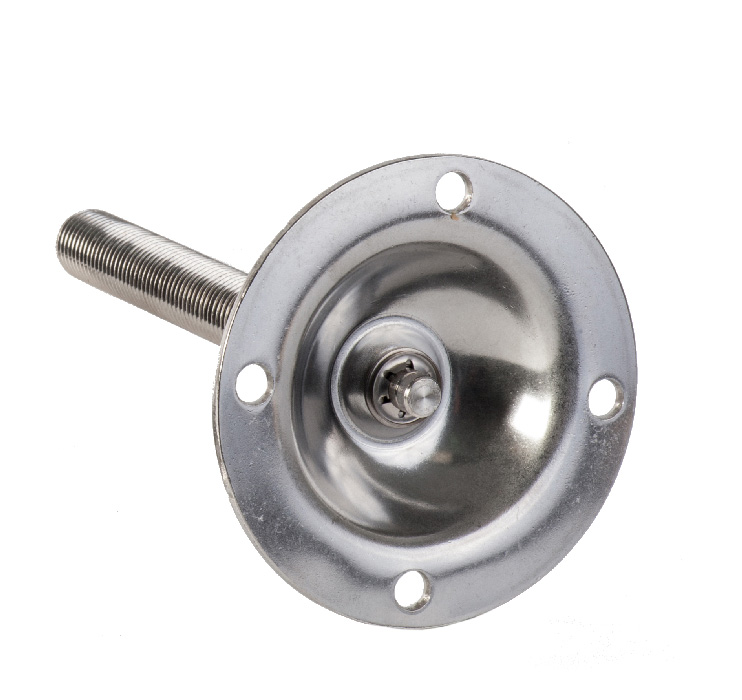

  • Click to enlarge image ET-ETX_2.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/compo/steel-levelling-line/et-etx-levelling-foot-with-steel-base.html#sigProIdb97dcc9bbf
Download Technical Sheet

Compo

Steel Base Levelling Line

ET -ETX
Levelling Foot with Steel Base

Product specification

BASE AND STUD MATERIAL:
Z = Zinc plated
X= Stainless steel AISI 304
BASE THICKNESS: S = 3,5 zinc - 3,0 stainless steel
SPINDLE TYPE: Revolving
PRODUCT PRESENTATION: Spindle assembled to the base

COD. A M B C D Spanner Base/Stud rD Max Load daN Q.ty
 A4ET16058  113  16MA  58  100  9  13  Z  95  1500 8
A4ETX16058  113  16MA  58  100  9  13  X  95  1000 8
 A4ET16119  113  16MA  119  161  9  13  Z  95  1500 8
 A4ETX16119  113  16MA  119  161  9  13  X  95  1000 8
 A4ET16145  113  16MA  145  187  9  13  Z  95  1500 8
 A4ETX16145  113  16MA  145  187  9  13  X  95  1000 8
 A4ET16201  113  16MA  201  243  9  13  Z  95  1500 8
 A4ETX16201  113  16MA  201  243  9  13  X  95  1000 8
 A4ET18157  113  18MA  157  199  9  15  Z  95  1500 8
 A4ETX18157  113  18MA  157  199  9  15  X  95  1000 8
 A4ET20107  113  20MA  107  152  9  17  Z  95  1500 8
 A4ETX20107  113  20MA  107  152  9  17  X  95  1000 8
 A4ET20135  113  20MA  135  180  9  17  Z  95  1500 8
 A4ETX20135  113  20MA  135  180  9  17  X  95  1000 8
 A4ET20157  113  20MA  157  202  9  17  Z  95  1500 8
 A4ETX20157  113  20MA  157  202  9  17  X  95  1000 8
 A4ET20190  113  20MA  190  235  9  17  Z  95  1500 8
 A4ETX20190  113  20MA  190  235  9  17  X  95  1000 8
 A4ET20238  113  20MA  238  283  9  17  Z  95  1500 8
 A4ETX20238  113  20MA  238  283  9  17  X  95  1000 8
 A4ET24090  113  24MA  90  138  9  19  Z  95  1500 8
 A4ETX24090  113  24MA  90  138  9  19  X  95  1000 8
 A4ET24127  113  24MA  127  175  9  19  Z  95  1500 8
 A4ETX24127  113  24MA  127  175  9  19  X  95  1000 8
 A4ET24162  113  24MA  162  210  9  19  Z  95  1500 8
 A4ETX24162  113  24MA  162  210  9  19  X  95  1000 8
 A4ET24202  113  24MA  202  250  9  19  Z  95  1500 8
 A4ETX24202  113  24MA  202  250  9  19  X  95  1000 8
 A4ET30125  113  30MA  125  173  9  24  Z  95  1500 8
 A4ETX30125  113  30MA  125  173  9  24  X  95  1000 8
 A4ET30185  113  30MA  185  233  9  24  Z  95  1500 8
 A4ETX30185  113  30MA  185  233  9  24  X  95  1000 8
