Compo

Steel Base Levelling Line

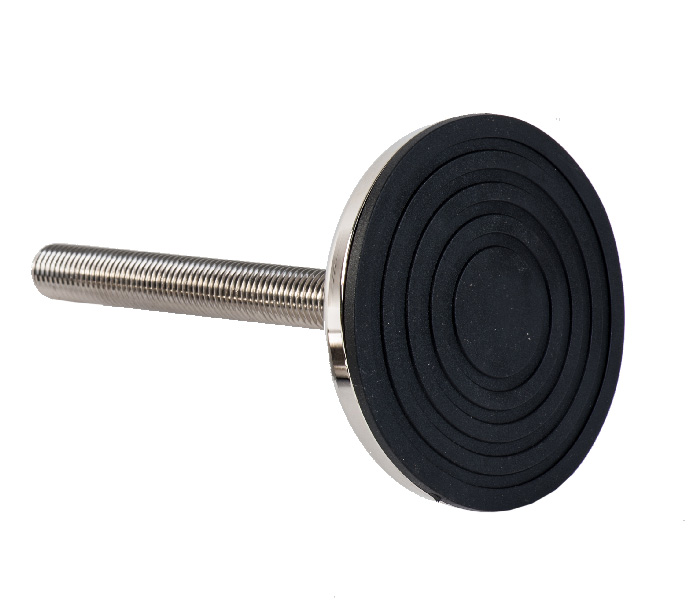

TN - TNX
Antivibration Mount with Nickel plated base 5800 kg

Product specification

BASE MATERIAL: Nickel plated steel
STUD MATERIAL: Z = Zinc plated X= Stainless steel AISI 304
Feet are completed with anti-slip pad made in soft PVC 68 shore black colour.
PRODUCT PRESENTATION: Spindle assembled to te base

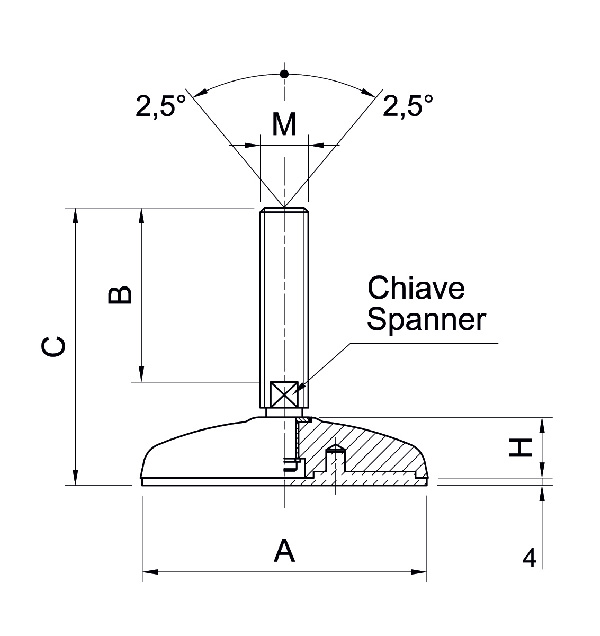

COD. A M B C H Spanner Max Load daN Stud Q.ty
A4TN16058 124 16MA 58 104 26 13 5500 Z  8
A4TNX16058 124 16MA 58 104 26 13 5500 X 8
A4TN16119 124 16MA 119 165 26 13 5500 Z 8
A4TNX16119 124 16MA 119 165 26 13 5500 X 8
A4TN16145 124 16MA 145 191 26 13 5500 Z 8
A4TNX16145 124 16MA 145 191 26 13 5500 X 8
A4TN16201 124 16MA 201 247 26 13 5500 Z 8
A4TNX16201 124 16MA 201 247 26 13 5500 X 8
A4TN18157 124 18MA 157 203 26 15 5500 Z 8
A4TNX18157 124 18MA 157 203 26 15 5500 X 8
A4TN20107 124 20MA 107 156 26 17 5600 Z 8
A4TNX20107 124 20MA 107 156 26 17 5600 X 8
A4TN20135 124 20MA 135 184 26 17 5600 Z 8
A4TNX20135 124 20MA 135 184 26 17 5600 X 8
A4TN20157 124 20MA 157 206 26 17 5600 Z 8
A4TNX20157 124 20MA 157 206 26 17 5600 X 8
A4TN20190 124 20MA 190 239 26 17 5600 Z 8
A4TNX20190 124 20MA 190 239 26 17 5600 X 8
A4TN20238 124 20MA 238 287 26 17 5600 Z 8
A4TNX20238 124 20MA 238 287 26 17 5600 X 8
A4TN24090 124 24MA 90 142 26 19 5700 Z 8
A4TNX24090 124 24MA 90 142 26 19 5700 X 8
A4TN24127 124 24MA 127 179 26 19 5700 Z 8
A4TNX24127 124 24MA 127 179 26 19 5700 X 8
A4TN24162 124 24MA 162 214 26 19 5700 Z 8
A4TNX24162 124 24MA 162 214 26 19 5700 X 8
A4TN24202 124 24MA 202 254 26 19 5700 Z 8
A4TNX24202 124 24MA 202 254 26 19 5700 X 8
A4TN30125 124 30MA 125 177 26 24 5800 Z 8
A4TNX30125 124 30MA 125 177 26 24 5800 X 8
A4TN30185 124 30MA 185 237 26 24 5800 Z 8
A4TNX30185 124 30MA 185 237 26 24 5800 X 8
