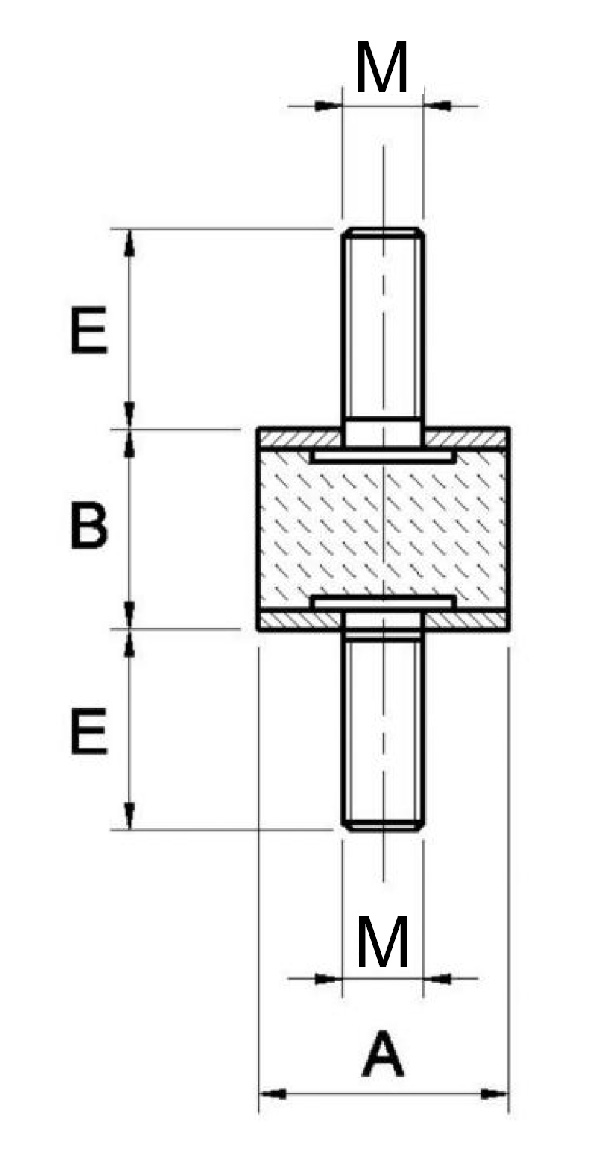

| COD. | A | B | M | E |
Max Compression Load |
Max Shear Load |
| A1MMX1515 | 15 | 15 | 04MA | 14 | 15 | 2 |
| A1MMX2015 | 20 | 15 | 06MA | 16 | 34 | 4 |
| A1MMX2520/6 | 25 | 20 | 06MA | 18 | 45 | 5 |
| A1MMX3015 | 30 | 15 | 08MA | 12 | 42 | 9 |
| A1MMX3015-14 | 30 | 15 | 08MA | 14 | 42 | 9 |
| A1MMX3030 | 30 | 30 | 08MA | 23 | 61 | 7 |
| A1MMX4030/8 | 40 | 30 | 08MA | 23 | 98 | 15 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/cylindrical-mountings/aisi-304-stainless-steel-double-male-cylindrical-mounting.html#sigProIdbf7ca9b776
https://getechsrl.com/en/products/flexo/cylindrical-mountings/aisi-304-stainless-steel-double-male-cylindrical-mounting.html#sigProIdbf7ca9b776
Flexo
Cylindrical Mountings
MMX

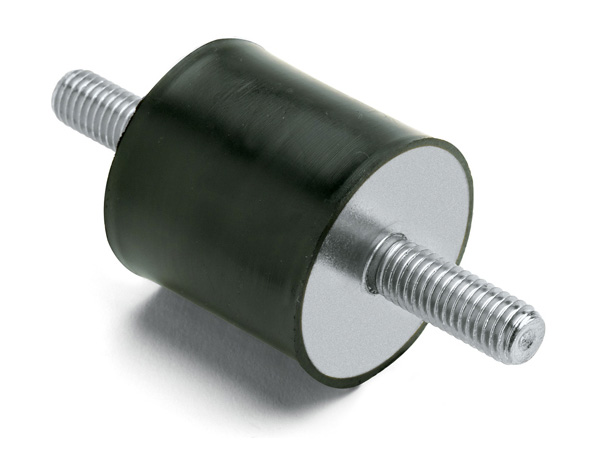

AISI 304 Stainless Steel Double Male Cylindrical Mounting
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths
METALLIC PART: Stainless steel screw and washer AISI 304
STANDARD THREAD: Screw pressed on the washer
