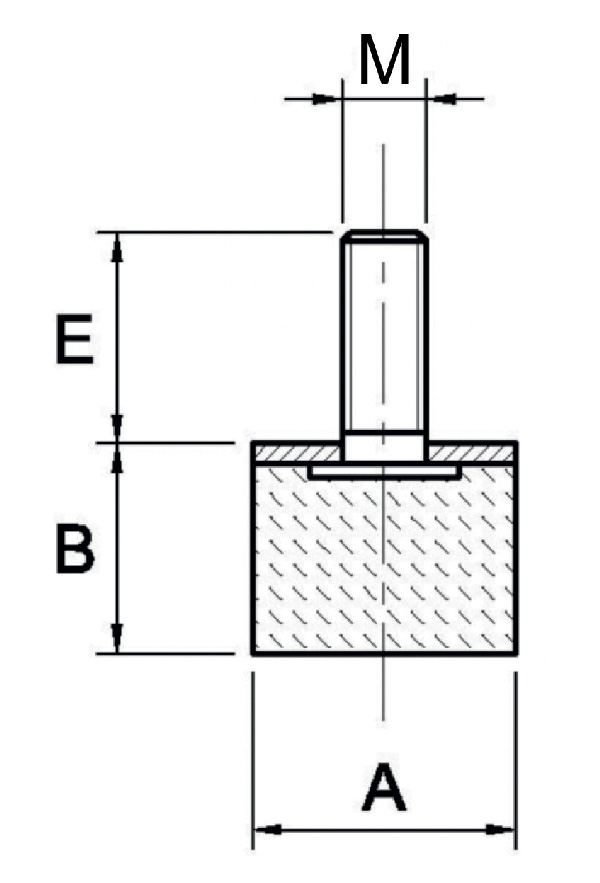

| COD. | A | B | M | E | Max Compression Load daN |
| A1PMX1515 | 15 | 15 | 04MA | 14 | 15 |
| A1PMX2015 | 20 | 15 | 06MA | 16 | 34 |
| A1PMX2520/6 | 25 | 20 | 06MA | 18 | 45 |
| A1PMX3030 | 30 | 30 | 08MA | 23 | 61 |
| A1PMX4030/8 | 40 | 30 | 08MA | 23 | 98 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/flexo/cylindrical-mountings/pmx-aisi-304-stainless-steel-male-footing.html#sigProIdd7e8dfae1f
https://getechsrl.com/en/products/flexo/cylindrical-mountings/pmx-aisi-304-stainless-steel-male-footing.html#sigProIdd7e8dfae1f
Flexo
Cylindrical Mountings
PMX

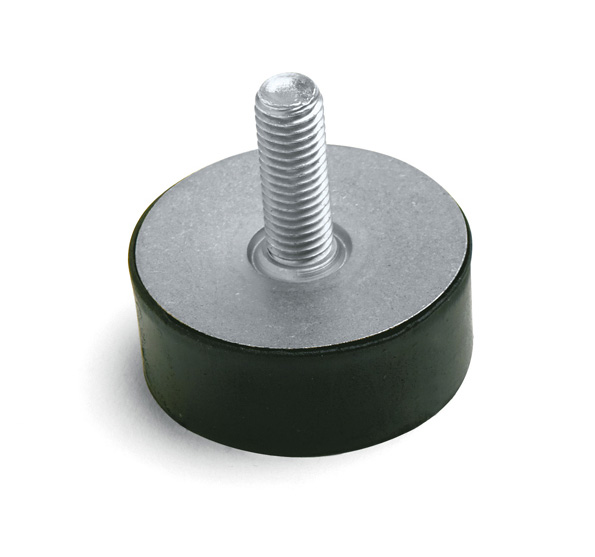

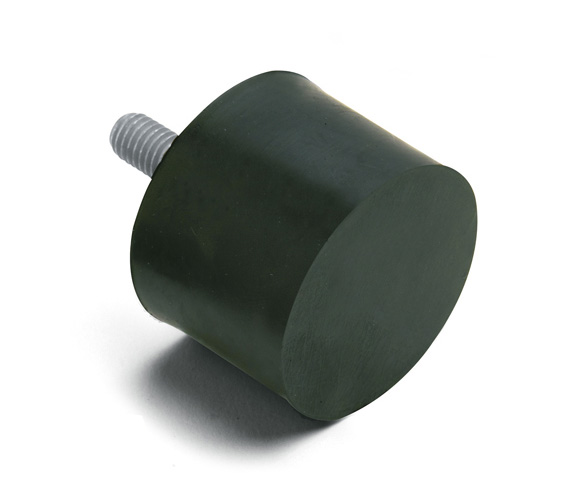

AISI 304 Stainless Steel Male Footing
Product specification
MAIN PART MATERIAL: NR/SBR rubber compound
STANDARD HARDNESS: 60 shore A
HARDNESS TOLERANCE: +/- 5 SH
ON REQUEST: Different screw lengths
METALLIC PART: Stainless steel screw and washer AISI 304
STANDARD THREAD: Screw pressed on the washer
