| Code | Code INOX | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | Fh1 (daN) | Fh2 (daN) | gr |
| 2S.V130/AL | 2S.V130/ALX | 85 | 142 | 28 | 50 | 42 | 35 | 27-29 | 12,5-19 | 6,2 | 16 | 2,5 | 28 | M6 | 5,6 | 105 | 175 | 275 | |
| 2S.V230/AL | 2S.V230/ALX | 110,5 | 168 | 33,5 | 67,5 | 45 | 43 | 32 | 18-21 | 8,5 | 18 | 3 | 40 | M8 | 6,7 | 200 | 320 | 380 | |
| 2S.V130/EL | 2S.V130/ELX | 86 | 142 | 28 | 51 | 42 | 35 | 27-29 | 12,5-19 | 5 | 16 | 2,5 | M6 | 5,6 | 105 | 175 | 280 | ||
| 2S.V230/EL | 2S.V230/ELX | 112 | 168 | 33,5 | 69 | 45 | 43 | 32 | 18-21 | 6 | 18 | 3 | M8 | 6,7 | 200 | 320 | 390 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/al-el-vertical-toggle-clamps-with-folded-base-and-with-anti-realease-lever.html#sigProId2f61a00131
https://getechsrl.com/en/products/hyrax/toggle-clamps/al-el-vertical-toggle-clamps-with-folded-base-and-with-anti-realease-lever.html#sigProId2f61a00131
Hyrax - Outlet
Toggle Clamps
AL - EL
Vertical Toggle Clamps with Folded Base and with Anti-realease Lever
AISI 304 stainless steel items indicated with an 'X' in their coding (e.g. 2S.V130/ALX)
Features and applications

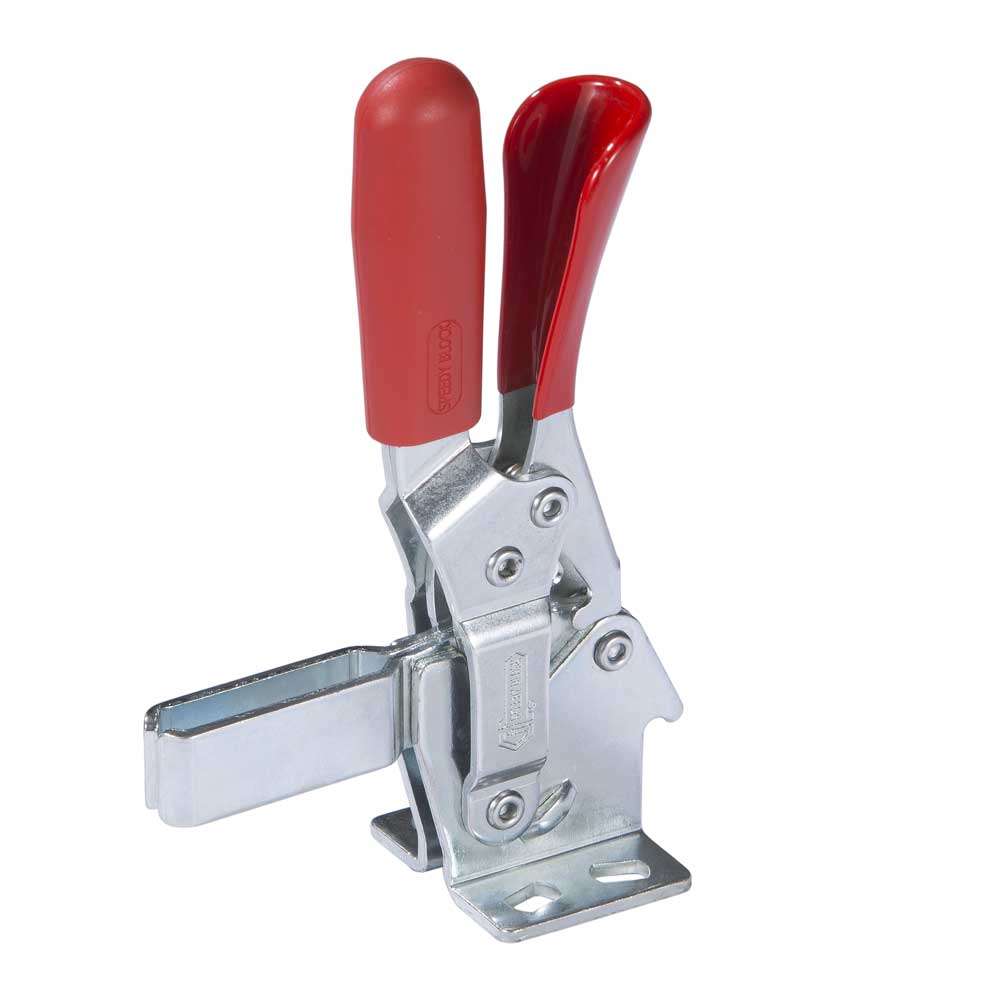

The main feature that makes these clamps different compared to the others in the line is the special anti-release lever with the purpose of avoiding any accidental openings caused by vibrations. Thanks to the special design of the item the operator's fingers are protected from accidents while opening the lever.
In general, in case of vertical toggle clamps a lower power input results in a high clamping force. Thanks to this, vertical toggle clamps have one of the most versatile applications in the industrial field. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses.
A special grease is placed between two contacting surfaces during assembly.
Fields of application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering.
Material: Galvanized steel or AISI 304 stainless steel
Riveted pivots: Galvanized steel or AISI 304 stainless steel
Supporting bushes: Hardened and ground steel (for sizes >=130)
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
Performance:

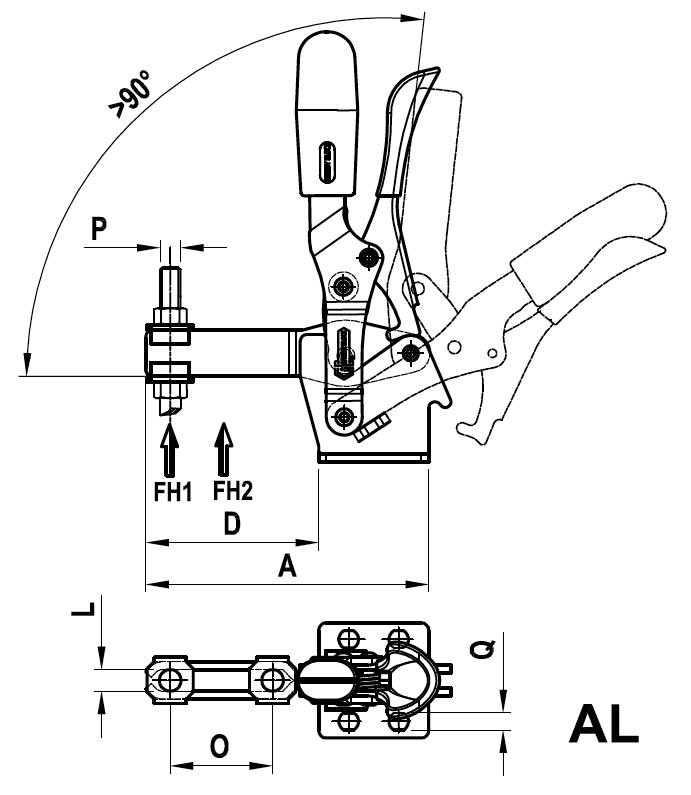

Form AL and Form ALX with open clamping lever and two flanged washers.

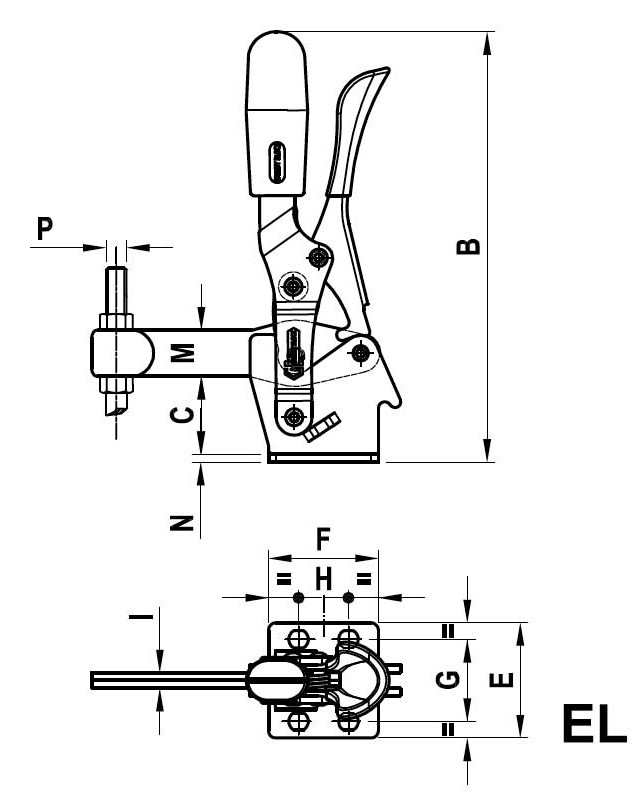

Form EL and Form ELX with full clamping lever and bolt retainers to be welded in the desired position and angle.
