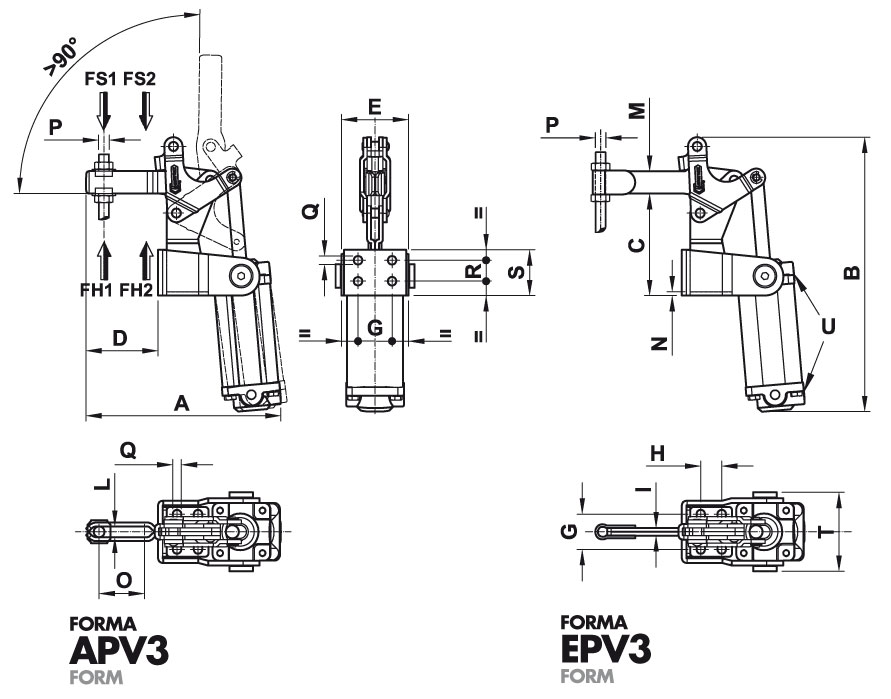

| Code | A | B | C | D | E | G | H | I | L | M | N | O | P | Q | R | S | T | U | Fh1 (daN) | Fh2 (daN) | Fs1 (daN) | Fs2 (daN) | gr |
| 2S.P200/APV3 | 149 | 210 | 77 | 55 | 51 | 26 | 16 | 8,5 | 17 | 3 | 34 | M8 | 6,5 | 16 | 35 | 59,5 | 1/8" | 160 | 250 | 90 | 150 | 1200 | |
| 2S.P300/APV3 | 186 | 258 | 108 | 71 | 60,5 | 30 | 28 | 10,3 | 20 | 3 | 42 | M10 | 8,5 | 30 | 50 | 68,5 | 1/4" | 240 | 370 | 120 | 240 | 2450 | |
| 2S.P200/EPV3 | 151 | 210 | 77 | 57 | 51 | 26 | 16 | 6 | 17 | 3 | M8 | 6,5 | 16 | 35 | 59,5 | 1/8" | 160 | 250 | 90 | 150 | 1200 | ||
| 2S.P300/EPV3 | 187,5 | 258 | 108 | 72,5 | 60,5 | 30 | 28 | 8 | 20 | 3 | M10 | 8,5 | 30 | 50 | 68,5 | 1/4" | 240 | 370 | 120 | 240 | 2450 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/apv3-epv3-pneumatic-toggle-clamp.html#sigProId6bcd703381
https://getechsrl.com/en/products/hyrax/toggle-clamps/apv3-epv3-pneumatic-toggle-clamp.html#sigProId6bcd703381
Hyrax - Outlet
Toggle Clamps

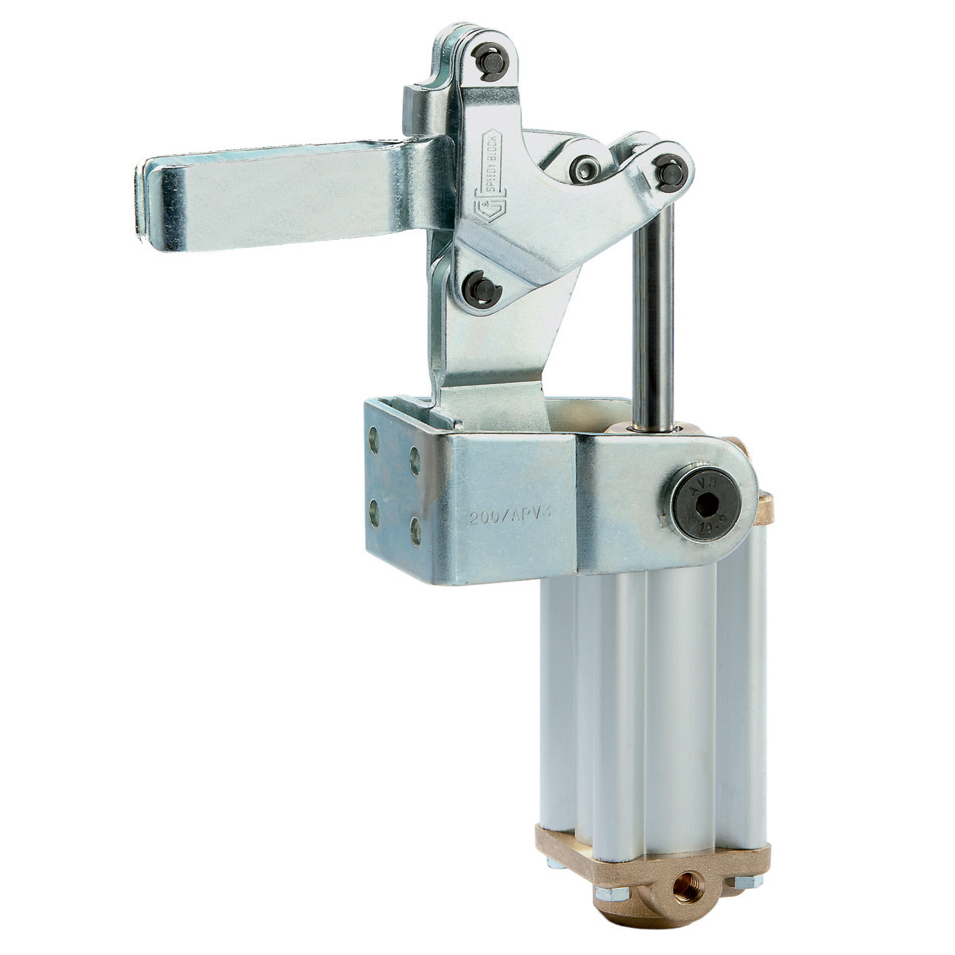

APV3 - EPV3
Pneumatic Toggle Clamp
Features and applications
The pneumatic series can offer increased productivity with a safe and automatic operation by combining the design of the hand-operated tools and the power of air pressure. Apart from the high load capacity there are several advantages of pneumatic toggle clamps:
- Constant clamping force (FS) - independent of the operation
- Possibility of the operation of several devices at the same time
- Possibility of the activation from various points - remote control could be performed by machines.
- Different versions are available with magnetic cylinders that allow contactless positioning control to obtain electrical command pulses in particular tightening situations.
The clamp remain closed even in the case of loss of air pressure.
The manually operated equivalent of this item is in our Vertical series (see Vertical Toggle Clamp with Folded and Front Base Form AV Form EV)
Recommendations
We recommend using a filter-reducer-lubricator group for a long and smooth operation of the cylinder, while for a long duration of the mechanical components we recommend using suitable flow regulators and calibrating the speed of the motions desired, starting from a low speed and gradually increasing this speed.
A special grease is placed between two contacting surfaces during assembly.
Material: Sheet metal and galvanized steel riveted pivots. Hardened and ground steel rotation pivots.
Performance:
Form APV3 with open clamping lever and two flanged washers.
Form EPV3 with full clamping lever and bolt retainers.
Cylinder: Maximum operating pressure 6 bar. Maximum operating temperature 80°C.
The 2S.AAU460 model proximity switch is used for detecting the position for sizes 200 and 300; model 2S.AAU450 is used for size 400. The proximity switches must be ordered separately! (See Accessories)
Spindles: To be ordered separately
